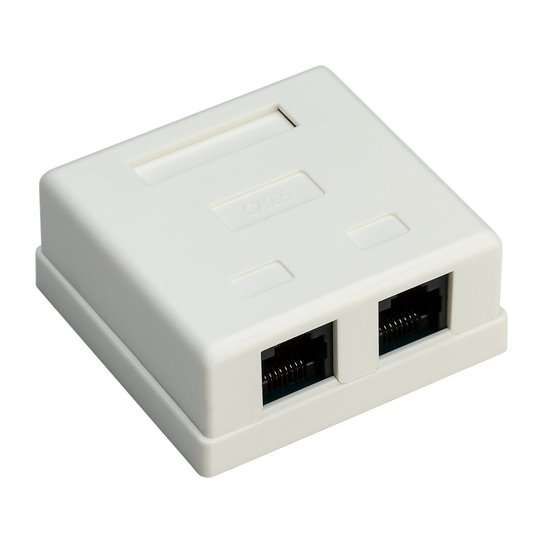

Goobay 2-Port RJ45 CAT 6 UTP Surface Mount Installation Box - White
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Our patch panels have a robust housing with shielded slots for an excellent connection. Simply select the module with the required number of ports to easily connect all your Ethernet cables to the network patch panel. Goobay always provides the perfect products for your network needs. Simply. All. You need!
Features

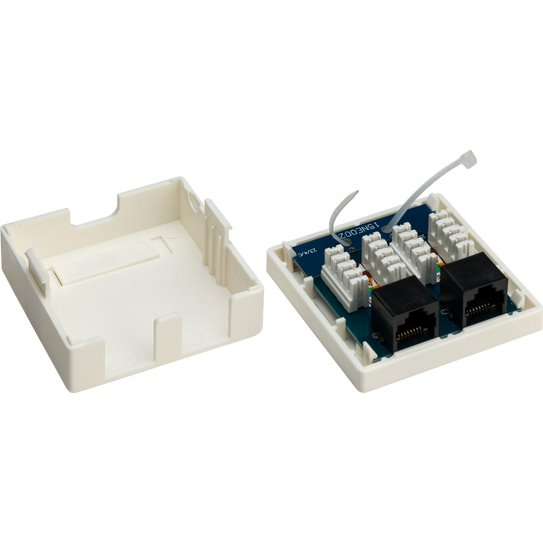

-For tool-free assembly by solderless, screwless and stripping-free connection technology IDC mounting)
-Patch panel incl. fixing screws for mounting on wall and desktop
-CAT 6 distributor for cable diameters of up to 7.0 mm (AWG 22-24)
-With a clear plastic display to label the individual connections for a perfect cable management.
-Terminal strips with colour coding according to TIA 568B for an easy and correct connection
-2-port patch panel with RJ45 socket for connecting an terminated CAT 6 network cable
Technical Specifications
Connections
-Connection, type: 2x RJ45 female (8P8C)
-Connection 2, type: for IDC connection (toolless)
-Connection, type: 2x RJ45 female (8P8C)
Device connections
-Device Connections: 2
Cable
-Specification: CAT 6
-Shielding class: UTP
-AWG: 24-22
Signal transmission
-max. bandwidth: 250 MHz
General
-Color: white
-Packaging type: Bulk
Dimensions / Weight
-Width: 62.2 mm
-Height: 59.8 mm
-depth: 26.5 mm
-Consumption Unit: 1 pc. in polybag
