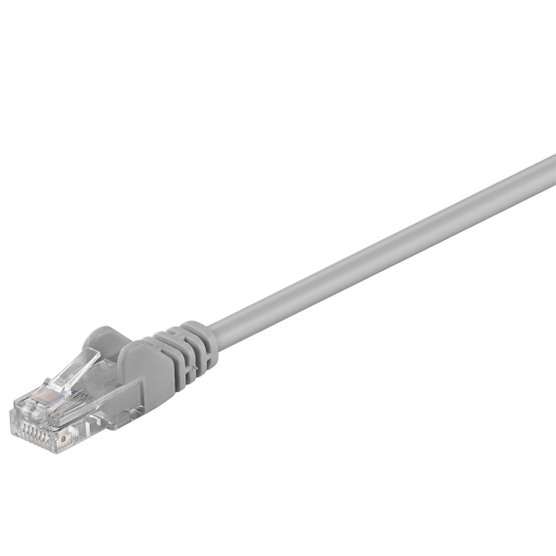

Goobay CAT 5e U/UTP 1m Patch Cable - Grey

copper-clad aluminium wire (CCA)

Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

Features
-Prewired, unshielded LAN cable with 2x RJ45 plugs for connecting network components
-High-quality copper-clad aluminium wire (CCA) and gold-plated contacts guarantee an excellent, powerful network connection.
-Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
-Bend protection and a sturdy PVC jacket effectively protect the Ethernet cable from breakage.
-Length of the network cable indicated on the overmoulded slimline strain relief.
-Network connector: pair sequence according to EIA/TIA 568B
-CAT 5e network cable suitable for Gigabit Ethernet with speeds of up to 10/100/1000 Mbit/s

Technical Specifications

Connections
Connection, type: RJ45 male (8P8C)
Connection 2, type: RJ45 male (8P8C)
Kink protection: both sides
Latch protection: both sides
Connection, shielding: no
Contacting: EIA/TIA-568B

Cable
Specification: CAT 5e
Cable type: round cable
Shielding class: U/UTP
AWG: 28/7 (stranded)
Inner conductor material: CCA (copper-clad aluminium)
Material cable sheath: PVC
Cable sheath diameter (approx.): 4.5 mm
bending radius: >36.8 mm
Cable length: 1 m

Signal transmission
max. bandwidth: 100 MHz

General
Markings: WEEE, CE
Color: grey
Special feature: Length indication on connector
Operating temperature from: -20 °C
Operating temperature up to: 60 °C
Packaging type: Bulk
