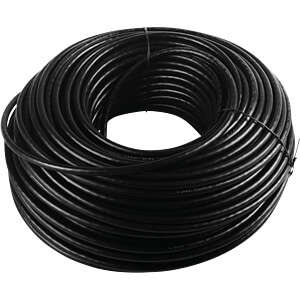

Goobay CAT 6 Outdoor CU Solid PE U/UTP 305m Network Cable Set - Black

Copper conductor (CU), AWG 24/1 (solid), double-layer cable jacket (PE)

The Goobay network cable is ideal for outdoor use, e.g. in the garden, for camping, on building facades and for connecting surveillance cameras. The stable cable sheath made of polyethylene is extremely resistant to weathering and UV radiation.

Features

-Internet cable set comprising 1x CAT-6 LAN cable, 1x crimping tool, 100x coloured cable ties and 100x RJ45 plugs.
-Unshielded twisted pair LAN cable for outdoor assembly with a maximum transmission length of 50 m
-Double polyethylene outer sheath (PE) protects the network cable outdoors and makes it extremely weather-resistant.
-The Ethernet cable is ideal for use on building facades and surveillance cameras.
-Unterminated patch cable for assembly and installation with IDC connection technology. No approval for permanent installation in buildings.
-High-quality copper conductor (CU) guarantees an excellent and powerful network connection.
-CAT 6 outdoor cable is suitable for Gigabit Ethernet 10/100/1000 Mbit/s.

Technical specifications

Cable
-Specification: CAT 6
-Diameter of insulated conductor: 0.86 mm (+/-0.05)
-Cable type: outdoor cable
-Cable length: 305 m

Meter scaling
-Inner conductor material: CU (copper)
-AWG: 24/1 (solid)
-Cable sheath diameter (approx.): 6 mm
-Shielding class: U/UTP
-Fire class (CPR): Fca
-Material cable sheath: PE

Signal transmission
-usable up to cable length: 70 m
-Impedance: 100 O
-max. bandwidth: 250 MHz

General
-Color: black
-Markings: CE
-Operating temperature from: -20 ?C
-Operating temperature up to: 75 ?C
-Packaging type: Brown Box with Label
