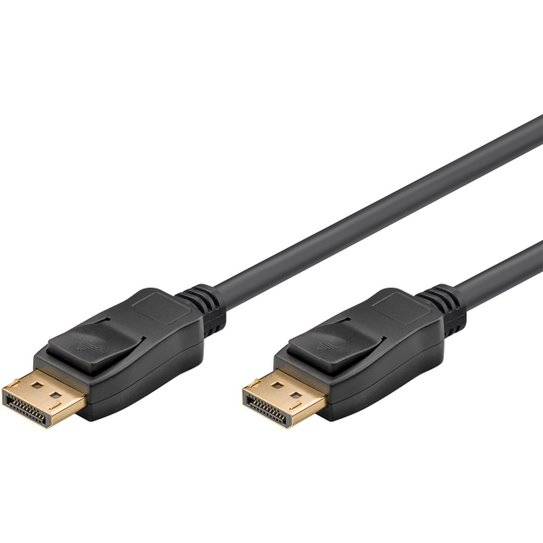

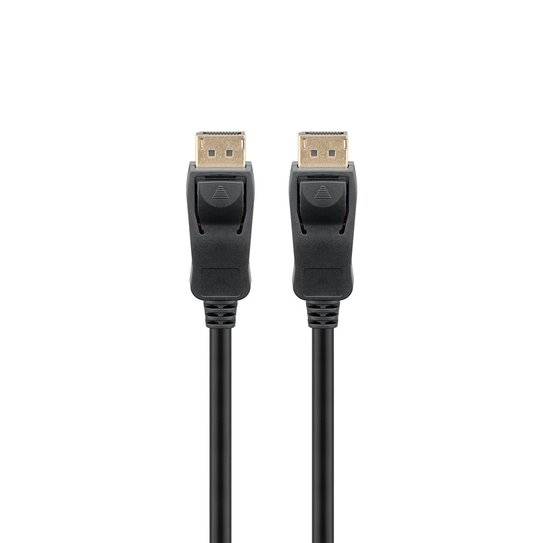

DisplayPort male > DisplayPort male, 8K @ 60Hz
Goobay provides the perfect electronic accessories to connect your consumer electronics. Our products transmit top-quality signals for a razor-sharp picture and excellent sound. The robust construction and high-quality materials of our connection cables and plugs create a perfect entertainment experience. Simply. All. You need!
Features
-High-resolution signal transmission with up to 8K @ 60 Hz (4320p)
-Connection cable with max. transmission rate of up to 32.4 Gbit/s
-8K cable especially for gaming. Smooth images without judder thanks to high refresh rates of up to 240 Hz (depending on graphics card and monitor).
-Gold-plated DisplayPort plugs and advanced technology guarantee perfect signal transmission, clear sound, razor-sharp video and picture quality
-The DisplayPort cable transmits high-resolution video signals and HD audio signals, e.g. from a computer or laptop to a screen or projector.

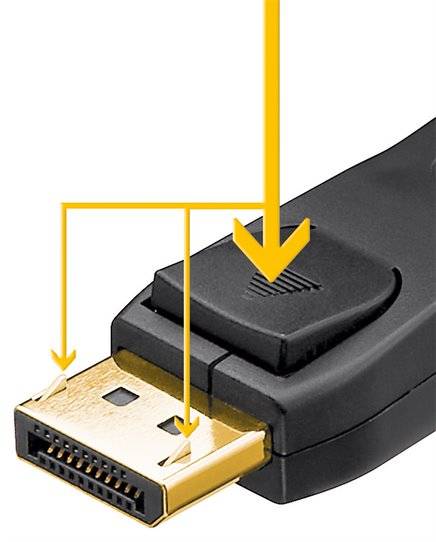

-Plug lock ensures a secure hold without loose contacts and is easy to unlock via the push-button.
-To avoid short-circuit damage, pin 20 is not connected (no power supply).
Technical specifications
Connections
Connection, contact material: gold-plated
Connection, housing material: ABS
Connection, length: 47 mm
Connection, width: 20 mm
Connection, height: 12 mm
Connection 2, length: 47 mm
Connection 2, width: 20 mm
Connection 2, height: 12 mm
Connection, type: DisplayPort male
Connection 2, type: DisplayPort male
Kink protection: both sides
Performance
DP 1.4
Cable
Cable type: round cable
Inner conductor material: CU (copper)
AWG: 30
Number of shieldings: 2 x
Material cable sheath: PVC
Cable length: 5 m
Signal transmission
max. transmission rate: 32.4 Gbit/s
supported colorspaces: True Color (24 Bit), Deep Color (30 Bit)
Supported video standards: 8K Ultra HD 4320p (60 Hz), 4K Ultra HD 2160p (120 Hz), Full HD 1080p (240 Hz)
other supported standards: HDCP 2.2
General
DP 1.4
Color: black
Packaging type: Bulk
