for toggling between 3x HDMI™ devices connected to 1x HDMI™ display
With the HDMI™ switch, you can conveniently switch between 3x different HDMI™ devices connected to only 1x HDMI™ display at the touch of a button. You avoid the hassle of reconnecting cables while also protecting the connections. Thanks to its compact size, the HDMI™ switch integrates discreetly into your living area.
Features
-The HDMI™ switch allows for simultaneously connecting up to 3x HDMI™ source devices to 1x HDMI™ output device.
-The HDMI™ switcher 3 in 1 out supports up to 4K @ 60 Hz and is HDCP-compliant.
-The HDMI™ switch with pigtail cable automatically switches to the enabled device when multiple HDMI™ sources are connected.

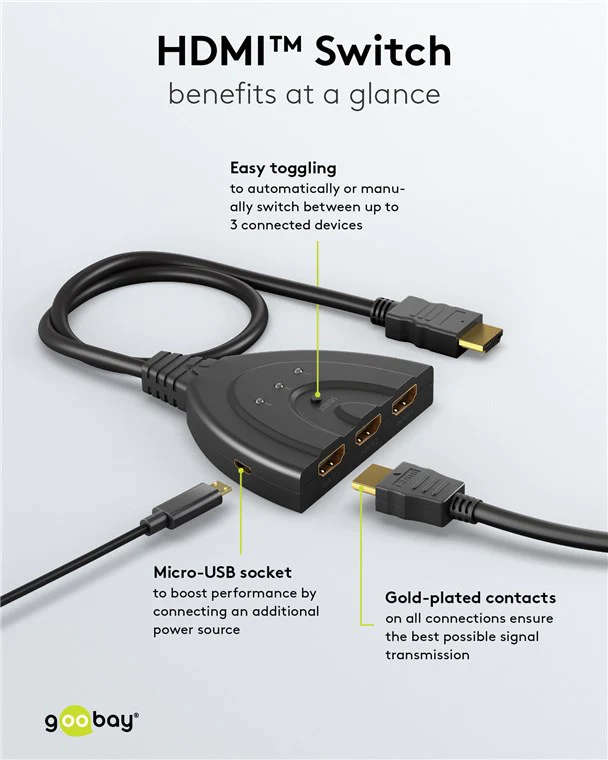

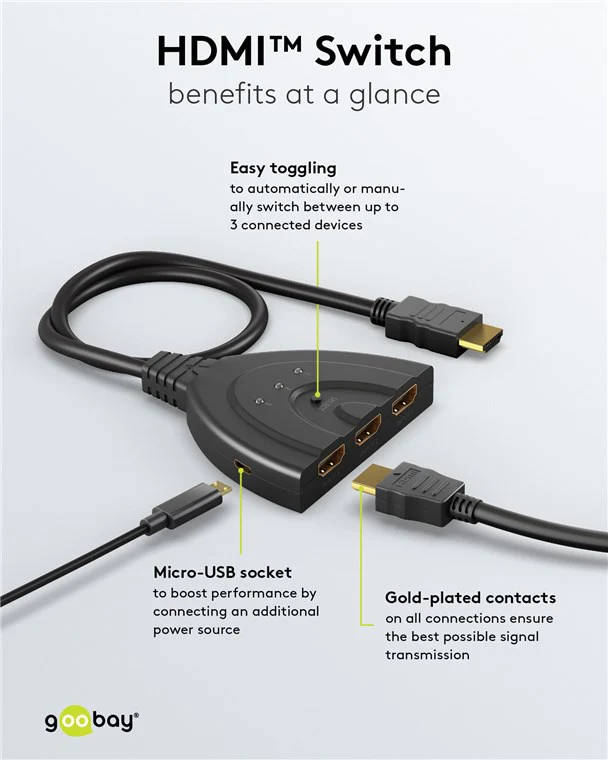

-You can also opt for manual toggling between port 1 to 3 via the switch on top.
-Suitable for connecting e.g. Blu-ray players, DVD players, SAT/TV receivers, computers, tablets, game consoles such as PS4 or Xbox to a TV, monitor or projector
-Plug & Play allows for an easy connection without the need to install additional drivers
-The HDMI™ switchbox 3x1 is powered via the connected HDMI™ device, either without an external power supply or via the Micro-USB socket.
Technical specifications
Labelling
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Device connections

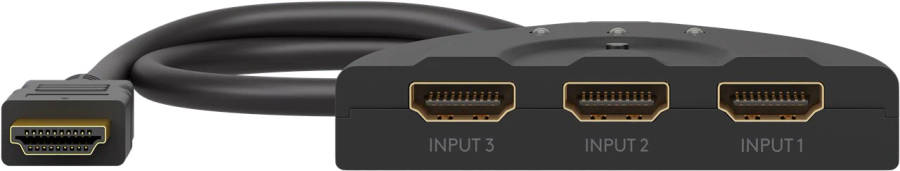

Input, type: 3 HDMI™ female (Type A)
Output, type: HDMI™ female (Type A)
Cable
Cable length: 0.55 m
Signal transmission
max. transmission rate: 18 Gbit/s, 4K Ultra HD 2160p (60 Hz)
bidirectional
supported colorspaces: Deep Color (10 Bit)
Supported video standards:
4K Ultra HD 2160p (60 Hz), 4K Ultra HD 2160p (30 Hz), Full HD 1080p (60 Hz), Full HD 1080i (60 Hz), 3D, HDCP
Dimensions / Weight
Length: 115.5 mm
Width: 107 mm
Height: 19 mm
Weight: 107 g
