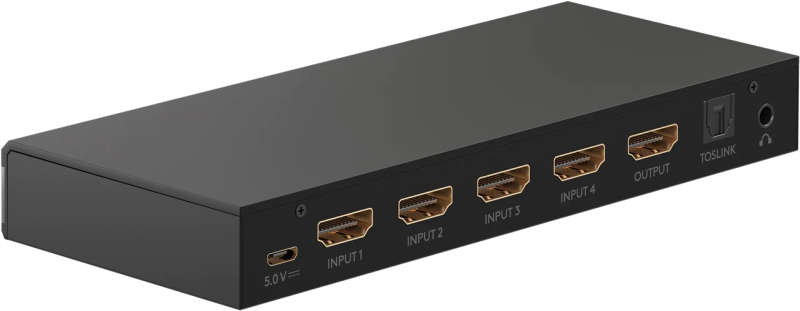

for toggling between 4x HDMI™ devices connected to 1x HDMI™ display
With the HDMI™ switch box, you can conveniently switch between up to 4x HDMI™ devices connected to only 1x HDMI™ display at the touch of a button or with the remote control. You avoid the hassle of reconnecting cables while also protecting the connections. Connecting only one cable to the display, the switch reduces cable clutter and creates a clean look.
Features
-The HDMI™ switch allows for simultaneously connecting up to 4x HDMI™ source devices to 1x HDMI™ output device.
-Easily connect audio devices such as a hi-fi system or headphones via the 3.5 mm jack or the TOSLINK connection on the HDMI™ switcher.
-Conveniently switch ports via the button on the front of the HDMI™ switch box or via remote control (included).
-The HDMI™ extender 4 in 1 out can discreetly be placed behind furniture thanks to its slim design.
-Suitable e.g. for connecting Blu-ray players, DVD players, SAT/TV receivers, game consoles such as PS4 or Xbox to a TV, projector or monitor.
Technical specifications
Labelling
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Connections
Connection, type: HDMI™ female (Type A)
Connection 2, type: Toslink male
Connection 3, type: Jack 3.5 mm socket (3-pin, stereo)
Device connections
Input, type: 4 HDMI™ female (Type A)
Output, type: HDMI™ female (Type A)
Output 2, type: Toslink male
Output 3, type: 3.5 mm female (3-pin, stereo)
Signal transmission
max. transmission rate: 18 Gbit/s, 4K Ultra HD 2160p (60 Hz)
other supported standards: HDCP 2.2, HDCP 1.4
Supported video standards: 4K Ultra HD 2160p (60 Hz), 4K Ultra HD 2160p (30 Hz), Full HD 1080p (60 Hz), Full HD 1080i (60 Hz), 3D, HDCP, HDCP 2.2
unidirectional
supported audio standards: Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Enhanced Audio Return Channel (eARC), Audio Return Channel (ARC)
Dimensions / Weight
Length: 165 mm
Width: 70 mm
Height: 20 mm
Weight: 243 g
