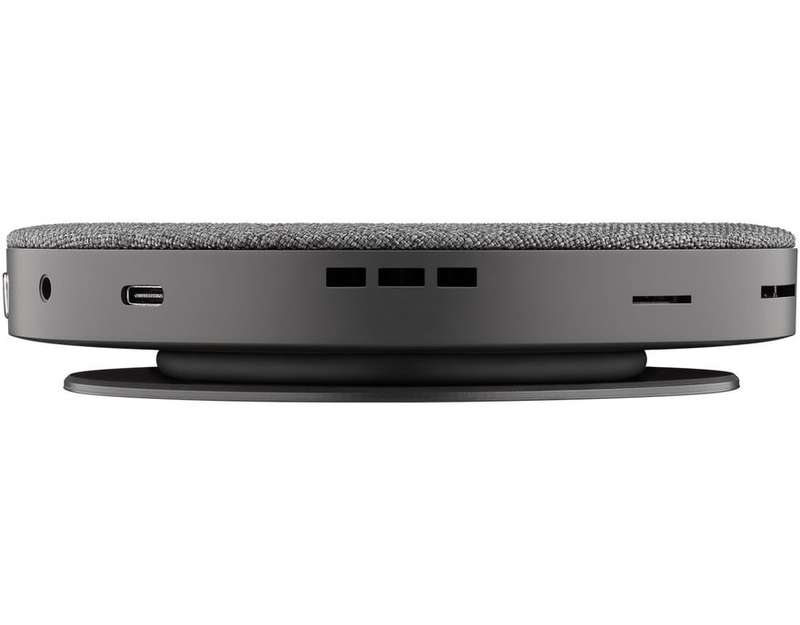

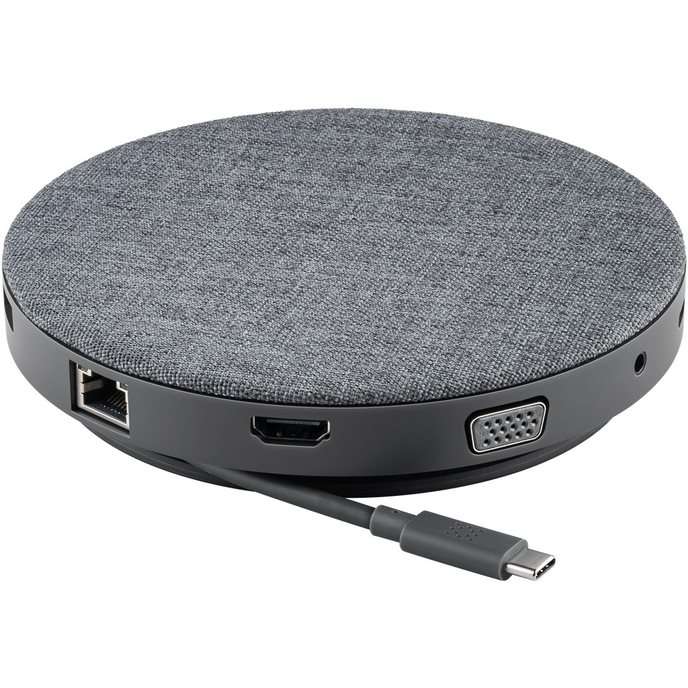

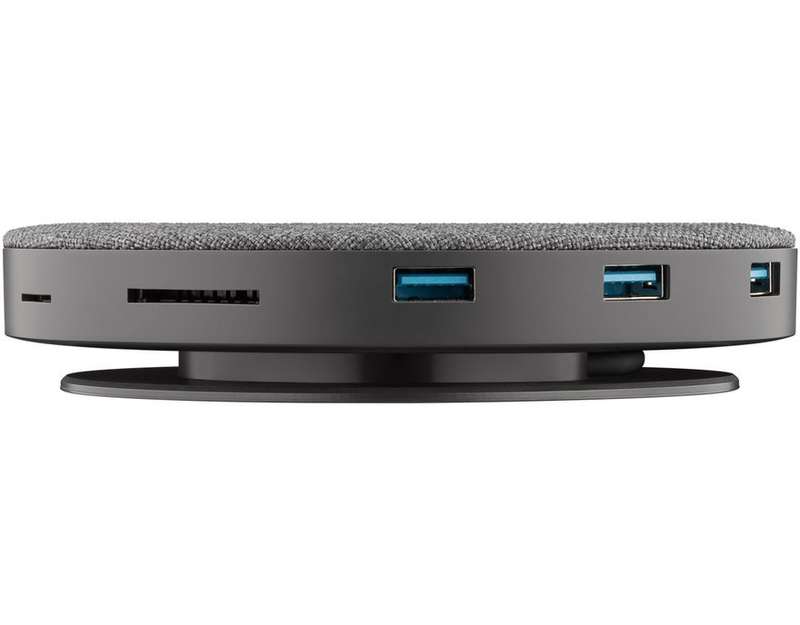

The USB-C™ Multiport Dock adds 3 USB A 3.0 ports, a MicroSD & SD card reader, a 4K HDMI™ port, a VGA port, a RJ45 Gigabit Ethernet port & a 3.5 mm audio port to a USB-C™ port.

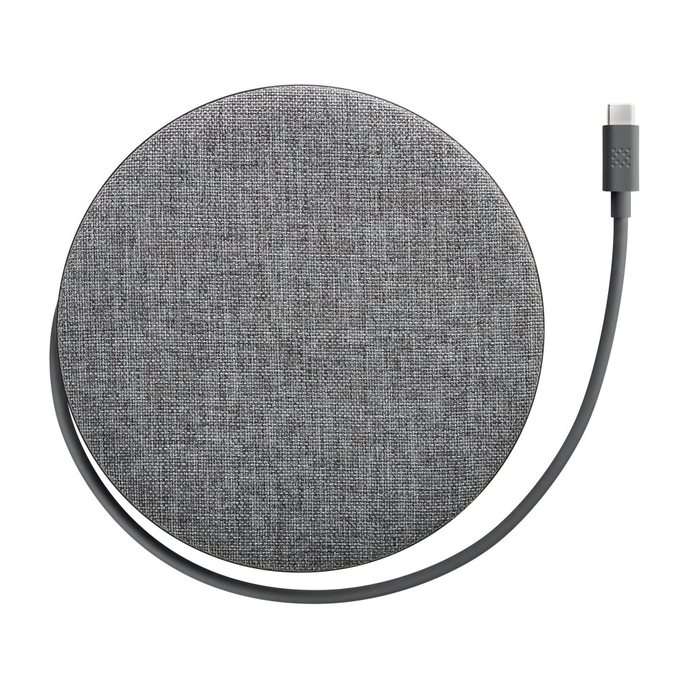

The wireless quick-charging function with a power of up to 10 W is hidden under a noble fabric decoration and is supported by a fan, which switches on and off automatically. Additionally, the Multiport Dock offers the possibility to charge end devices with up to 100 W via the USB-C™ port. Its compact size makes it the perfect companion for the office or home office. We recommend using an extra 60W power delivery adapter, as the hub requires 15W for each interface function.
Features:
-Function: The USB-C™ Multiport Dock converts signals from USB-C™ to the most common connectors and is therefore the perfect all-in-one solution for USB-C™ devices.

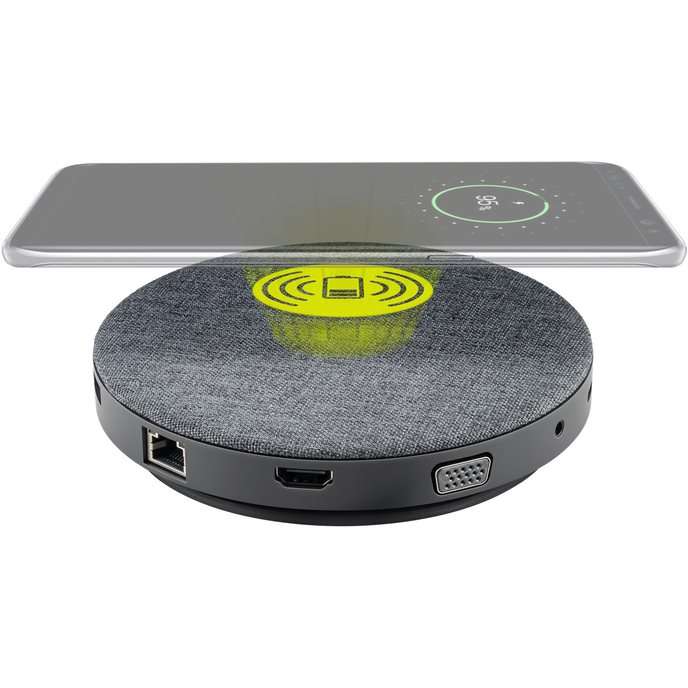

-Wireless Fast Charging: Smartphones with inductive charging function are charged with up to 10 watts - suitable for all wireless charging compatible iPhones, among others.
-Power supply: 100 W Power Delivery enables charging of end devices with a very high power of up to 100 watts. Thus, for example, large notebooks, hubs or docking stations can be charged without problems.

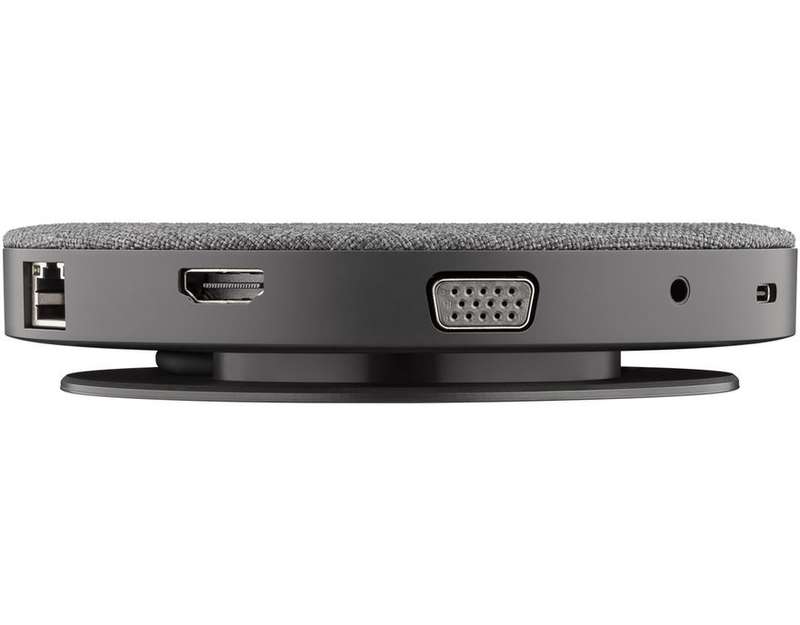

-Video quality: The USB-C™ Multiport Dock supports up to 1920 x 1200 @ 60 Hz for VGA screen resolutions and up to 4k x 2k @ 30 Hz for HDMI™ Allows simultaneous use of HDMI™ & VGA.
-Network autonegotiation: RJ45 Ethernet connection supports networks with 10/100/1000 Mbps and automatically detects the maximum possible transmission speed thanks to the auto function.

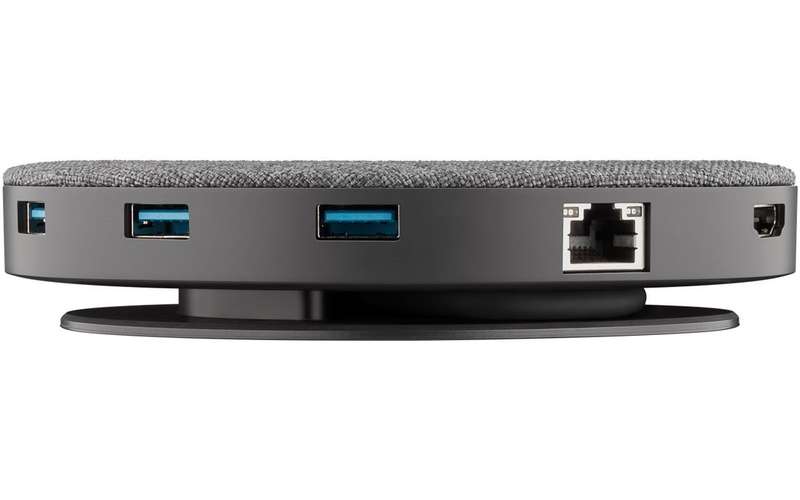

-Data transmission: Integrated card reader enables reading from SD and MicroSD cards. Additionally, three USB A 3.0 ports with a super fast data transfer rate of up to 5 Gbps have been installed.
-Usage: Suitable for the MacBook, MacBook Pro, Dell XPS 13, Honor V20, iPhone, Xiaomi Air13, Huawei Mate 10 Pro, Mate 20 Pro, Huawei P30 and many other devices with USB-C™ connection.
Technical specifications
Performance
Data reading speed: 480 MB/s
Data writing speed: 480 MB/s
Device connections
Input, type: USB-C™ connector
Output 2, type: HDMI™ port (type A)
Output, type: 3 USB 3.0 female (Type A)
Output 3, type: VGA female HD (15-pin)
Output 4, type: RJ45 female (8P8C)
Input current: 5.0 A
Cable

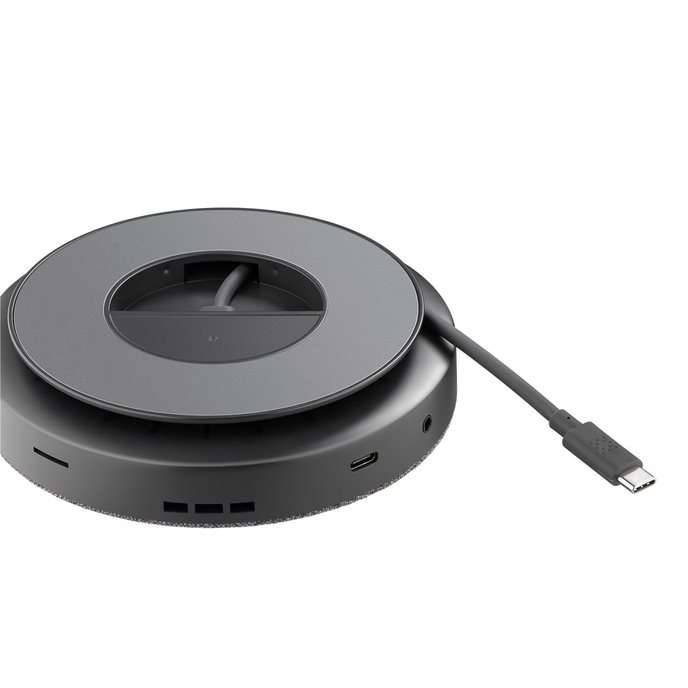

Cable length: 0.6 m
Signal transmission
max. transmission rate: 5 Gbit/s
General
Color: grey
Material: TPE (no-fire retardant), fabric, ABS, PC
Operating temperature from: 0 °C
Operating temperature up to: 40 °C
Packaging type: Retail Box
Dimensions / Weight
Height: 29 mm
Diameter: 136.9 mm
Weight: 221.5 g
