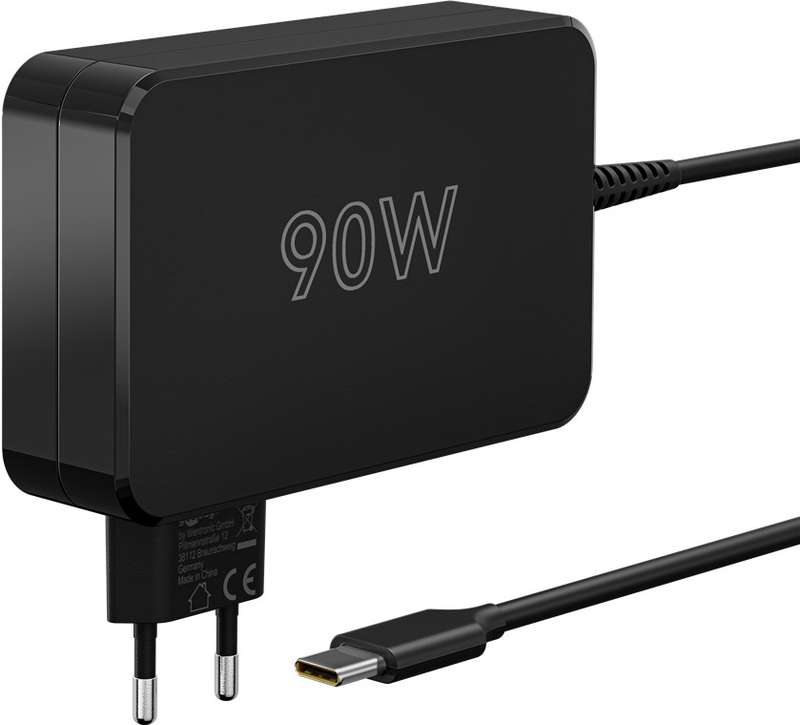

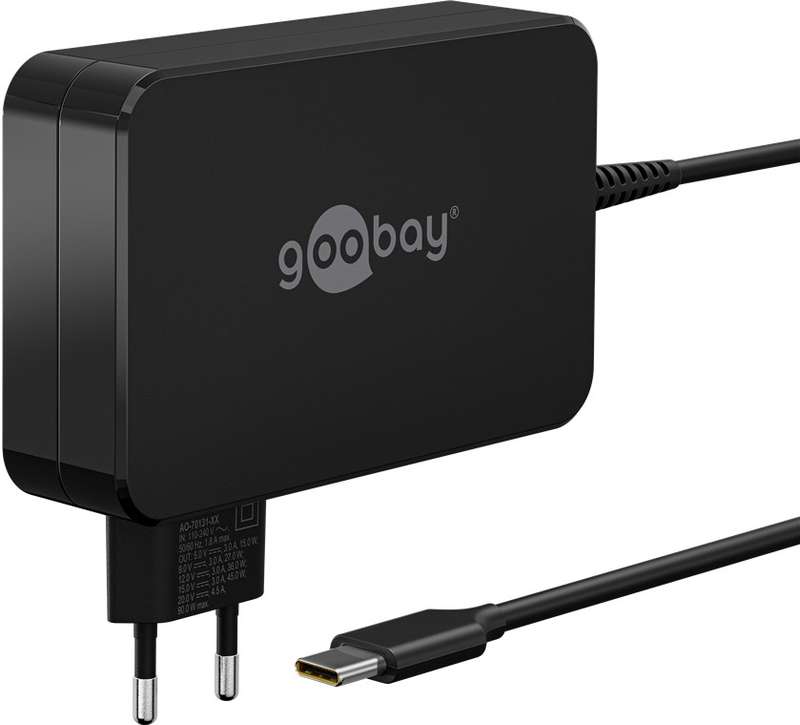

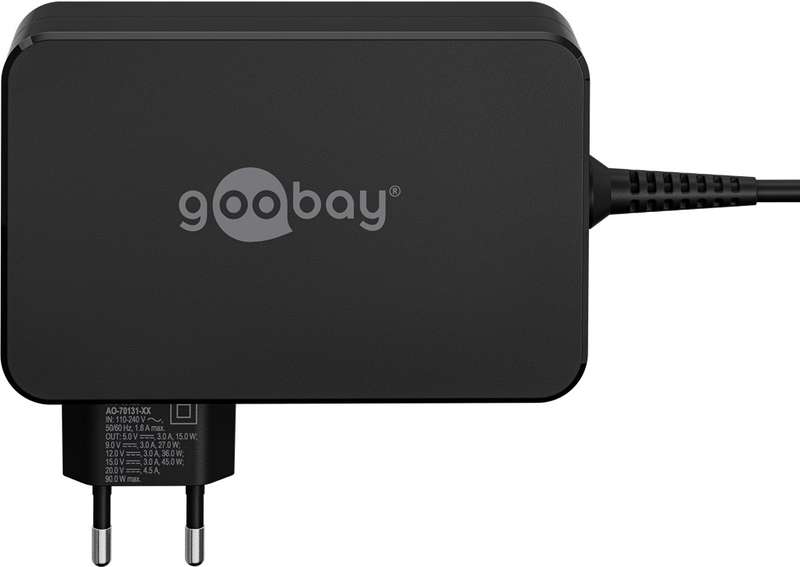

compact notebook power supply with fast charging function (Power Delivery)
Small, yet larger than life! The compact, lightweight power supply unit is the ultimate companion for your mobile life: With maximum power at minimum size, it even charages high-performance notebooks quickly and reliably with up to 90 W. With the versatile USB-C? connection, it is suitable for current laptops such as the Apple MacBook or the Huawei MateBook.
Features
-High-performance fast charger for charging and powering energy-intensive devices such as high-performance notebooks or docking stations with up to 90 W
-Compatible with notebooks from most major manufacturers such as Apple, Samsung, Lenovo, Huawei, HP, Asus or Acer
-Significantly more compact and lighter than conventional laptop chargers, making it the perfect companion on the go and when travelling
-With Power Delivery 3.0, the USB charger comes with a particularly safe and dynamic charging method that identifies the optimal output power for the connected device
-With the new USB-C? standard connector, the power supply unit is a universal charging solution for many devices that can be used in the long run
-Integrated protection electronics safeguard connected devices against overcurrent, overcharging and overheating
-Convenient 1.8 m cable length for easily connecting the 90 W charger to distant sockets
Technical specifications
ErP
-Average active efficiency: 79.1 %
-Efficiency at low load (10 %): 69.4 %
-No-load power consumption: 0.05 W
Performance
-Power consumption: 90 W
-max. performance: 90 W
-Output
5.0 V , 3.0 A, 15.0 W
9.0 V , 3.0 A, 27.0 W
12.0 V , 3.0 A, 36.0 W
15.0 V , 3.0 A, 45.0 W
20.0 V , 4.5 A, 90.0 W max.
-max. performance: 90.0 W
Device connections
-Input, Voltage Range: 220 - 240 (AC) V
-Input, type: Europlug (Type C CEE 7/16) x in
-Output, max. amperage: 4.5 A
-Output, type: USB-C? male
-Output, max. amperage: 4.5 A
-Input current: 1.8 A
Cable
Cable length: 1.8 m
General
-Color: black
-Markings: CE, WEEE, Quader, Haus
-Packaging type: Bulk
Dimensions / Weight
-Length: 101.5 mm
-Width: 95 mm
-Height: 30 mm
-Weight: 266 g
