GOPHERT CPS-1610 16V 10A 110V/220V Precision Digital Adjustable Mini DC Power Supply (PLUG: EUPLUG)

SELECTED OPTION:
PLUG: EUPLUG

Description: CPS-1610 16V 10A Precision Digital Adjustable DC Power Supply 110V/220V Features: Top performance cost ratio
High power density, smallest and compact
Aluminum shell, lower EMI
The microprocessor(MCU) control
Using Encoder to set the voltage and current
Four digital volt meter and three digital current meter
The current meter displays mA automatically when current below 1A

High efficiency, up to 88%.
Low Ripple & Noise: a 30 mVp-p.
Output ON/OFF
LOCK switch
110V/220V voltage input selectable
Intelligent protection: Tracking OVP, Tracking OCP, OTP, Output short circuit protection Specification:

Model	CPS-1610
Operation Voltage Range	95-132Vac OR 198 a 264Vac
Operation Frequency Range	45 a 65HZ
Output Voltage Range	0 a 16V
Output Current Range	0 a 10A
Efficiency (220Vac/full load)	a 87%
Full Load Input Current(220Vac)	a1.4A
No Load Input Current(220Vac)	a 80mA
Volt Meter Accuracy	a 0.3% + 1 digits
Current Meter Accuracy	a 0.3% + 2 digit
Constant Voltage
Load Regulation (0-100%)	a 30mV
Line Regulation(198-264Vac)	a 10mV
Ripple & Noise (Peak-Peak)	a 30mV
Ripple & Noise (r.m.s)	a 3mV
Set Accuracy	a 0.3% + 10mV
Transient Response Time (50%-100% rated Load)	a 1.0ms
Constant Current
Load Regulation(90%-10% Rated Voltage)	a 50mA
Line Regulation (198-264Vac)	a 20mA
Ripple & Noise (Peak-Peak)	a 30mAp-p
Set Accuracy	a 0.3% + 20mA
Size(width height depth)	12055168mm
Net Weight	0.85KG

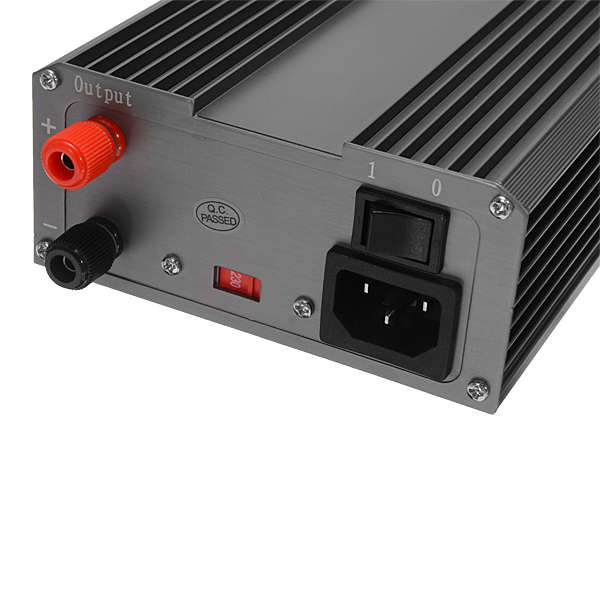

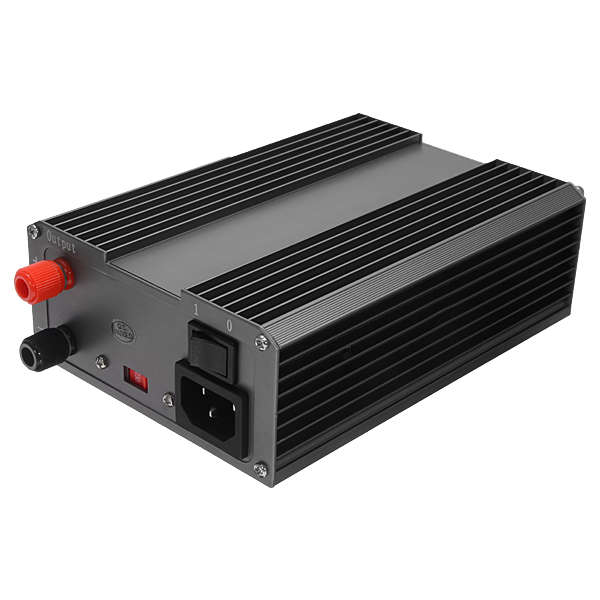

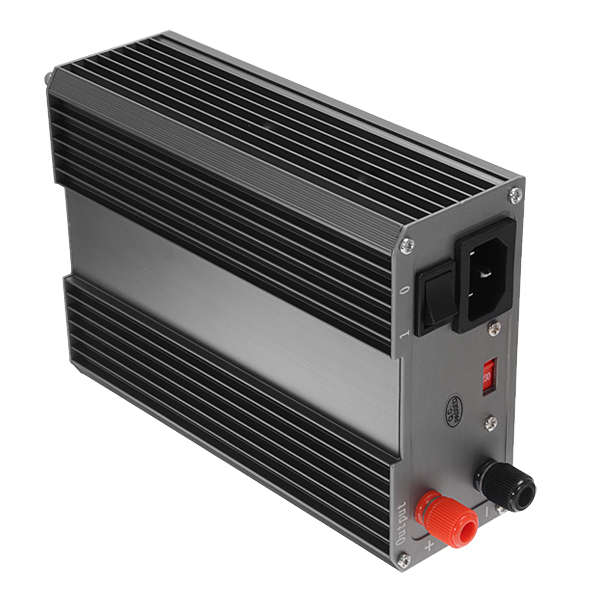

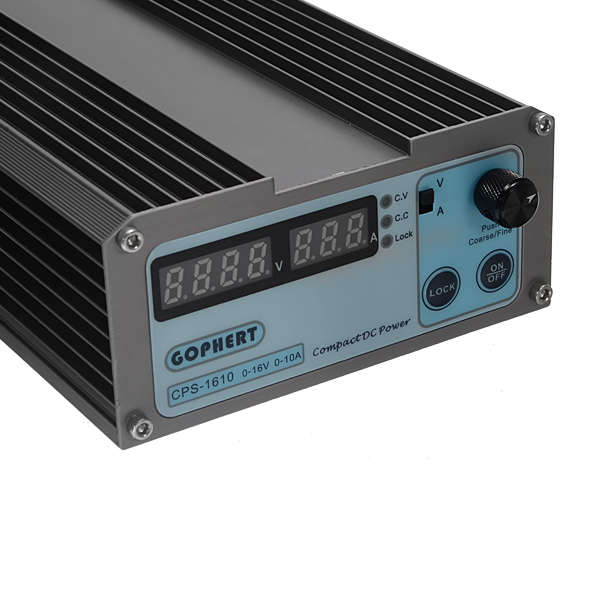

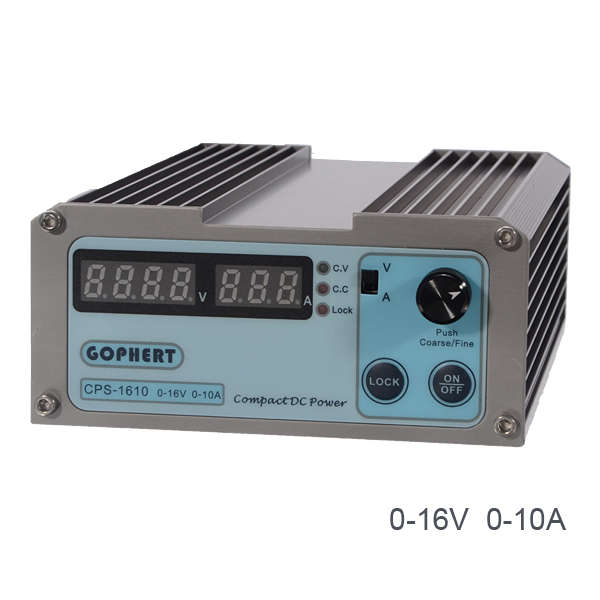

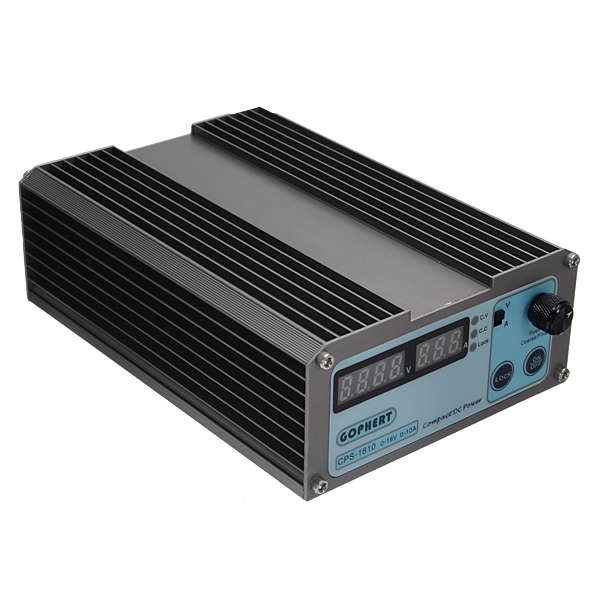

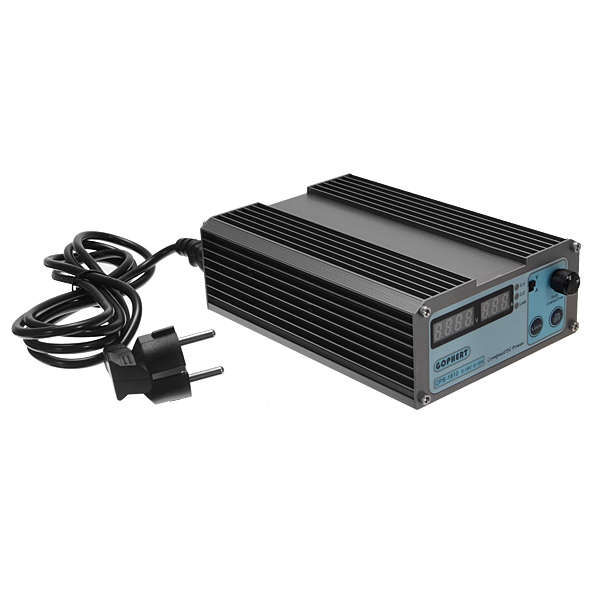

Package includes: 1 x CPS-1610 DC Power Supply 1 x AC Power cable 1 x User Manual Details pictures:
