GOPHERT NPS-1601 0-32V 0-5A 110V/220V 160W Switching Digital Adjustable DC Power Supply

New

20 were available

R1,494.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3860

92.70 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641125073

Description:

GOPHERTNPS-1601 0-32V 0-5A110V/220V 160W Switching Digital Adjustable DC Power Supply

Features:

Top performance cost ratio High power density, smallest and compact Aluminum shell, lower EMI. Using Encoder to set the voltage and current. Four digital volt and current meter.

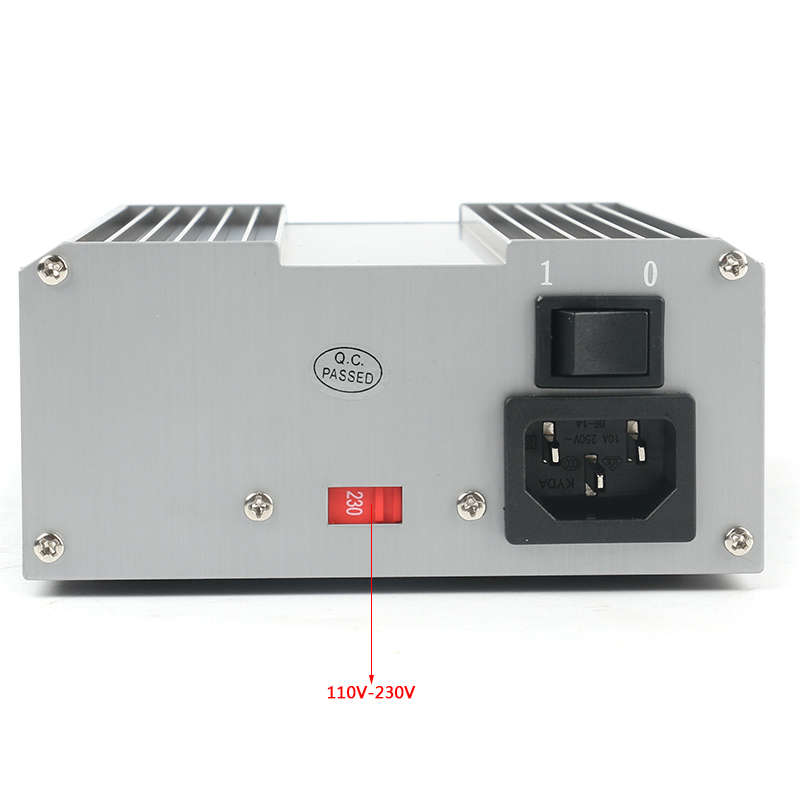

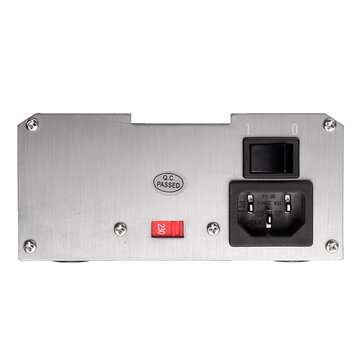

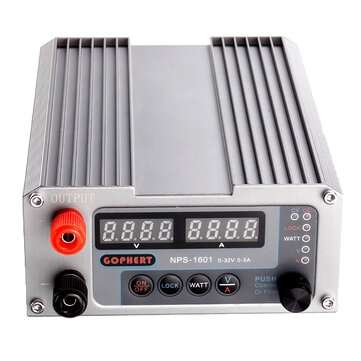

Switchable 110V and 220V inputs. - Output Terminal On The Front Panel, Use More Friendly - Has Both Lock And Power Display Function (WATT) - Voltage And Current Setting Selector Used Tack Switch Instead Of - Slide Switch, Improved The Relibility - Setting And Reading Are More Accuracy,The Resolution of Amp meter is 1mA,Volt meter is 10mV - Ripple & Noise (peak-peak) less than 10mV - Zero overshoot (c.v mode and c.c mode),Protect sensitive device - High efficiency >87% - Intelligent protection: Output short circuit protection, Tracking Over Voltage Protection (OVP), Tracking Over Current Protection(OCP), Over Temperature Protection (OTP) SMT components: Reflow soldering process, higher relibility

Specification:
Brand: GOPHERT Model: NPS-1601 (32V 5A) Operation Voltage Range:198 a 264Vac/100-144Vac Operation Frequency Range:45 a 65HZ Output Voltage Range: 0 a 32V Output Current Range: 0 a 5A Efficiency (220Vac/full load):a 87% Full Load Input Current (220Vac):a 1.4A No Load Input Current(220V):a 80mA Volt Meter Accuracy:a 0.1% + 2 digit Amp Meter Accuracy:a 0.1% + 3 digits
Plug: EU Plug (will provide adapter according to delivery country) Constant Voltage Load Regulation (0-100%):a 30mV Line Regulation(198-264Vac/100-144Vac):a 5mV Ripple & Noise (Peak-Peak):a 10mV Ripple & Noise (r.m.s):a 2mV Set Accuracy:a 0.3% + 10mV Transient Response Time (50%-100% Rated Load):a 1.0ms Constant Current Load Regulation (90%-10% Rated Voltage):a 50mA Line Regulation (198-264Vac/100-144Vac):a 20mA Current Ripple & Noise (Peak-Peak):a 10mAp-p Set Accuracy:a 0.2% + 3mA Size(width* height* depth):120*50*180mm Net Weight:0.8KG

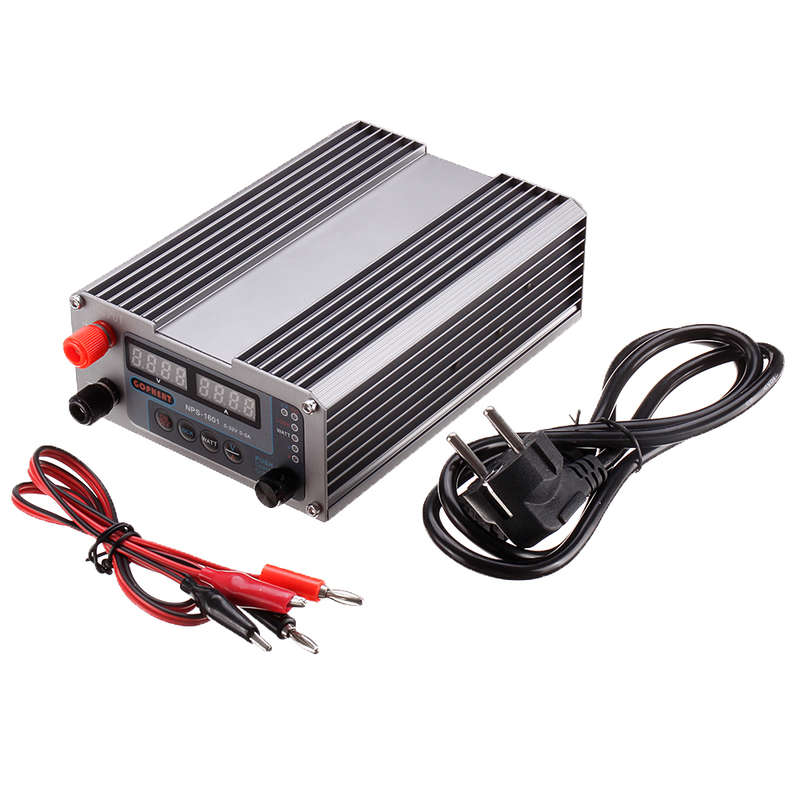

Package includes: 1 x NPS-1601 DC Power Supply 1 x AC Power cable 1 x User Manual

MoreRecommendeda,

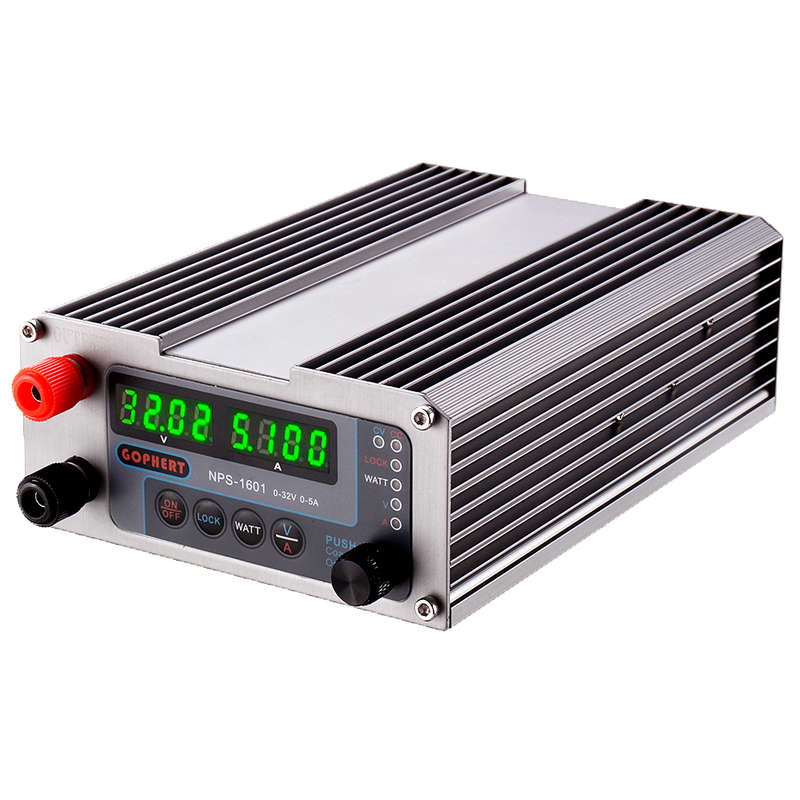

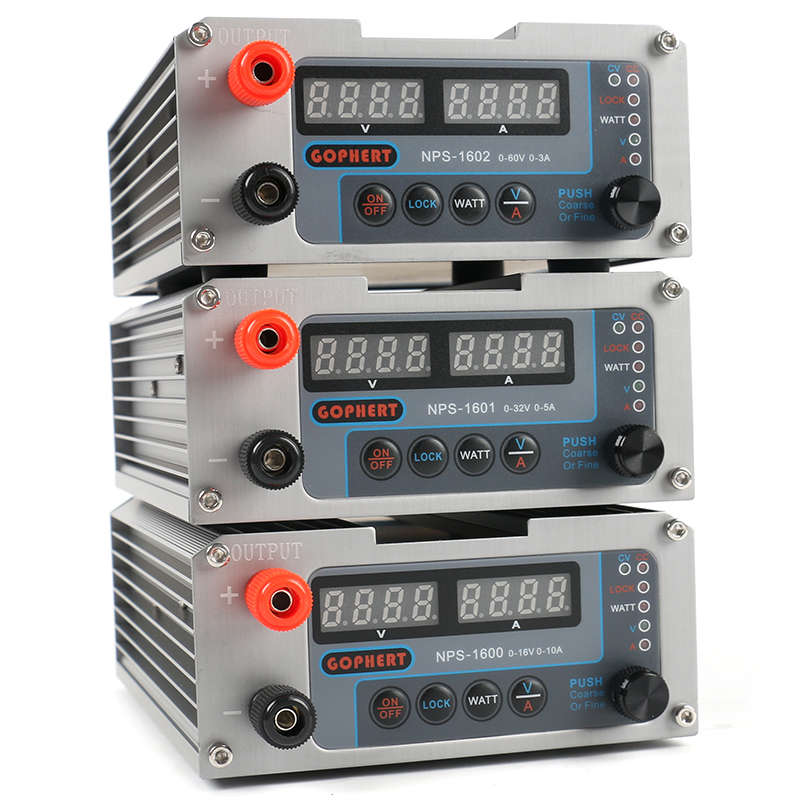

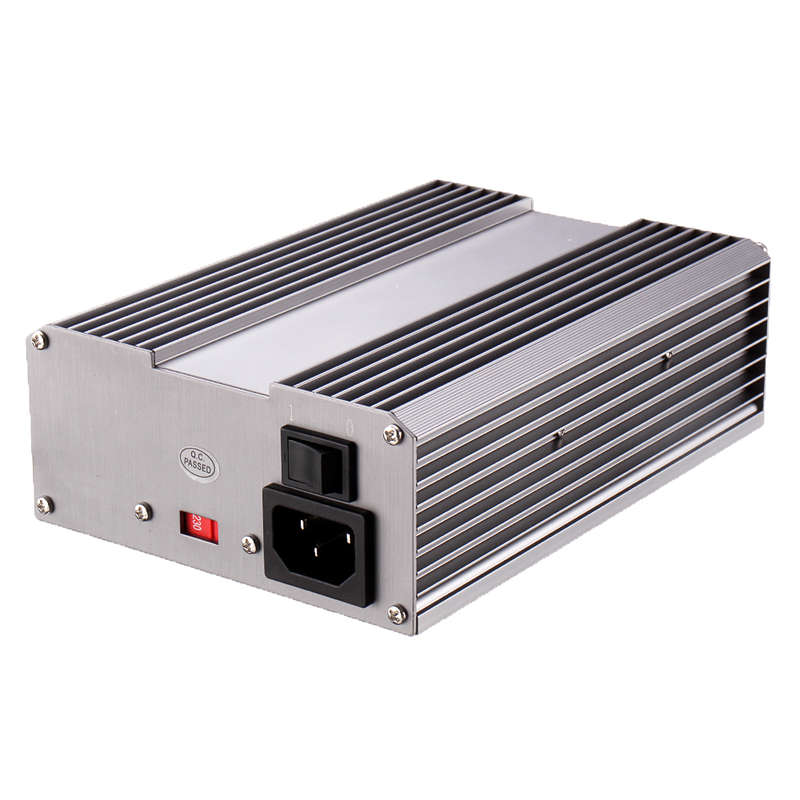

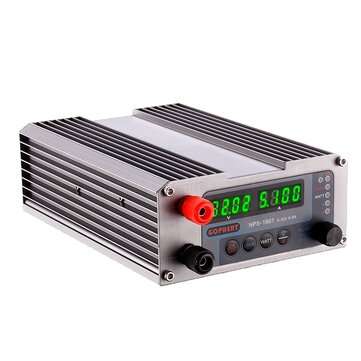

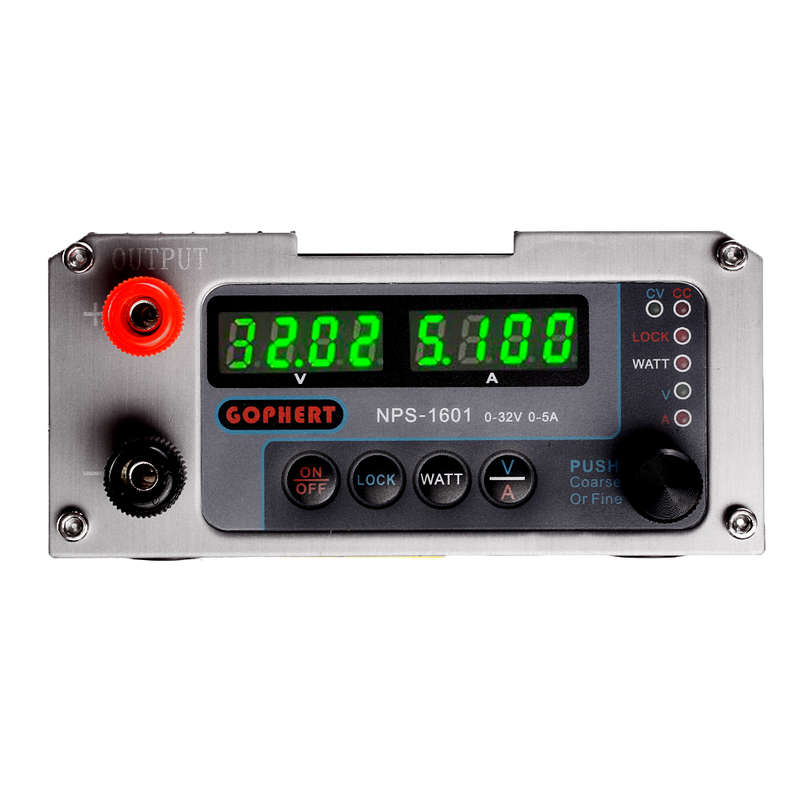

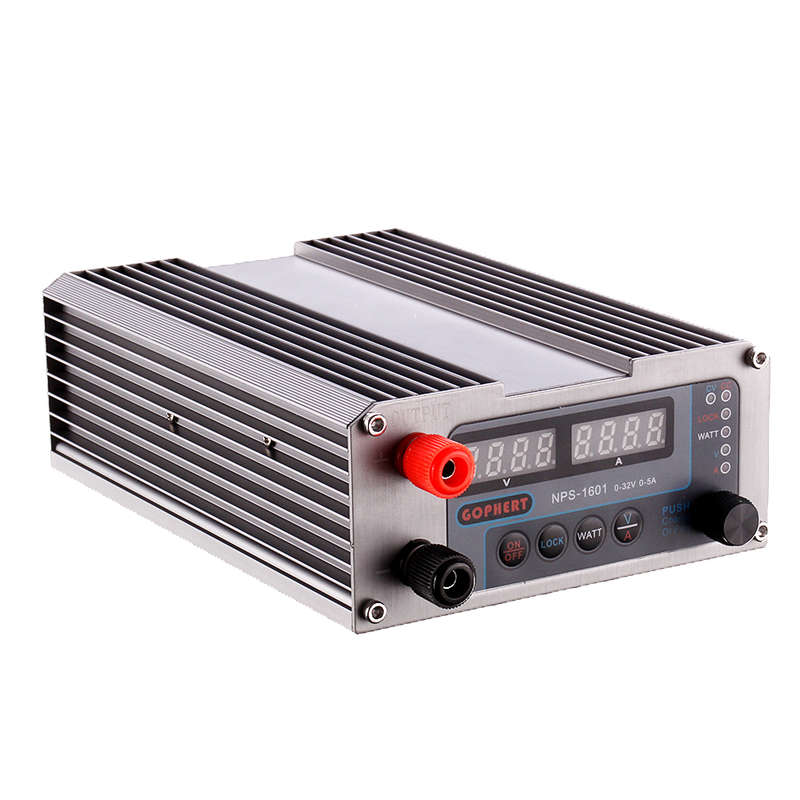

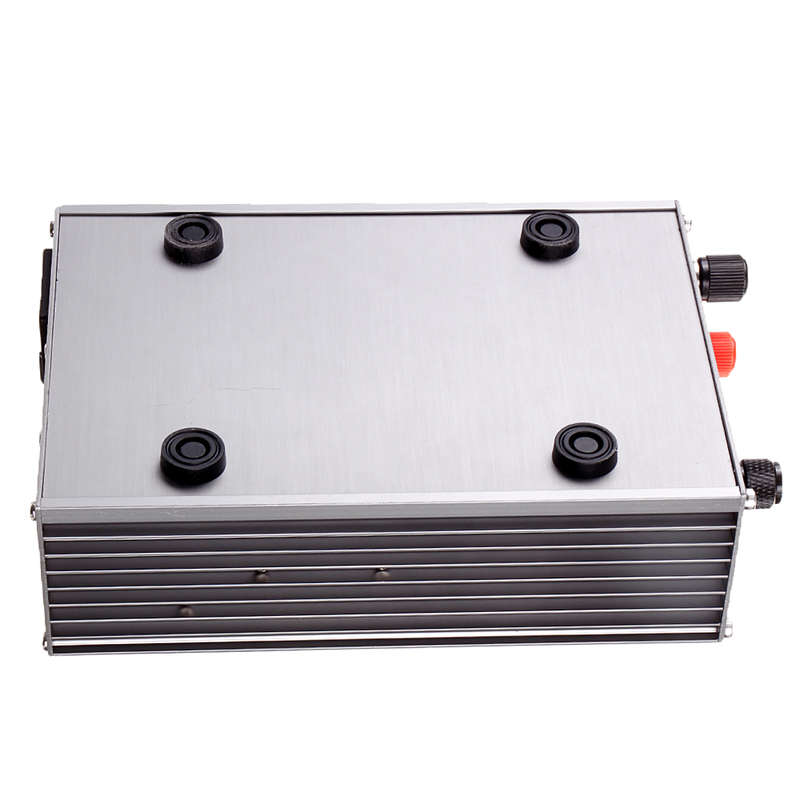

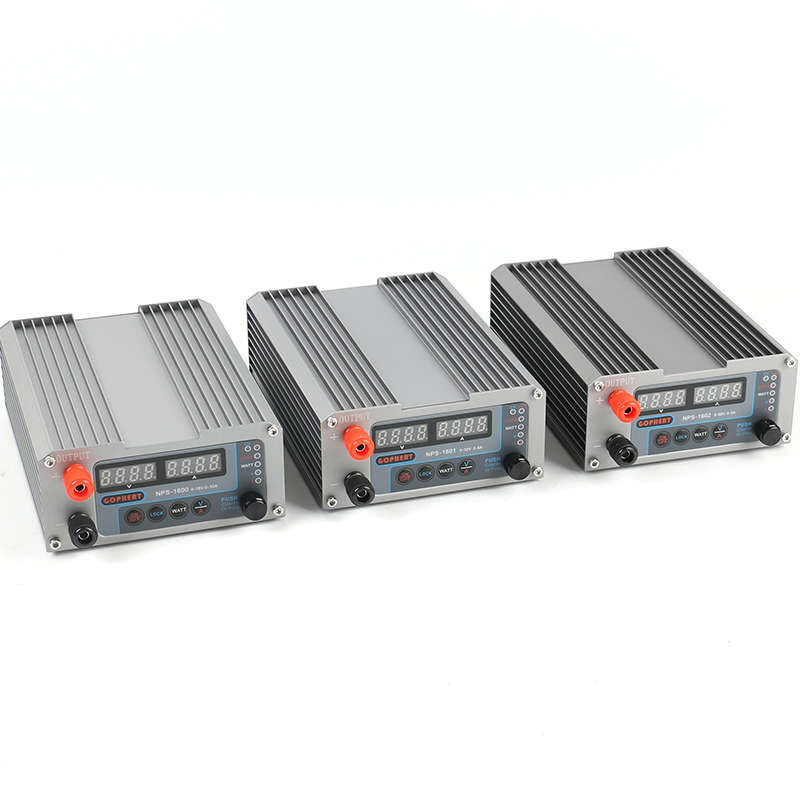

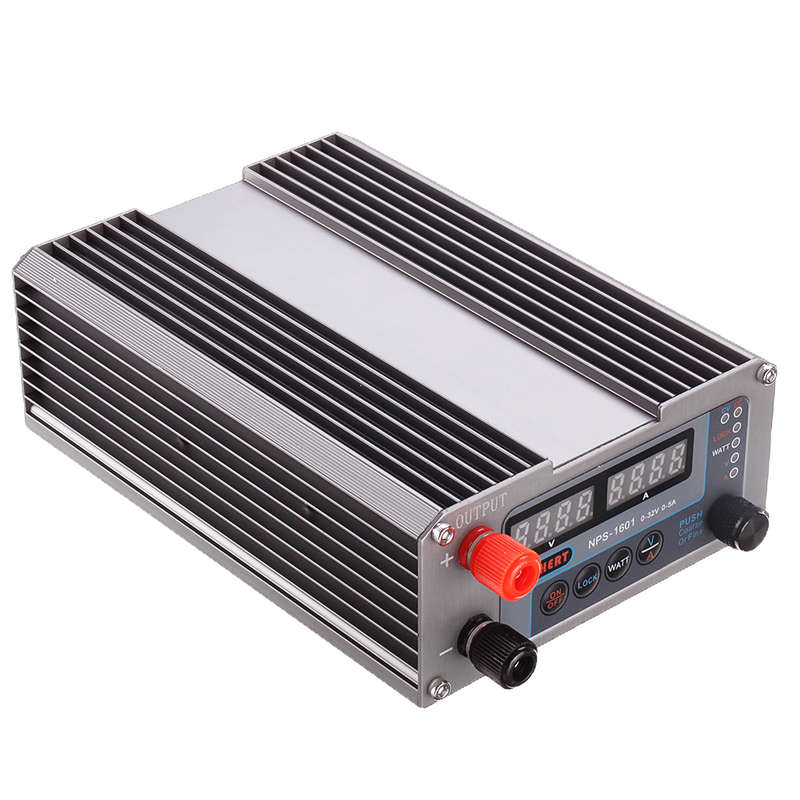

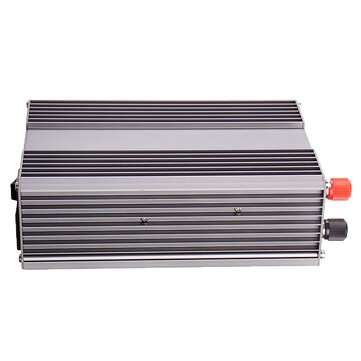

Details pictures:
