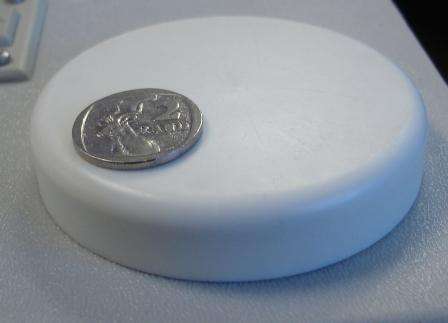

The Powerpuck GPS Antenna ANP-C-114
Manufacturer : Macom RF & Microwave products
Active antenna : Amplifier and filter circuitry contained within antenna housing,powered via co-axial cable from GPS
Ideal for fixed permanant installation in marine/mobile/aviation environment
Features
Lightning Protection
Groundplane Independent
Description
Designed to operate in all climates and conditions, the
Powerpuck is an amplified low-profile micropatch.
Applications
Marine and Vehicular Navigation
Fixed Site
General Purpose
Specifications
Frequency 1575 MHz ± 2 MHz
Polarization Right Hand Circular
Gain, Zenith 3.5 dBic
Gain, +10 degrees -3.0 dBic
VSWR 2.0:1
Amplifier Gain 26 dB
Amplifier Noise Figure 2.5 dB typical
DC Voltage 5 Vdc (Supplied by GPS receiver via antenna coaxial cable)
DC Current 25 mA typical
Pre-Amp Filtering 25 dB ± 140 MHz
Radome Color White
Operating Temperature -40° C to +85° C
Weight 150 grams max
Military Standards: DO-160C, MIL-STD-810C, MIL-STD-810
Connector Information
SMA Female Bottom
dimensions in inches
