GPS car tracker with a Data Logger, GSM and Quad-band Connectivity is the perfect addition to boost the protection of your vehicle.

Introducing this GPS Car Tracker for global vehicle tracking. With its convenient SMS ability, full-range of alarm functions (including gas to engine cut off), and lots more, this GPS Car Tracker is the ultimate safety device for your car, van, truck, or even the entire vehicle fleet. Replies with a TXT message of current latitude, longitude, speed, and time, as well as an Internet map link to your cellphone to show you exactly where the GPS tracker/your vehicle is. Now with a Micro SD card slot, the GPS tracker turns into a data logger by storing location data directly onto it. With the included software, you can easily track your vehicle’s route afterwards. When the vehicle moves in/out the preset scope, it will send an SMS alarm to the authorized phone numbers to alert the owner. The tracker can warn you with SMS message when the vehicle starts to move from a stationary status, or when the vehicle is moving faster than a preset speed.

You can send an SMS message to the tracker to cut off the gas and battery power, so the engine will remain in an immobilized state until your remove the alarm status. With a GPRS enabled SIM card, you can monitor real-time movement of your vehicle with the supplied software on your computer. It runs on the latest GPS SiRF III chip-set, a sophisticated GPS microchip embedded into the heart of the tracker which continually reads its own location from low orbiting global satellites and then utilizes the GSM/GPRS infrastructure operated by your cellular network provider to transmit its current location to you. All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works anywhere in the world.


At Glance...

• Complete system integration to your vehicle
• Quad-band GSM frequency
• Extensive functions through SMS
• GPRS and Internet applications




Manufacturer Specifications

General

• Network: GSM / GPRS
• 2G: 850/900/1800/1900
• GSM/GPRS Module: Simcom Sim340
• OS Compatibility: Windows7 and Windows Vista
• Working Temperature: -20 to 55 Degrees Celsius
• Humidity: 5 to 95 Percent Non-condensing
• Power Source: Car Battery or Built-in Backup Battery
• Battery Size: 1000mAH
• Battery standby: 80 Hours

GPS

• Receiver Module: SIRF III Chip
• GPS Sensitivity: -159 dBM
• GPS Accuracy: 5 Meters
• Altitude Limit: 18,000 meters (60,000 feet) max
• Velocity Limit: 515 meters/second (1000 knots) max
• Acceleration Limit: Less than 4G
• Cold Status: 45s
• Warm Status: 35s
• Hot Status: 1s

Memory

• Micro SD card supports up to 4GB

Alarms, Alerts, Security Functions

• Real-time tracking
• Equipment Self-check
• Remote Power Off

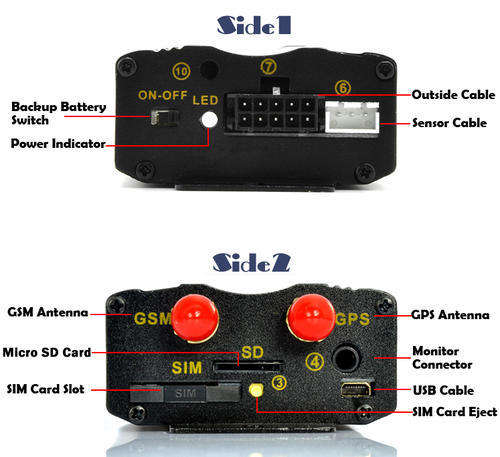

Ports

• Monitor Connection Port
• SIM Card Slot - 1x GSM
• Micro SD card slot
• Mini-USB Port

Dimensions

• Main product dimensions: 105x54x24mm (L x W x D)

Product Notes

• Please ensure that the SIM card is compatible (Only 2G, 2.5G, 2.75G SIM cards work)
• Comes with detailed instructions on how to work with GPRS enabled SIM and setup internet monitoring (fixed IP only), so constant tracking information can be displayed on a detailed map
• Each tracker’s IMEI number is unique and can only be used to setup the software on one computer once, which means you can only use the software on that computer exclusively after successfully setting it up. This is due to the security requirements of the software and the product.

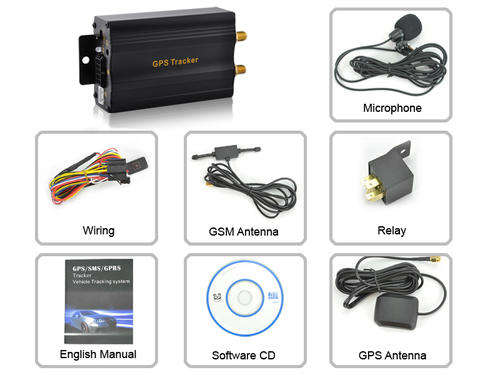

Package Contents

• GPS Car Tracker
• GPS Antenna
• GSM Antenna
• Microphone
• Relay
• Wiring
• Software CD
• User Manual
