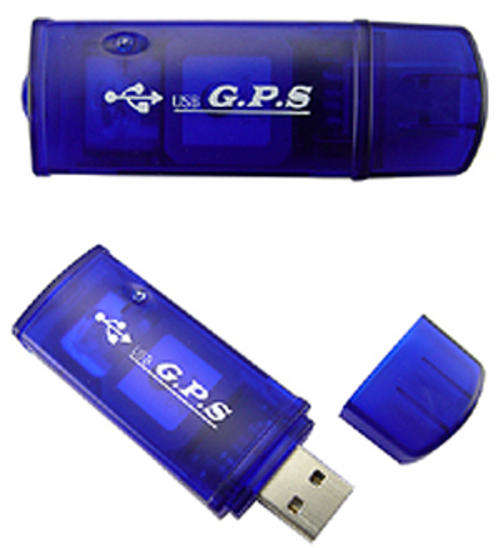

GPS Receiver USB Adapter for Computers (Netbook, Laptop, UMPC)

GPS Receiver USB Adapter for Computers (Netbook, Laptop, UMPC)

This GPS Receiver USB Adapter for Computers is a compact, accurate GPS receiver with low power consumption that plugs into your computer's USB port. This receiver is suitable for all the applications of a traditional GPS receiver including planning your trip before you head out or finding your location while you are camping. All you need is: (1) the CVGI-B07 GPS dongle; (2) a computer; (3) GPS navigation software**; and (4) a destination. After installing the receiver and the necessary software, you can find your location right on your laptop. The GPS receiver takes its power from the PC it is attached to, so there are no extra wires or cables to tie you down.

**This GPS receiver is compatible with all major brands of GPS computer software. This model does not come with any GPS map software.

Manufacturer Specifications

• Primary Function: GPS receiver USB dongle
• Tracks up to 20 satellites.
• Receiver: L1, C/A code
• Max update rate: 1 HZ
• Acquisition time
  Reacquisition: 0.1 sec average
  Hot start: 1 sec.
  Warm start: 38 sec.
  Cold start: 42 sec.
• Position Accuracy
  Non DGPS (Differential GPS)

  Position: 5-25 meter CEP without SA
  Velocity: 0.1 meters/second, without SA
  Time: 1 microsecond synchronized GPS time
  DGPS (Differential GPS)

  Position: 1 to 5 meters
  Velocity: 0.05 meters/second
  EGNOS/WAAS/Beacon
  Position
  < 2.2 meters, horizontal 95% of time
  < 5 meters vertical 95% of time
• Dynamic Conditions:
  Altitude: 18,000 meters (60,000 feet ) max
  Velocity 515 meters (700 knots) / second max
  Acceleration: 4 G, max
  Jerk: 20 meters/second, max
• Antenna Type: Built in Patch Antenna
• Minimum signal tracked: -159dBm
• Dimensions: 74 x 25 x 14 mm
• Operating temperature: -40 to +80
• Storage temperature: -45 to +100
• Operating humidity: 5% to 95% No condensing.
• Power consumption: < 80mA at 4.5- 5.5V input
• Protocol and interface
  NMEA output protocol: V.2.2
  Baud rate: 4800 bps
  Data bit: 8
  Parity: N
  Stop bit: 1
  Interface: USB port
• Color: Blue
