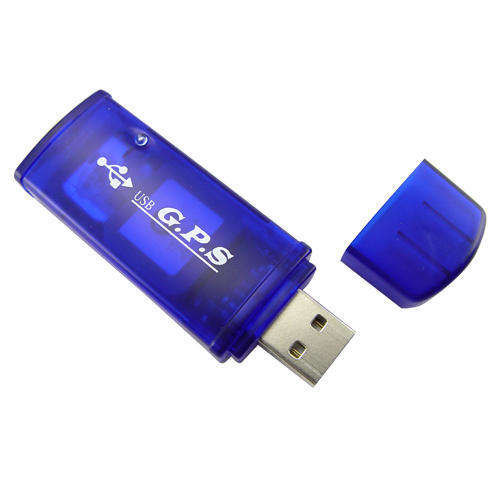

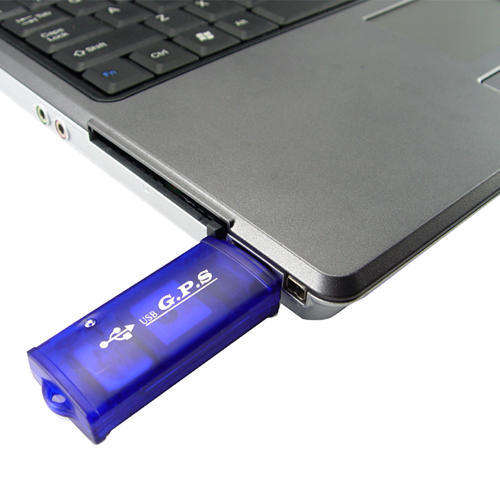

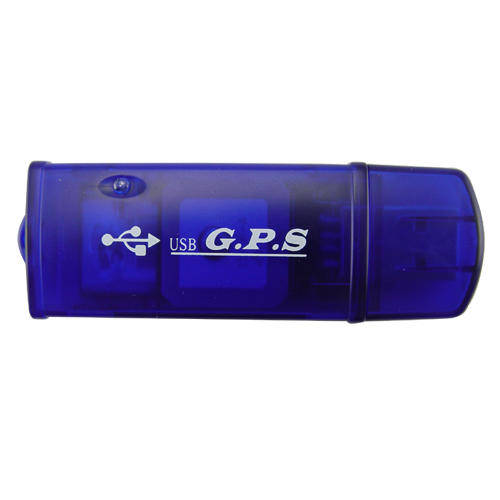

GPS Receiver USB Adapter for Computers (Netbook, Laptop, UMPC)

At a Glance...

GPS receiver USB dongle for laptop PCsAccurate within up 1 to 5 metersLow power consumptionQuick reacquisition of satellites
**This GPS receiver is compatible with all major brands of GPS computer software. This model does not come with any GPS map software.

Specifications

Primary Function: GPS receiver USB dongleTracks up to 20 satellites.Receiver: L1, C/A codeMax update rate: 1 HZAcquisition time
Reacquisition: 0.1 sec average
Hot start: 1 sec.
Warm start: 38 sec.
Cold start: 42 sec.Position Accuracy
Non DGPS (Differential GPS)
Position: 5-25 meter CEP without SA
Velocity: 0.1 meters/second, without SA
Time: 1 microsecond synchronized GPS time
DGPS (Differential GPS)
Position: 1 to 5 meters
Velocity: 0.05 meters/second
EGNOS/WAAS/Beacon
Position
< 2.2 meters, horizontal 95% of time
< 5 meters vertical 95% of timeDynamic Conditions:
Altitude: 18,000 meters (60,000 feet ) max
Velocity 515 meters (700 knots) / second max
Acceleration: 4 G, max
Jerk: 20 meters/second, maxAntenna Type: Built in Patch AntennaMinimum signal tracked: -159dBmDimensions: 74 x 25 x 14 mmOperating temperature: -40 to +80Storage temperature: -45 to +100Operating humidity: 5% to 95% No condensing.Power consumption: < 80mA at 4.5- 5.5V inputProtocol and interface
NMEA output protocol: V.2.2
Baud rate: 4800 bps
Data bit: 8
Parity: N
Stop bit: 1
Interface: USB portColor: Blue


Product Notes

**This model is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. Seller provides the GPS-enabled hardware only, not the software. Seller provides no warranty or customer support regarding GPS software. Seller cannot provide downloads / links / advice regarding GPS software. Any software installation you undertake should be performed or supervised by a professional.

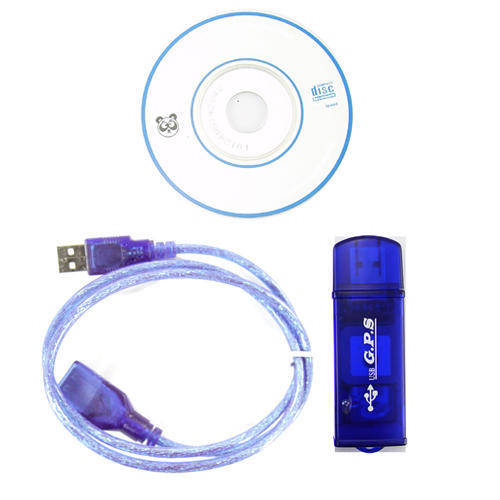

Package Contents

GPS Receiver USB AdapterCD (functionality software to allow this dongle to be used with 32 bit Windows XP and Windows Vista operating systems)USB cableDisplay/storage box
