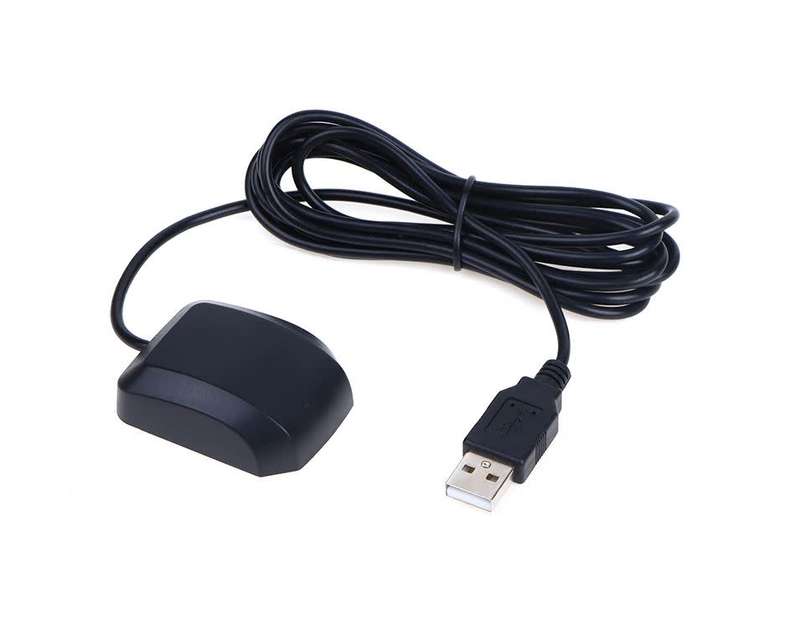

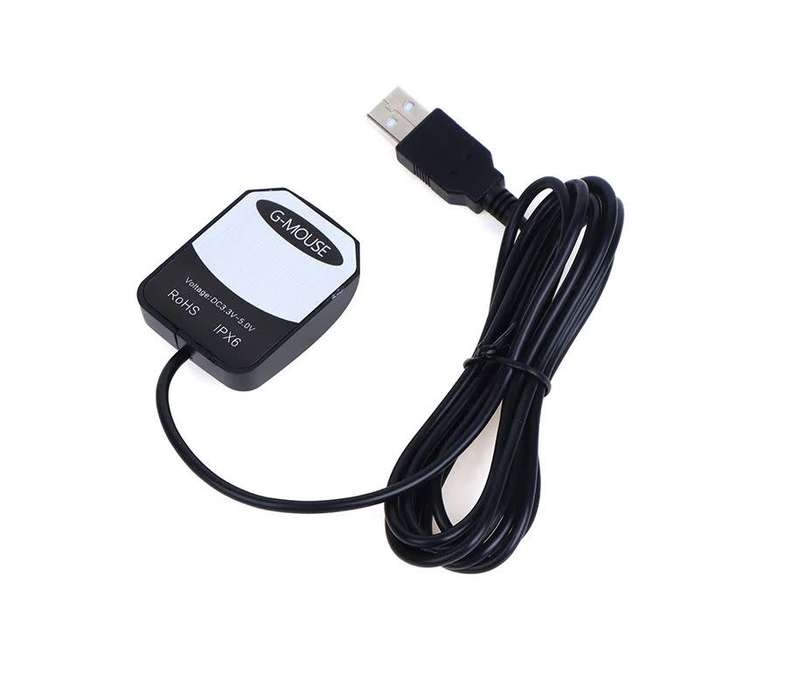

GPS Receiver USB Model VK - 162

VK-162 GMOUSE USB External GPS Navigation Module [u-blox] is an external GPS receiver dongle for PCs and Raspberry Pi, that is developed based on LOCUSY u-blox 7 core. It can support google earth platform under the Window and Linux family but not android and IOS operating systems. This GPS receiver is a low size (mini size) and low-cost module with high sensitivity and high accuracy, that can be used as a standalone GPS receiver. This module is easy to use without installation that is enough to plug it in any PCs USB port to receive GPS data through the Standard NMEA Protocol format. It can receive GPS signals from American GPS satellite, Euro Galileo satellite, and  SBAS (WAAS, EGNOS, MSAS, GAGAN) satellite. Needs driver to operate which are downloaded from u-blox product center and uses u center software as interface.

Chipset properties:
Main chip: u-blox
C / A code: 1.023MHz stream
Receive frequency: L1 [1575.42MHz]
Tracking Channels: 50
Support DGPS [WAAS, EGNOS, and MSAS]

Positioning performance:
2D plane: 5m [average]
2D plane: 3.5m [average], there DGPS auxiliary.
Drift: <0.02m / s
Timing Accuracy: 1us
Reference coordinate system: WGS-84
Maximum altitude: 18,000m
Maximum speed: 500m/s
Acceleration: <4g

Electrical properties:
Tracking sensitivity:-162dBm
Acquisition sensitivity:-148dBm
Cold start time: 32s [average]
Warm start Time: 32s [average]
Hot start time: 1s [average]
Recapture Time: 0.1s [average]

Temperature:
Operating : -40°C ~ 80°C
Storage : -40°C ~ 85°C
Humidity : < 95% non-condensing

Protocol:
GPS Protocol Default : NMEA 0183
GPS Output Data : Command GGA, GSA, GSV, RMC, VTG, GLL
GPS transfer rate : Auto-Baud

Dimensions:
USB Cable length: 1m
Size: 49mm x 38mm x 16mm
