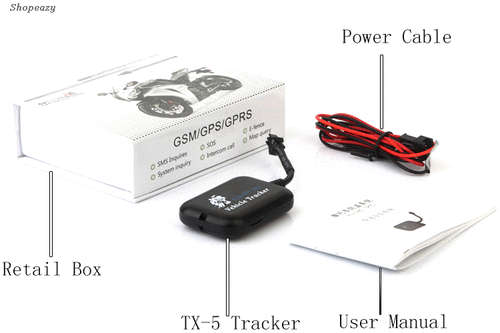

GPS TRACKING DEVICE
GSM Quad-band frequency (Global use);
Technical Parameter
GMS frequency: 900/1800MHz or 850/1900MHz;
GPRS: Class12,TCP/IP;
Working Temperature: -2C - +70C;
Working Humidity: 20%-80%RH;
Dimension: 55.0(L)*38.0(W)*10.0(H)mm;
Net weight: 21g;
Functions:
1.GSM&LBS Quad-band Real-time Tracking & base station location and history track playback;
2.Built-in Microphone realize remote monitoring
3.External voltage regulator to realize vehicle ultra high voltage power supply(optional)
4.Alarm function: Speeding, Vibration, Geo-fence and illegal shift Alarm by real-time SMS or phone call
5.Firmware Auto recovery function
6.IOS, Android APP software in set, also support WeChat tracking on line
Installation Instructions:
Before Installation
Open the package, please look over whether the part number is correct and whether accessories complete.
Choose correct SIM card, a SIM card will be needed to insert into the terminal, please consult distributors options for further use;
Install SIM card, SIM card slot On the terminal back, take out the SIM card slot cover, insert the SIM card, then put the cover back to terminal;
Please Note:
Power off before SIM card operations;
Please make sure that the SIM card has enough credit;
Special GPRS data SIM Card suggested (GSM network only)
