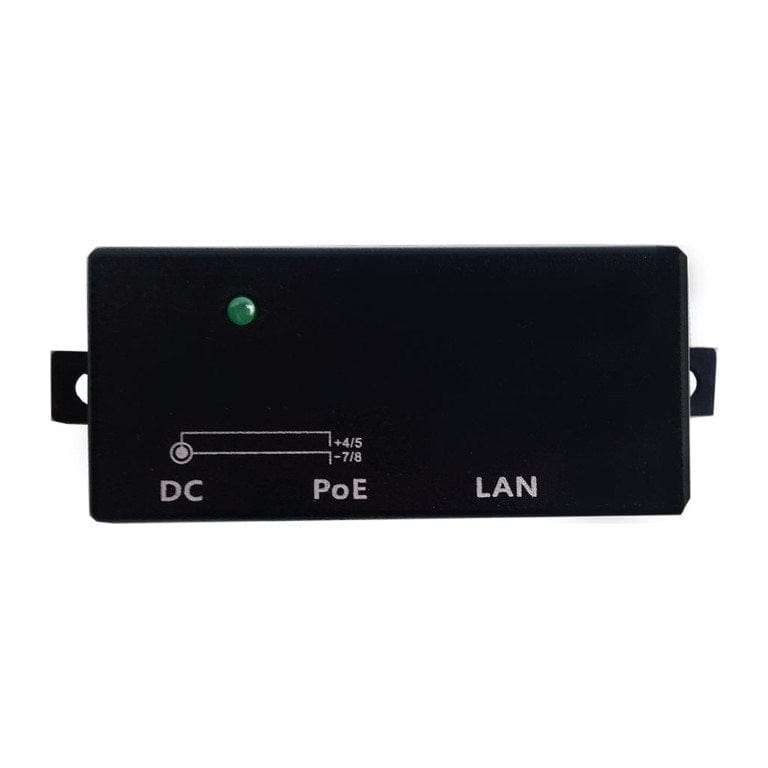

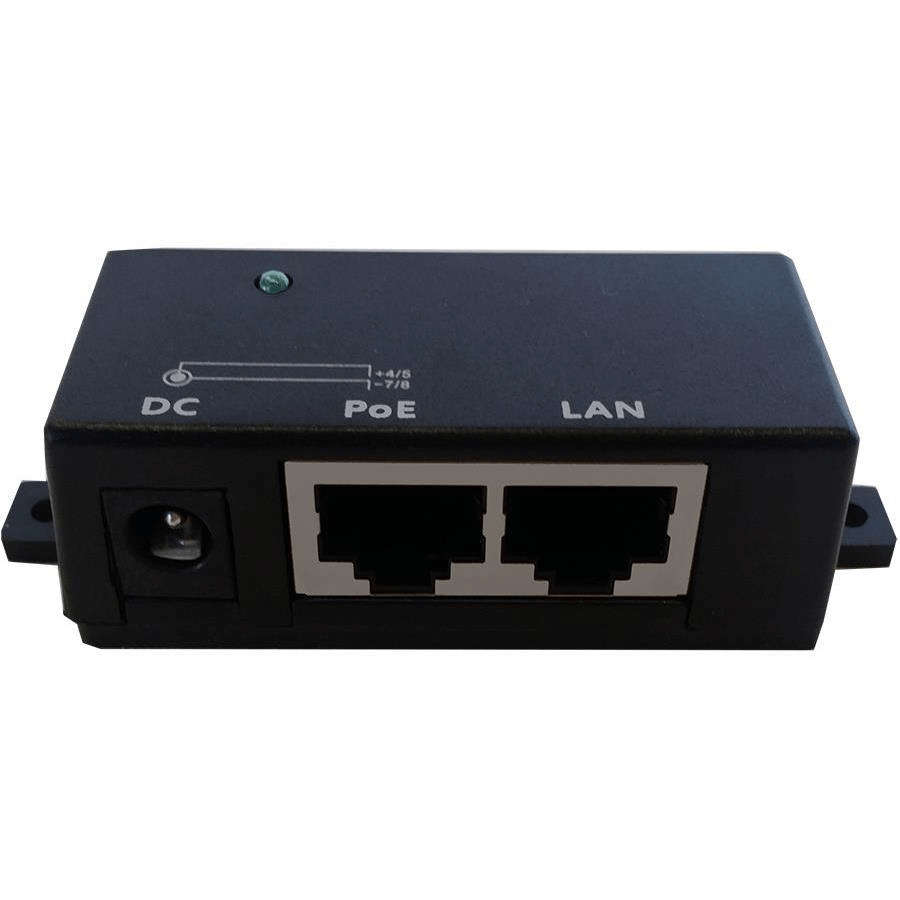

Grandstream Single Port Fast Ethernet Passive PoE Injector
This Scoop Power over Ethernet (PoE) Passive Injector delivers both data and electrical power to passive PoE devices using a single Ethernet cable.
The POE supports Fast Ethernet Passive PoE-enabled devices, PIN 1/2/3/6 for Data and PIN 4/5/7/8 for Power. It can be wall-mounted.
NOTE: There is no power supply included with the Injector
Technical Specification
Ethernet Ports: 2x 10/100
Max. Current Per Port: 650mA
Operating Temperature: 0°C to 40°C
PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 9-48V Power Supply (Not Included)
Supported Voltage Range: 9-48V
