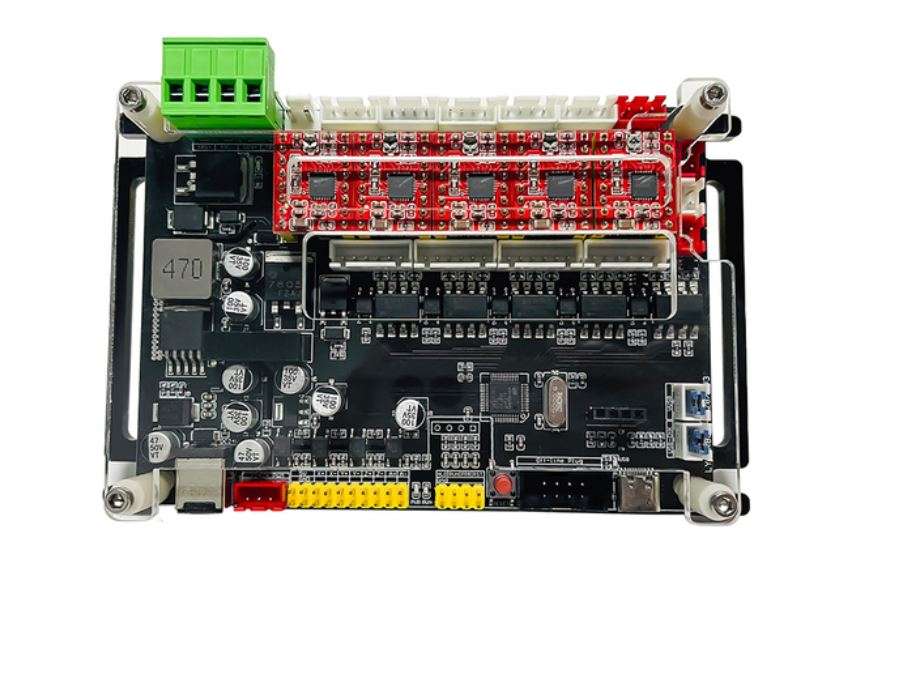

GRBL 4 Axis Controller Board V3 for CNC 3018

GRBL 4 Axis Controller Board V3 for CNC 3018

Product Description

This is the GRBL 4 Axis Controller Board for CNC 3018 and hobby machines. It comes with the 4 stepper drivers pinned onto the board. It is also capable of connecting 300W or 500W spindle motor. This is the new version.

Product Features

• Four-axis 3.0 Control Board Features：
• This control board is a 32-bit MCU control board, which runs faster, the maximum no-load speed reaches 40000mm/min, the algorithm is optimized better, the vibration of the machine is smaller when the machine moves at high speed, and the performance is more stable
• Using the Type-C USB interface, it is more convenient to use and the data transmission is more stable;
• Support external drive, the reserved interface for the external drive is consistent with the high-power drives on the market, which is convenient for wiring;
• The control board power supply and line number circuit are isolated by an optocoupler, the whole control board is safer and more stable;
• Y-axis dual drive, stronger drive capability;
• Support USB automatic identification. When plugged into USB and connected to the computer, it will automatically shield the offline interface to avoid offline interference with data. At the same time, it supports external buttons, which can switch offline/USB control with one key;
• There are long strip-shaped mounting holes on the shell, which is convenient for the installation of various devices;
• Reserve 24V, 12V, and 5V power output ports to facilitate the expansion of various functions
• Support USB flash firmware, firmware upgrade is more convenient
• Product Parameters:
• Product Name:4 Axis 3.0 Control Board
• Product Specifications:4 Axis
• Package Size:185mm*115mm*55mm
• Package Weight:300g
• Product Size:122mm*87mm
• Product Weight:150g
• Operating System: Windows/Linux/Mac
• Interface Type: TypeC

Controller connections
