Specifications:
Frequency Range: LF-6GHz
Attenuation Range: 0-31.75dB
Attenuation Step: 0.25dB
Voltage: DC 5V
Insertion Loss: 1.5dB (slightly higher at high frequencies)
VSWR: 1.4
Attenuation Accuracy: ±0.25dB Max
Power Rating: 1W
Connector Type: SMA (female, external thread, inner hole)
Operating Temperature: -10°C to +50°C
Storage Temperature: -40°C to +70°C
Dimensions: 55 x 40 x 16.5mm (excluding SMA connector protrusions, SMA protrusions: 9mm)
Weight: 57g
Impedance: 50 ohms
Features:
1. Compact design for ease of portability—ideal for testing and setup in various outdoor or indoor applications.
2. High-level precision with attenuation adjustment accuracy of ±0.25dB, ensuring reliable signal tuning and consistent performance.
3. OLED display for clear visibility of attenuation levels, enabling user-friendly controls.
4. CNC aluminum alloy outer casing with modern aesthetics and excellent electromagnetic shielding.
5. Versatile 0.25dB incremental adjustment range, suitable for signal calibration in a broad frequency spectrum from LF to 6GHz.
Package Included:

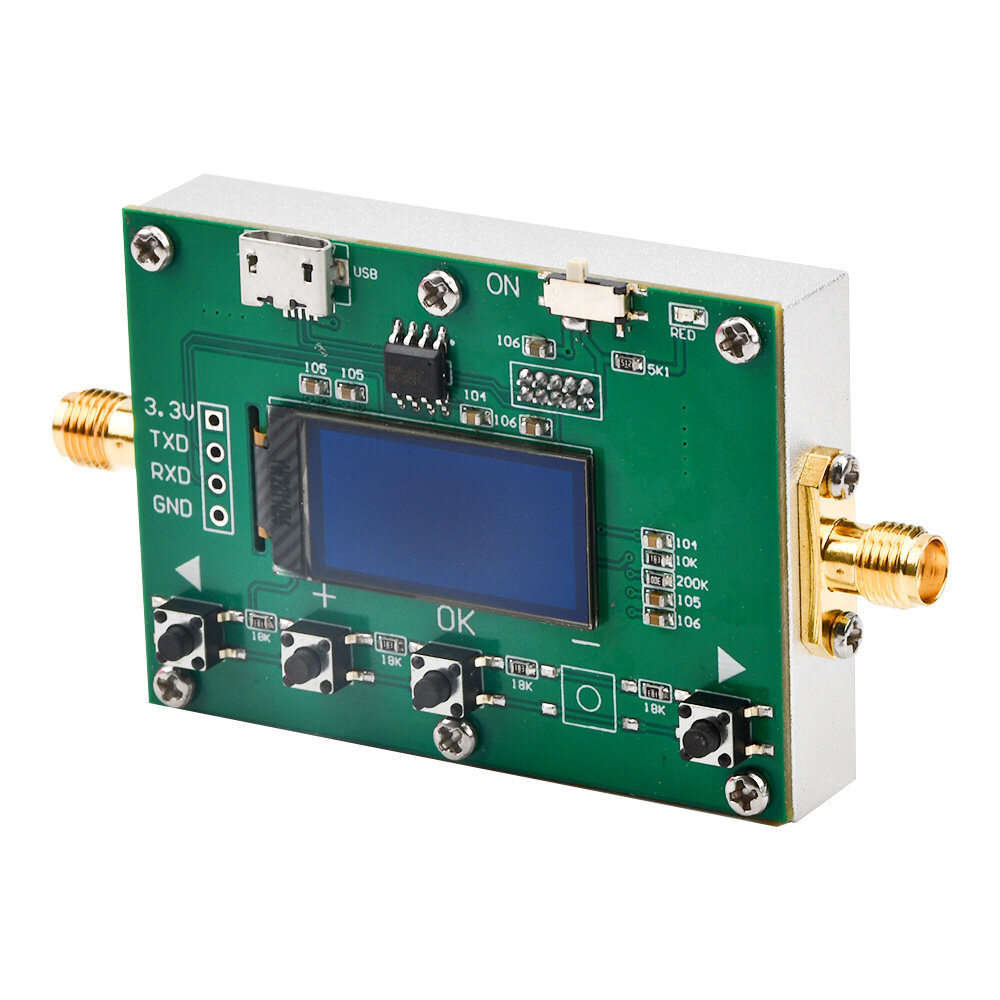

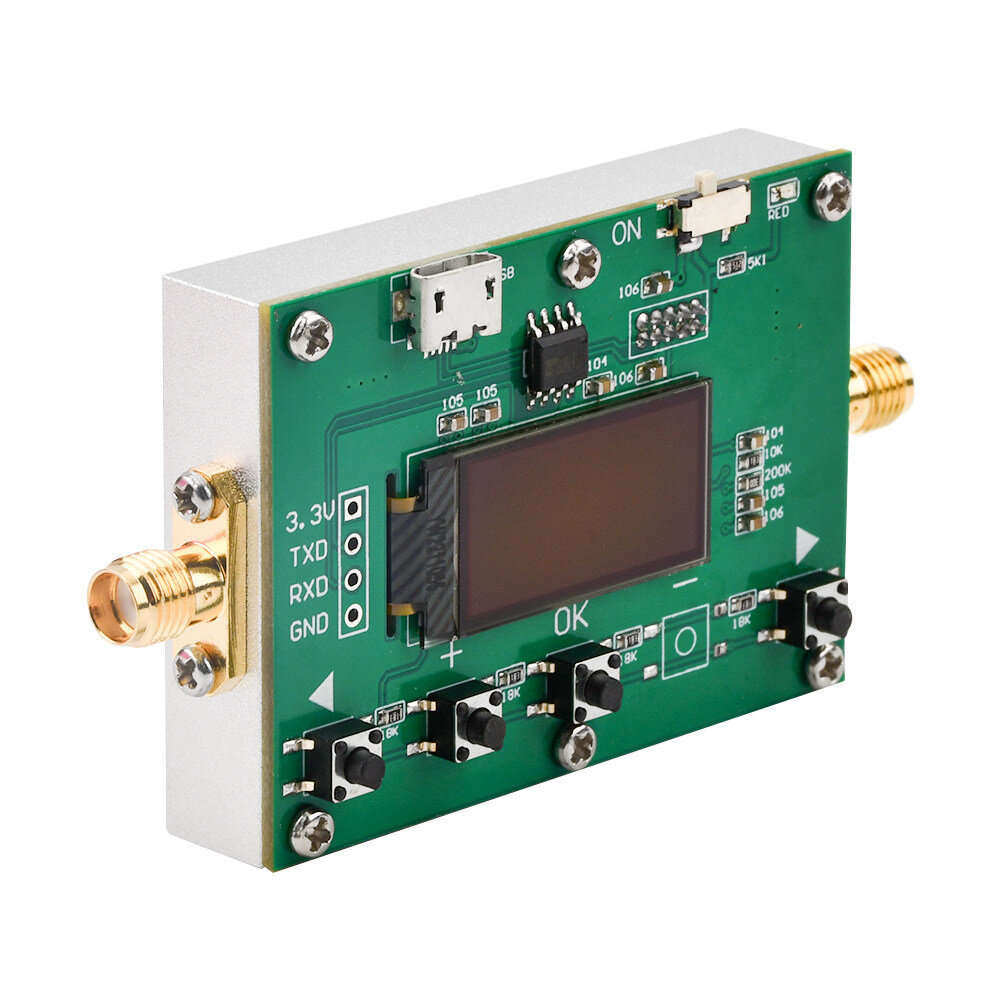

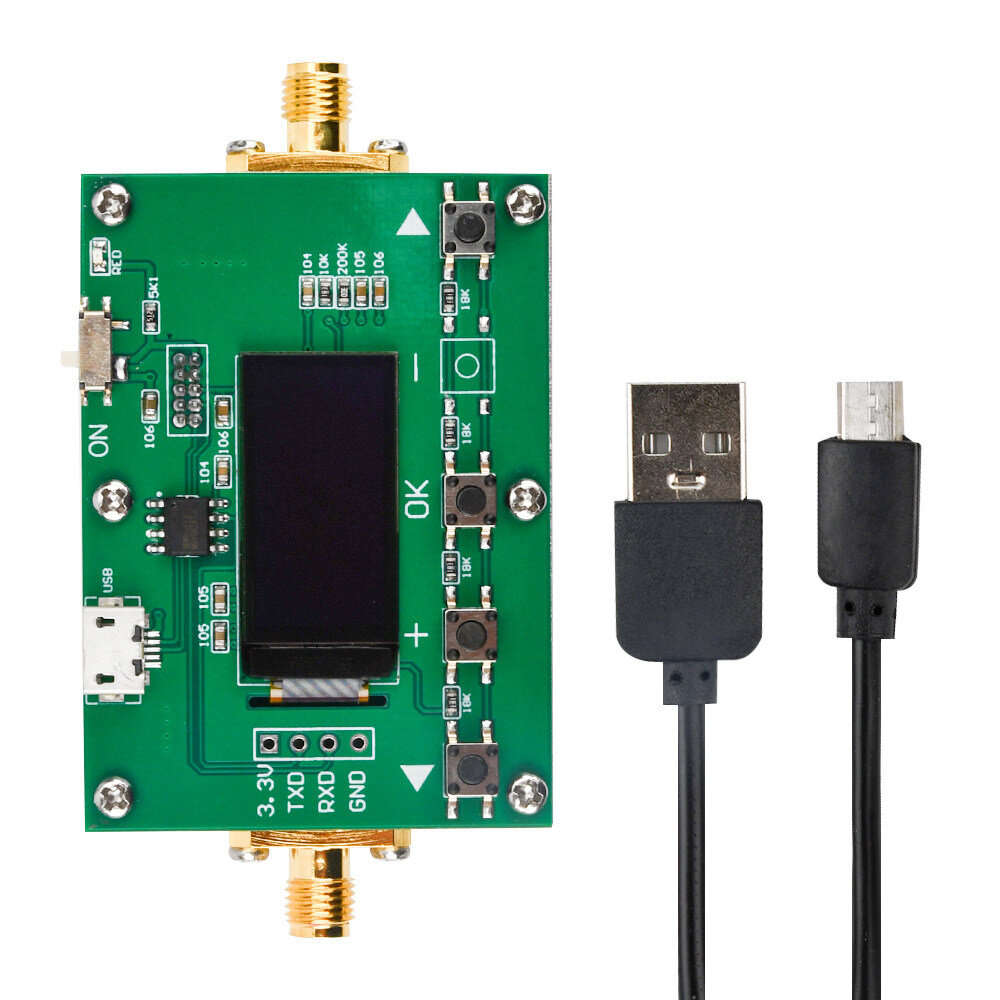

1 x RF Attenuator Module
