Specifications:
- Form Factor: 160mm × 90mm
- Connectivity:
Standard 40-pin GPIO header
Gigabit Ethernet RJ45 with PoE+ HAT+ support
2 × USB 3 sockets
microSD card socket for Compute Module 5 Lite modules
M.2 M key PCIe socket
4-pin fan connector
2 × MIPI DSI/CSI-2 FPC connectors (22-pin 0.5 mm pitch cable)
Raspberry Pi HAT+ connector
RTC battery socket
- Video:
2 × full-size High Definition Multimedia Interface 2.0 connectors
- Input Power:
External +5V USB-C PSU
Power button to wake and shut down Compute Module 5
Features:
1. Comprehensive Connectivity:
Equipped with a variety of connection options including two USB 3 sockets and a Gigabit Ethernet RJ45 port with PoE+ support, ensuring robust and high-speed data transfer capabilities.
2. Extendable Storage Options:
It features a microSD card socket for Compute Module 5 Lite modules and an M.2 M key PCIe socket, providing flexible and expandable storage solution for diverse application needs.
3. Enhanced Video Outputs:
With two full-size High Definition Multimedia Interface 2.0 connectors, users can exploit high-definition video output capabilities, making it suitable for multimedia and graphic-intensive projects.
4. Cooling and Power Management:
The board includes a 4-pin fan connector and an external +5V USB-C PSU with a power button, allowing reliable cooling and easy power management for seamless operation.
5. Versatile Design Interface:
It supports standard 40-pin GPIO headers and MIPI DSI/CSI-2 connectors, enhancing design versatility and enabling integration with various peripheral devices for customized projects.
Package Included:

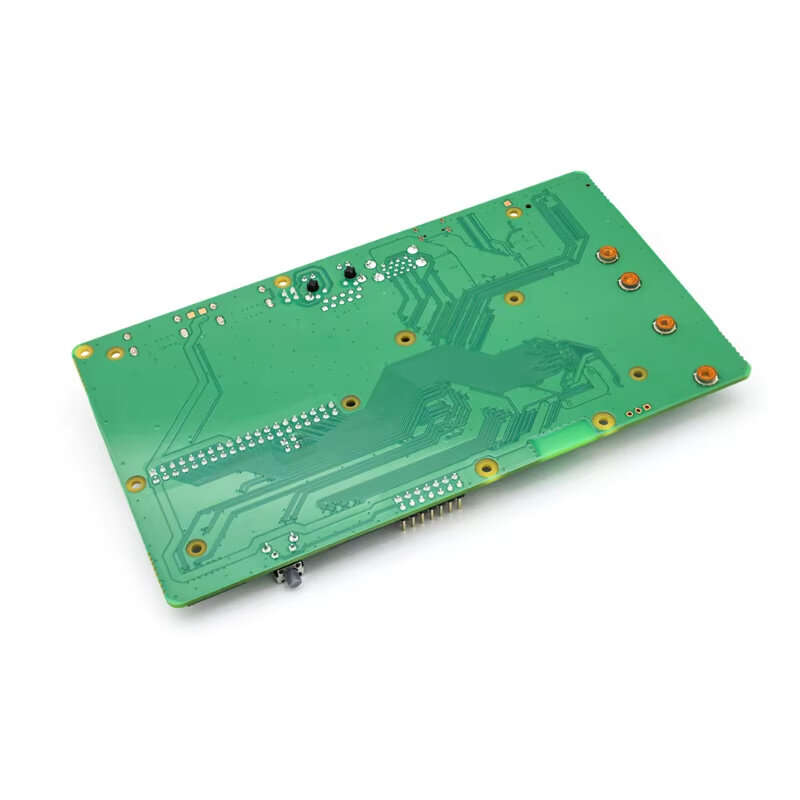

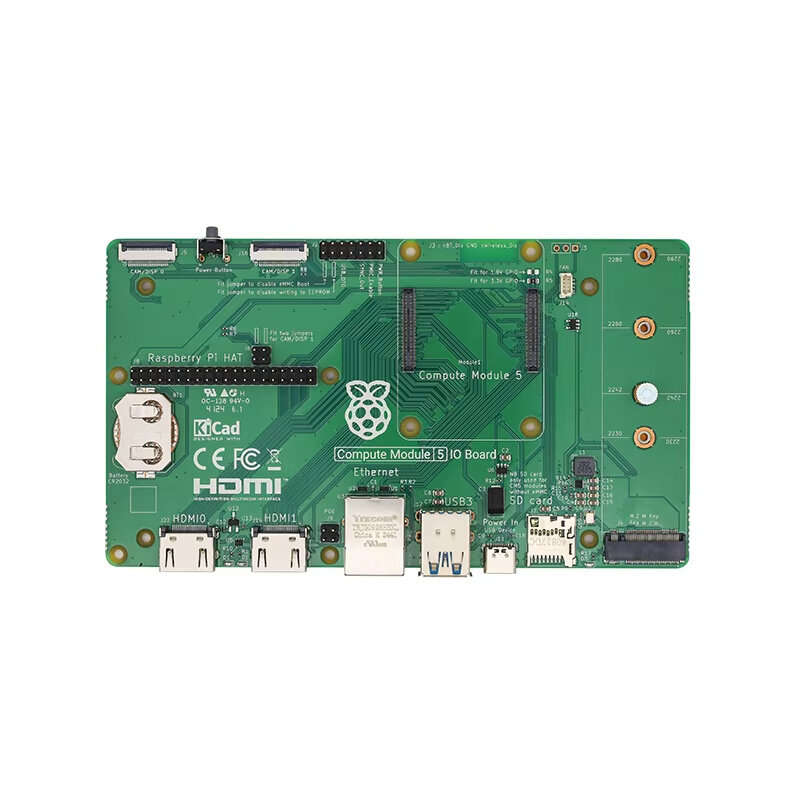

1 x Raspberry Pi Compute Module 5 IO Board
1 x External Antenna
1 x Protective Case
1 x USB-C Power Supply
1 x User Manual
