Grey Water Mini system 125L

Introductory Information

Grey Water : Shower, bath, bath basin, laundry

Black Water: Kitchen Zinc (fat and grease), Dishwasher (chemicals not good for garden), Toilet

In essence, grey water can’t be stored for more than 24 hrs before the water turns septic. We centralise the outlets from the bath, shower, bath basin and laundry to the Grey Water Mini. From there the water is disinfected with calcium hypochlorite (a plant friendly chlorine derivative) to remove pathogenic organisms (such as e-coli) and bacteria. The internal pump automatically activates (float switch) and the water is pumped out to your garden.

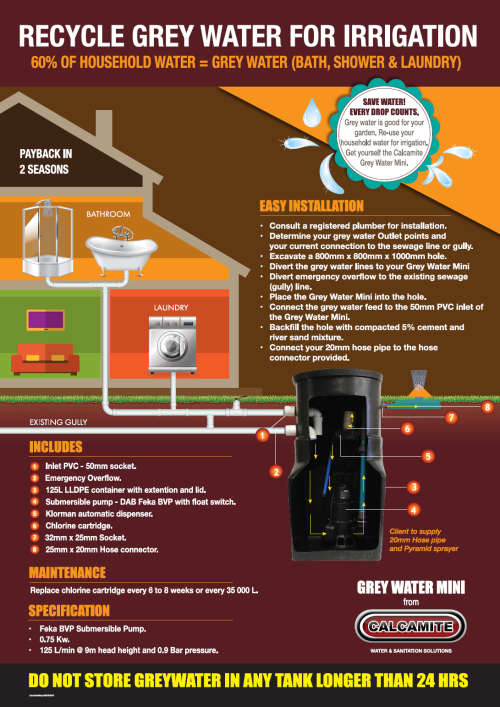

See the graphic attached of the GW Mini (it’s much simpler than it looks).

The MINI process capacity is (approx.’ 60 L per minute).

• Domestic application
• Plug and play unit (no assembly required)
• Included
  • DAB submersible pump with float switch for automated operation
  • All internal plumbing
  • Disinfectant dispenser
  • 1^st disinfectant cartridge
  • All seals, inlet, outlet and overflow
  • Hose pipe connection ready (outlet size can be changed to your requirements)

Disinfectant : minimise bacteria and pathogenic organisms (such as E.coli)

• Calcium Hypochlorite (chlorine derivative)
• Plant friendly
• Each cartridge does 35 000 L of water.
• You 1^st cartridge is already in the system

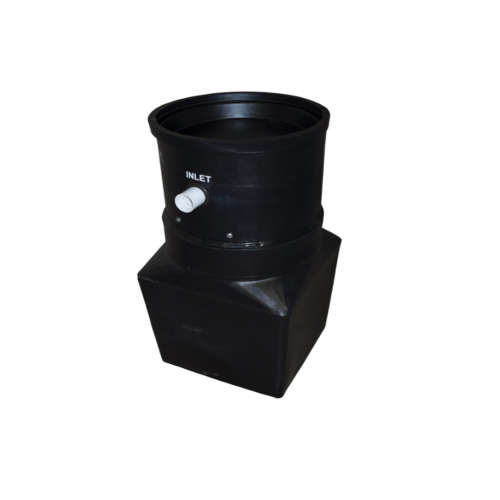

Mini : Dimensions L 500mm x Width 500mm x Height 930mm
