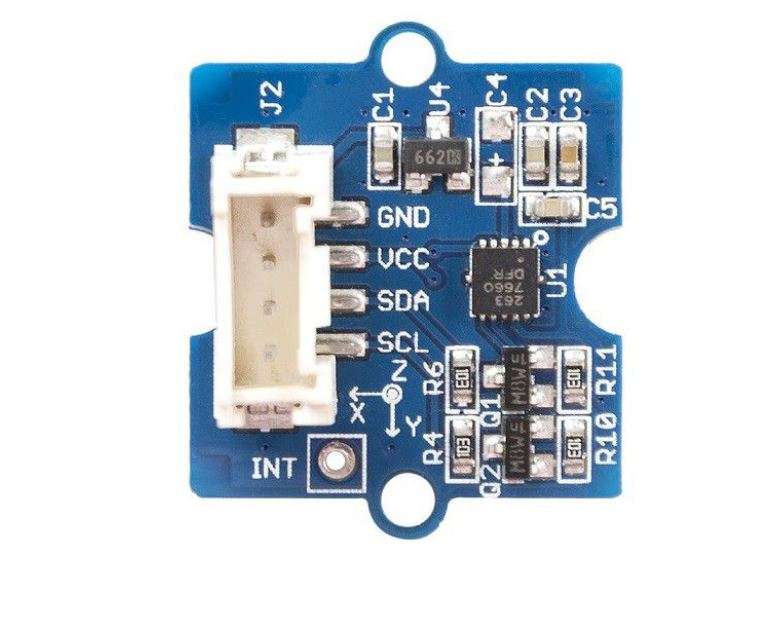

Grove - 3-Axis Digital Accelerometer (1.5g)
Product Description
3-Axis Digital Accelerometer is the key part in projects like orientation detection, gesture detection, and motion detection. This 3-Axis Digital Accelerometer(1.5g) is based on Freescale's low power consumption module, MMA7660FC with Digital Output I2C. It features up to 10,000g high shock survivability and configurable Samples per Second rate.
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.
This module can be used for sensing data changes, product orientation, and gesture detection through an interrupt pin (INT). For generous applications that don't require too large measurement range, this is a great choice because it's durable, energy-saving, and cost-efficient.
Product Features
- Grove compatible interface
- 3 axis motion/orientation sensing
- Digital Output (I2C)
- 10,000 g shock survival
- Working voltage: 3.0 - 5.5V
- Off Mode Current: 0.4A
- Standby Mode Current: 2A
- Test Range: 1.5g
- Sensitivity: 21LSB/g
- Dimensions: 20mm x 20mm x 15mm
Product Resources
Grove - Introduction to Grove
Grove - 3-Axis Digital Accelerometer Eagle File
GitHub repository for Grove - 3-Axis Digital Accelerometer (1.5g)

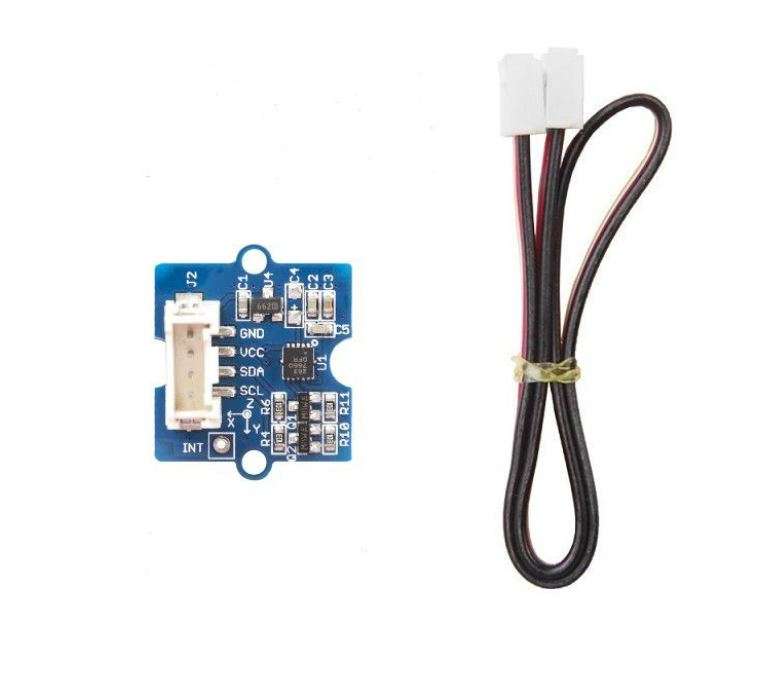

Product Package
- 1 x Grove - 3-Axis Digital Accelerometer (1.5g)
- Grove 4 Pin Buckled 20cm Cable
Please note: Locally Stocked. Available for Immediate Shipping!
