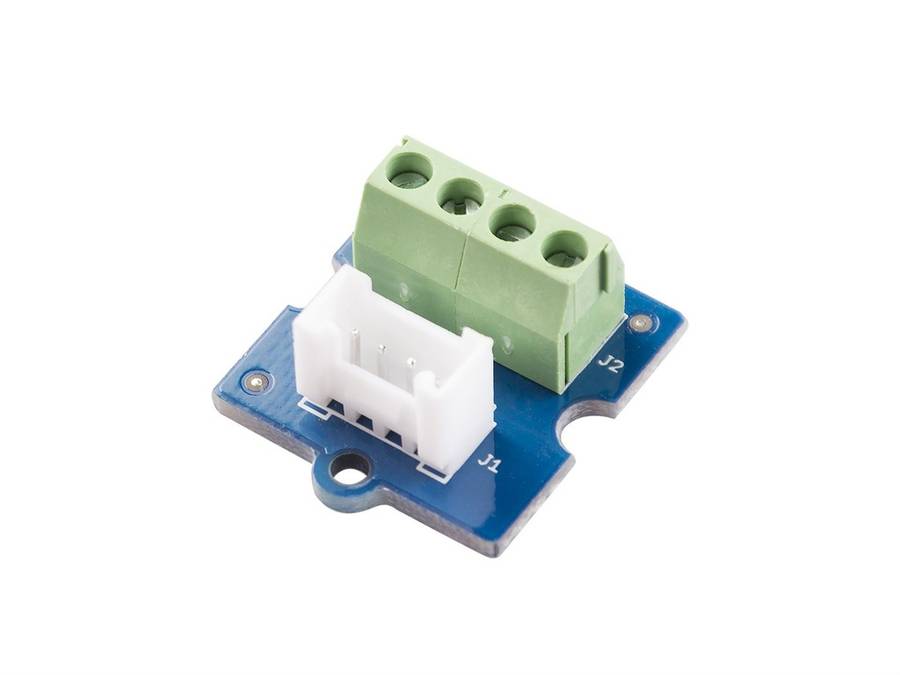

Grove - Screw Terminal

Give your projects the connectivity they need with the Grove — Screw Terminal. This easy-to-use connection offers a 3.5mm diameter hole, making it suitable for most device connections. It also features a versatile Grove unified socket that ensures "Plug and Play" and works with many different applications.

Grove - Screw Terminal with four 3.5mm pitch pins rated up to 6A. The terminal can accept 30 to 20AWG wire. It is the most commonly used pitch screw terminal.

Features

• 3.5mm pitch pin: The 3.5mm diameter hole is suitable for most connections between devices
• High current/voltage adaptable: Rate up to 125V @ 6A
• Grove unified socket: The product ensures "Plug and Play" and could be versatile for various applications of Grove

Grove - Screw Terminal with four 3.5mm pitch pins rate up to 125V @ 6A. The terminal can accept 30 to 20AWG wire. It is the most common pitch screw terminal. This grove has four ports, including GND, VCC, and two other undefined ports. Screw terminals are commonly used to connect a chassis ground, such as on a record player or a surge protector. Most public address systems in buildings also use them for speakers, and sometimes for other outputs and inputs.

We have developed more than 400 Grove modules, covering a wide range of applications that can fulfill various needs. Click to explore the Grove Sensor family and get started to Grove your Idea. For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.

Technical Specification

• Dimensions: 89mm x140mm x12mm
• Weight: G.W 10g
• Operating Voltage: 3.3~5V
• Pitch pins: ×4
• Diameter: 3.5mm
