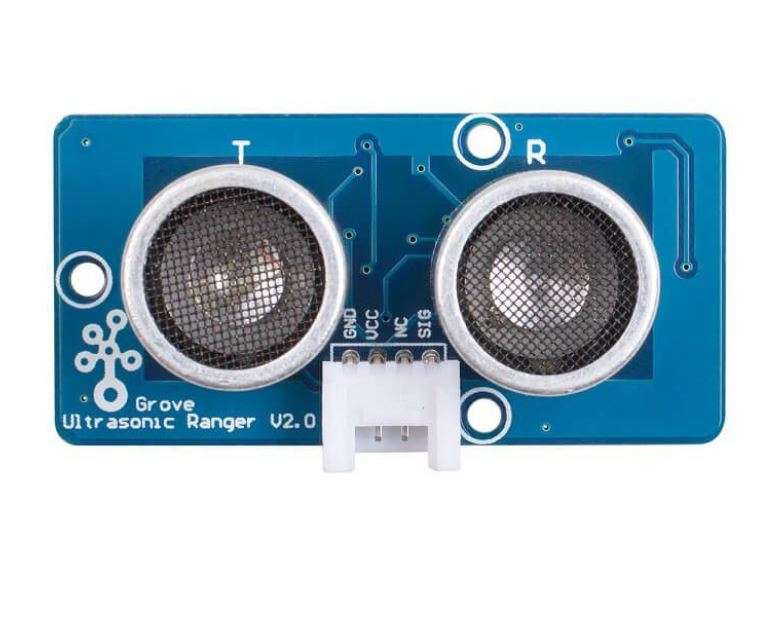

Grove - Ultrasonic Ranger
Product Description
This Grove-ultrasonic sensor is a non-contact distance measurement module that is compatible with the Grove system. It's designed for easy modular project usage with industrial performance. It can measure from 3cm to 350cm with an accuracy up to 2mm. It is a perfect ultrasonic module for distance measurement, proximity sensors, and ultrasonic detectors.

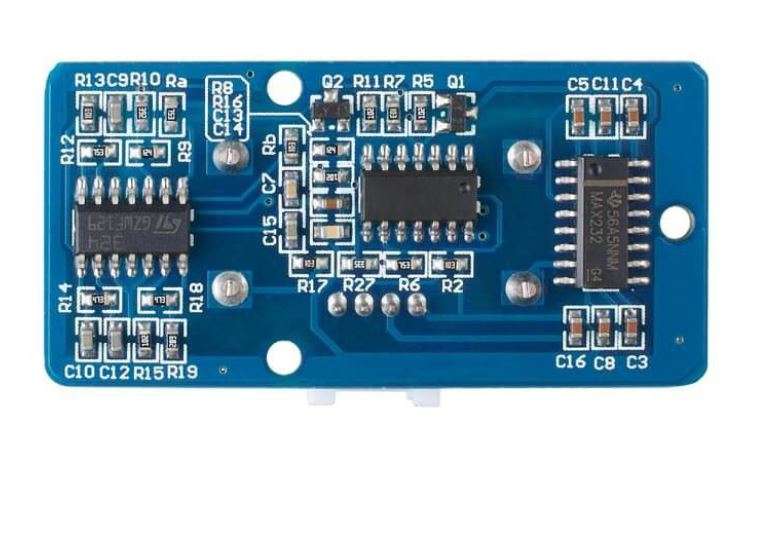

Compared with traditional ultrasonic modules HC-SR04, this module integrates a single-chip microcomputer, and the transmitting signal and the receiving signal share one pin by time-division multiplexing, so only one I/O pin is occupied. Another difference is that HC-SR04 only supports 5V voltage, while this module supports 5V and 3.3V. As we know, the Raspberry pi I/O only supports 3.3V. Therefore, this Grove - Ultrasonic Distance Sensor can be directly connected to the I/O of the Raspberry Pi, but HC-SR04 needs to use a voltage conversion circuit.
If you want to use this ultrasonic module with Raspberry Pi, you can get grove HAT for Raspberry Pi.
Note: HC-SR04 is not included in the packing list.
Product Features
- 3.3V / 5V compatible, wide voltage level: 3.2V~5.2V
- Only 3 pins needed, save I/O resources
- Wide measurement range: 3cm ~ 350cm
- Easy to use: grove connector, plug, and play
- Arduino library ready
Product Specs
- Operating Voltage: 3.2~5.2V
- Operating Current: 8mA
- Ultrasonic Frequency: 40kHz
- Measuring Range: 3cm to 350cm
- Resolution: 1cm
- Measurement Angle: 15 degree
- Dimensions: 50mm x 25mm x 16mm
For all Grove users (especially beginners), there are guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before you use the product.
Product Resources
Introduction to Grove
Grove - Ultrasonic Ranger schematic
Grove - Ultrasonic Ranger library

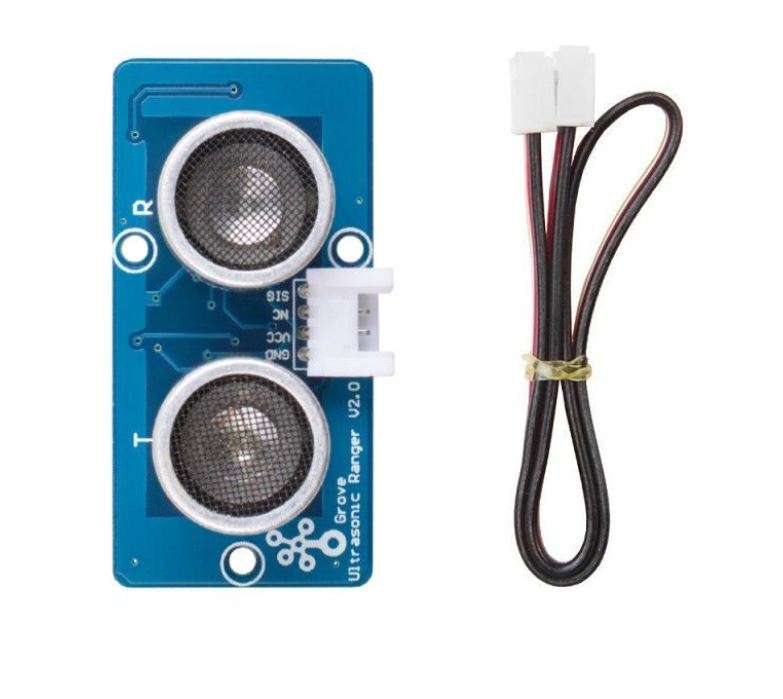

Product Package
- 1 x Grove - Ultrasonic Ranger
- Grove 4 Pin Buckled 20cm Cable
