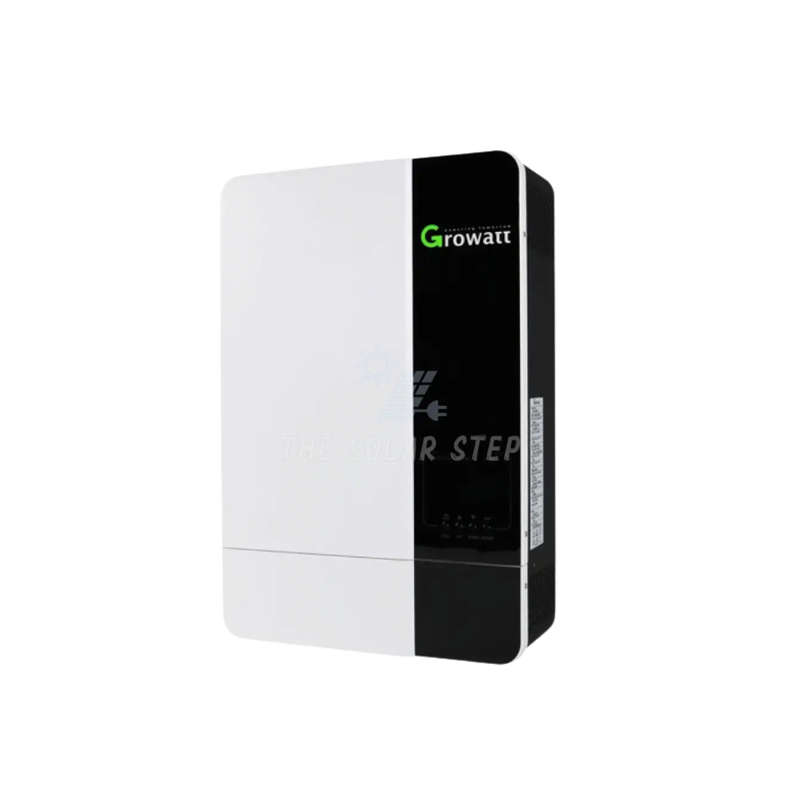

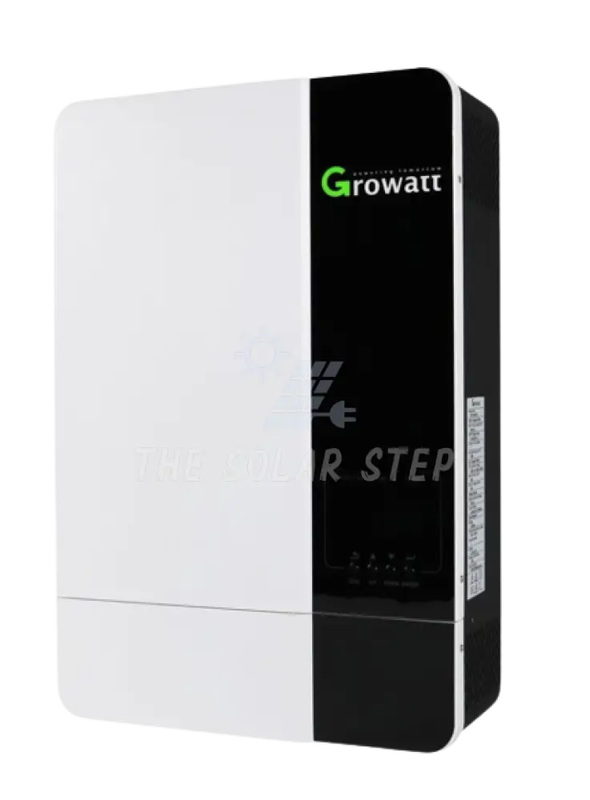

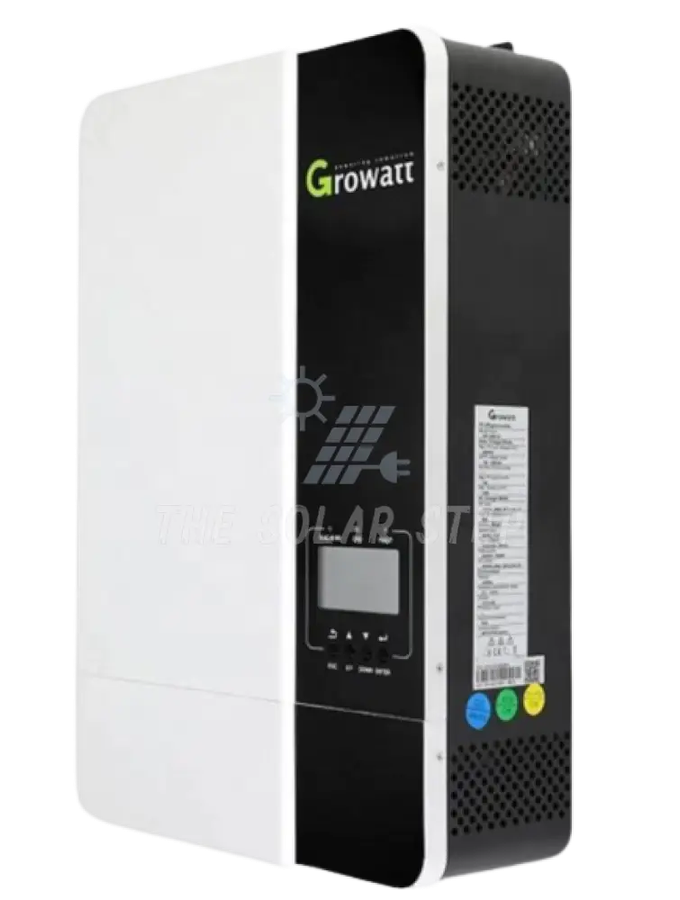

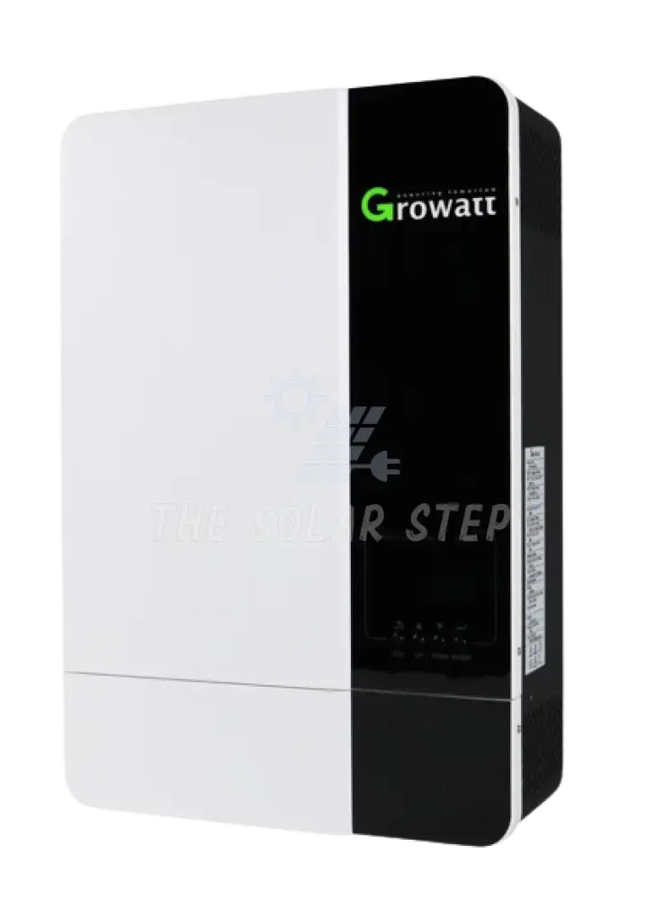

5KVA / 5000W Growatt SPF 5000 Hybrid Inverter 48V + WIFI
The Growatt SPF 5000 Hybrid Inverter is a powerful and versatile solar energy solution designed for residential and commercial applications. With a maximum PV input voltage of 450VDC, this high-efficiency off-grid and hybrid inverter maximizes solar energy harvesting and seamlessly converts it into reliable, usable power.
Features & Benefits:
-Hybrid Functionality Operates with or without a battery, providing flexible energy solutions for both grid-tied and off-grid setups.
-Advanced MPPT Charge Controller Integrated Maximum Power Point Tracking (MPPT) optimizes solar charging, enhances energy efficiency, and extends battery life.
-Battery Management & Longevity Supports equalization charging, which improves battery performance and lifespan by preventing capacity loss over time.
-Configurable Power Prioritization Select whether to prioritize solar or grid power for charging, ensuring your energy system adapts to your specific needs.
-Seamless Energy Management Automatically switches between solar, grid, and battery power, maximizing energy savings and providing backup power during outages.
Optimized for Energy Independence
The Growatt SPF 5000 ES offers a highly adaptable solar inverter solution, perfect for homeowners and businesses looking to reduce electricity costs, increase energy independence, and ensure uninterrupted power supply. Whether you're setting up a battery-backed solar system or utilizing direct solar-to-grid energy, this inverter delivers high efficiency, durability, and smart energy control.
Functions
- Integrated MPPT charger controller.
- Equalization charging function.
- Use with Batteries or without.
- Max PV input up to 450vDC.
- Choose grid or solar input priority.
- WIFI/GPRS remote monitoring.
- Parallel up to 6 inverters.
- PV & Grid Power combine if PV energy is insufficient for load.
- Flexible schedule for charging and discharging the batteries.
General Specifications
- Module: SPF 5000 ES.
- Battery voltage: 48vDC.
- Battery type: Lithium/Lead-acid.
Inverter Output [AC]
- Rated Power: 5000W.
- AC Voltage Regulation (Battery): 230VAC ± 5%.
- Surge Power: 10000VA for 5 sec.
- Efficiency (Peak): 93%.
- Waveform: Pure sine wave.
- Transfer Time: 10ms 20ms.
Solar Charger
- Maximum PV Array Power: 6000W.
- MPPT Range @ Operating Voltage: 120VDC 430VDC.
- Maximum PV Array Open Circuit Voltage: 450vDC.
- Maximum Solar Charge Current: 100 A.
AC Charger
- AC Charge Current: 80A.
- AC Input Voltage: 230 VAC.
- Selectable Voltage Range: 230 VAC.
- Frequency Range : 50 Hz/60 Hz (Auto sensing).
Physical
- Protection degree: IP20.
- Height: 330 x 485 x 135mm.
- Weight: 12 kg
- Warranties: 2 Years
PACKAGE INCLUDE
1x HYBRID GROWATT INVERTER 5KVA 48V
1x WIFI DONGLE
1x USER MANUAL
Warranty & Installation Requirements:
- 2-Year Warranty on Inverter
- Installation must be performed by a qualified wireman or Master Electrician registered with the Department of Labour.
- A valid Electrical Certificate of Compliance (COC) must be issued after installation.
- Compliance with SANS 10142 is required.
- Warranty Claims Require:
- Installation photos
- A valid COC
- Proof of installation by a qualified professional
- Failure to meet these requirements may result in warranty voidance.
