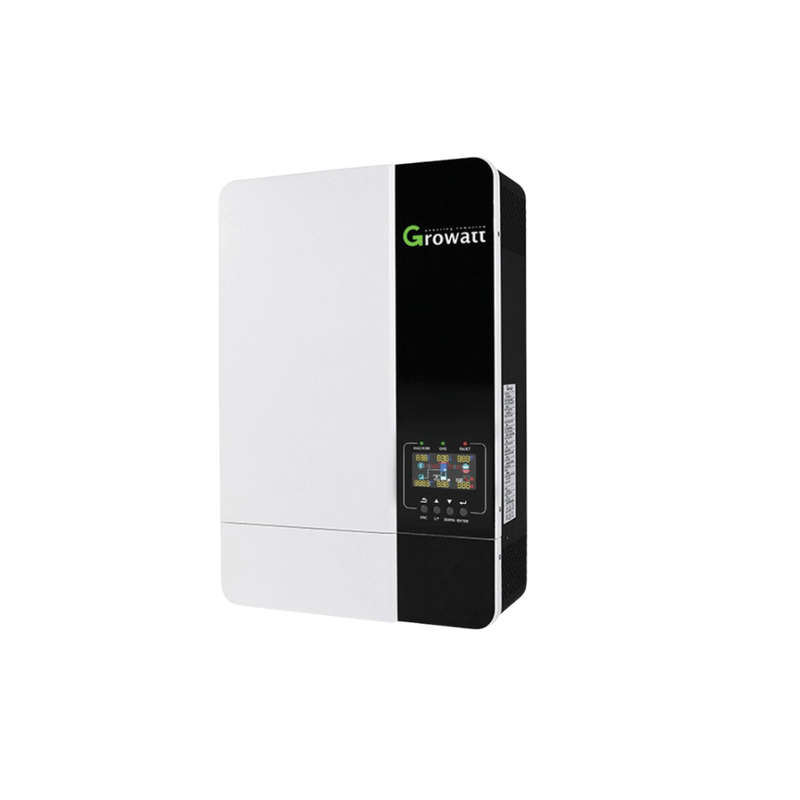

Growatt 5KVA / 5000W Hybrid Inverter 48V / MPPT + WiFi (SPF 5000)

Growatt 5KVA / 5000W Hybrid Inverter 48V / MPPT + WiFi (SPF 5000)

Description:

The Growatt SPF 5000 Hybrid Inverter is a versatile and efficient energy solution for residential and commercial solar systems. With a maximum PV input voltage of 450VDC, this inverter effectively converts solar power into usable energy. It operates with or without a battery, allowing users to customize their setup based on energy requirements.

Equipped with a built-in MPPT charge controller, the inverter optimizes battery charging and discharging to enhance performance and longevity. Equalization charging further improves battery maintenance. Configurable input priority lets you choose between grid and solar power for charging, ensuring optimal energy efficiency.

Key Features:

• 5KVA / 5000W Pure Sine Wave Output Provides stable power for sensitive electronics.
• Integrated MPPT Solar Charge Controller Maximizes solar energy efficiency.
• Battery-Free Operation Option Can power loads directly from solar energy.
• High PV Input Voltage (Up to 450VDC) Supports a wide range of solar panel configurations.
• Configurable Input Priority Select grid or solar as the primary energy source.
• Parallel Operation (Up to 6 Units) Expandable for higher power requirements.
• WiFi / GPRS Remote Monitoring Allows real-time tracking of system performance.
• Flexible Battery Charging Schedule Customize charging and discharging cycles.
• PV & Grid Power Combination Uses both sources if solar energy is insufficient.

Technical Specifications:

General

• Model: SPF 5000 ES
• Battery Voltage: 48V DC
• Battery Type: Lithium / Lead-Acid

Inverter Output (AC)

• Rated Power: 5000W
• Voltage Regulation (Battery Mode): 230V AC ±5%
• Surge Power: 10,000VA (for 5 sec)
• Peak Efficiency: 93%
• Waveform: Pure Sine Wave
• Transfer Time: 10ms 20ms

Solar Charger

• Maximum PV Array Power: 6000W
• MPPT Operating Voltage Range: 120V 430V DC
• Maximum PV Array Open Circuit Voltage: 450V DC
• Maximum Solar Charge Current: 100A

AC Charger

• Maximum AC Charge Current: 80A
• AC Input Voltage: 230V AC
• Selectable Voltage Range: 230V AC
• Frequency Range: 50Hz / 60Hz (Auto-Sensing)

Physical & Protection

• Protection Rating: IP20
• Dimensions: 330mm x 485mm x 135mm
• Weight: 12kg

What's in the Box:

• 1 x Growatt SPF 5000 Hybrid Inverter (5KVA, 48V)
• 1 x WiFi Dongle
• 1 x User Manual

Warranty & Installation Requirements:

• 2-Year Manufacturer Warranty
• Must be installed by a qualified electrical wireman or master electrician.
• A valid Certificate of Compliance (COC) is required after installation, following SANS 10142 standards.
• Warranty claims require installation photos, a valid COC, and proof of a qualified installer.
