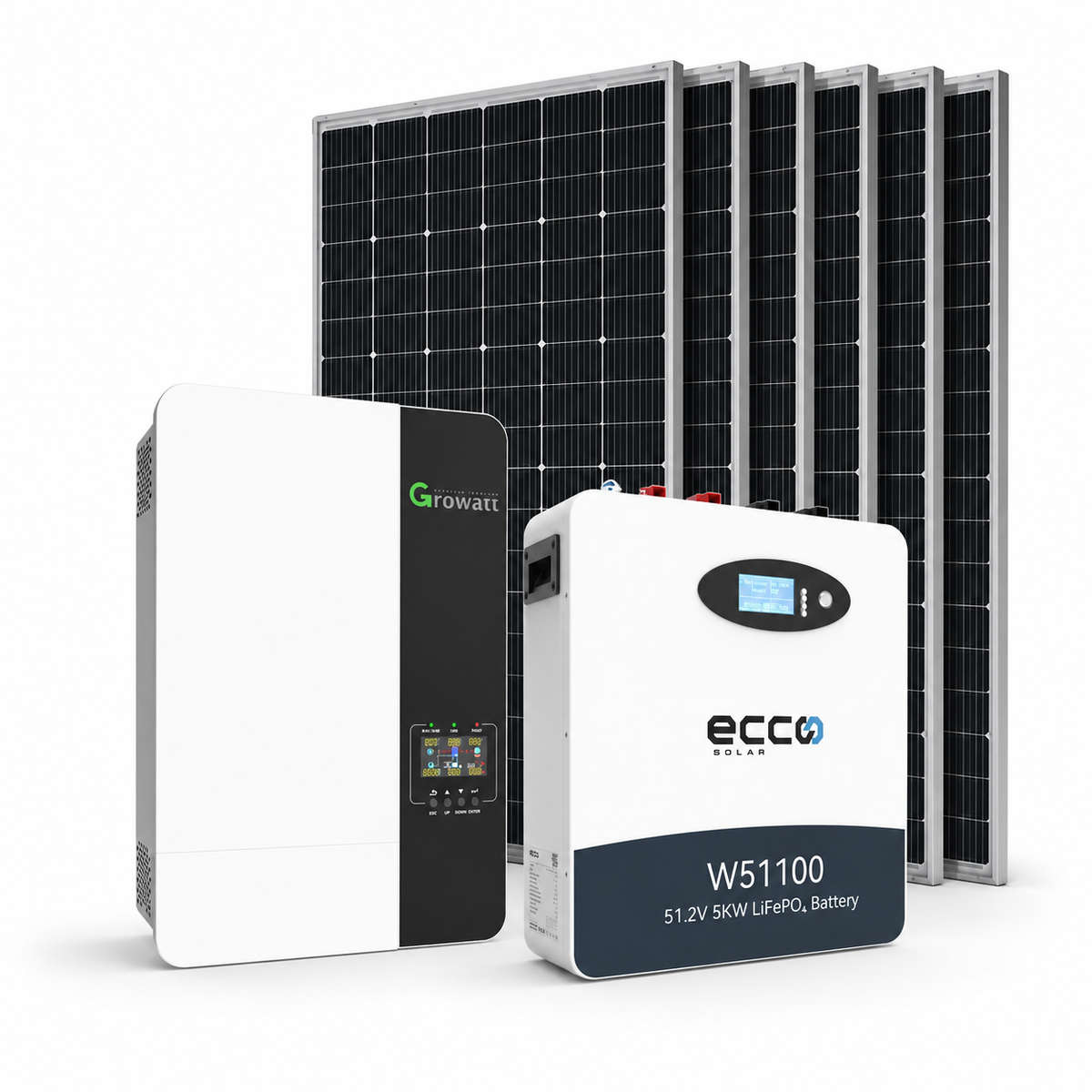

Growatt 5kW Inverter + ECCO 5.12kWh Lithium Battery + 6 × 620W Solar Panel Combo
The Growatt 5kW inverter, ECCO 5.12kWh lithium battery and 6 × 620W solar panel combo is a complete home solar system in South Africa designed for reliable backup power, solar energy generation and reduced dependence on the electricity grid.
This package combines the Growatt SPF 5000 ES Lite 5kW 48V hybrid solar inverter, an ECCO W51100 5.12kWh 51.2V 100Ah LiFePO4 battery and 6 × 620W mono bifacial solar panels, providing approximately 3.72kW of installed solar panel capacity.
It is ideal for customers searching for a 5kW solar system, inverter and battery combo, solar system for home, solar panels with inverter and battery, load shedding backup system or complete solar system South Africa.
What's Included
- 1 × Growatt SPF 5000 ES Lite 5kW 48V Inverter
- 1 × ECCO W51100 5.12kWh Lithium Battery
- 6 × 620W Mono Bifacial Solar Panels
- Total panel capacity: 3,720W / 3.72kW
Key System Features
- 5kW pure sine wave hybrid inverter
- 48V battery system
- 5.12kWh LiFePO4 lithium battery storage
- 6 × high-output 620W mono bifacial solar panels
- Approximately 3.72kW total solar panel capacity
- Built-in MPPT solar charging
- Growatt WiFi dongle included
- Battery communication via RS485 / RS232 / CAN
- Inverter can operate with or without a battery
- Suitable for residential solar and backup power
- Expandable inverter system
- Ideal for load shedding, solar self-consumption and backup power
Combo Specifications
| Specification | Details |
|---|
| Inverter | Growatt SPF 5000 ES Lite |
| Rated Inverter Output | 5,000W |
| Battery Voltage | 48V |
| Inverter Waveform | Pure Sine Wave |
| Max. Inverter PV Array | 6,000W |
| MPPT Range | 120450VDC |
| Max. PV Open Circuit Voltage | 500VDC |
| Max. Solar Charging Current | 100A |
| WiFi Monitoring | Included |
| Battery | ECCO W51100 |
| Battery Chemistry | LiFePO4 |
| Battery Capacity | 5.12kWh |
| Battery Voltage | 51.2V |
| Battery Capacity (Ah) | 100Ah |
| Max. Continuous Battery Output | 5,500W |
| Battery Communication | RS485 / RS232 / CAN |
| Battery Protection Rating | IP54 |
| Solar Panels | 6 × 620W Mono Bifacial |
| Total Solar Panel Capacity | 3,720W / 3.72kW |
| System Application | Home Solar / Backup Power / Solar Self-Consumption |
The Growatt inverter is rated at 5kW output with up to 6kW PV array capacity, while the ECCO battery provides 5.12kWh energy storage, 51.2V nominal voltage and 100Ah capacity.
Complete 5kW Solar System for South African Homes
This 5kW inverter and battery solar combo is well suited to homes that need reliable backup power for everyday essentials while also generating electricity from solar panels during the day.
The six 620W panels provide a combined rated output of 3.72kW, which can be used to power household loads and recharge the lithium battery when sufficient sunlight is available.
Depending on system design and consumption, it can support loads such as lighting, TVs, WiFi, computers, refrigeration and other household appliances. Actual system performance and backup time depend on the connected load, sunlight, battery settings and installation design.
Important Solar Panel Delivery Notice
Please note: Solar panels are large and fragile items and require special handling during transport.
Delivery charges for this combo will be calculated manually after your order is placed. Our team will contact you with the applicable delivery cost before dispatch.
Although every effort is made to package and transport panels safely, solar panels can be damaged or broken during transit due to their size and fragile glass construction. Customers should inspect all panels carefully when receiving the order and report any visible transit damage immediately.
Where possible, collection or dedicated transport for solar panels is recommended to reduce the risk of damage.
Warranty
The Growatt 5kW ES Lite inverter carries a 2-year warranty, while the ECCO W51100 lithium battery carries a 5-year warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master Electrician. A valid Electrical ...
