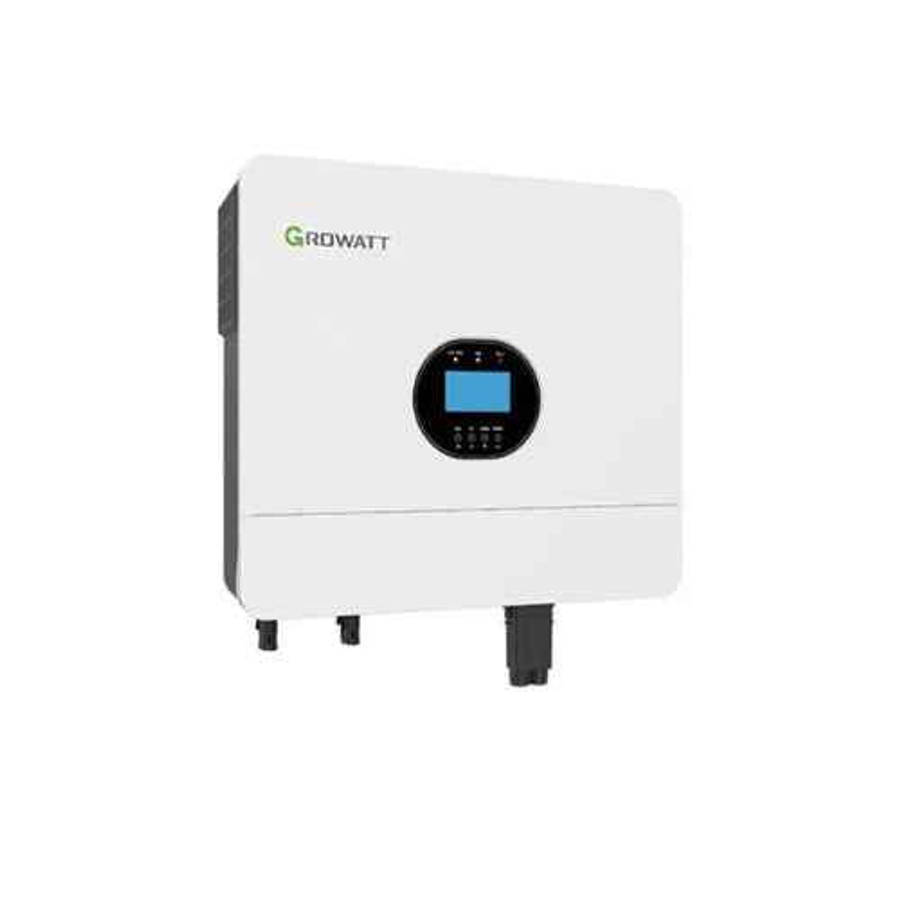

GROWATT 6KW 48VDC OFF-GRID SOLAR INVERTER SPF6000ES PLUS + Wifi Dongle

Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES Plus

The Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES Plus is a versatile off-grid solar inverter designed for high performance. This multifunctional system integrates an MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module in one device, making it ideal for off-grid backup power and self-consumption applications. The inverter can operate with or without batteries, depending on your system setup. Additional components such as PV modules, a generator, or a utility grid are required for a fully functional system. For optimal system architecture, please consult with your system integrator.

The Growatt SPF6000ES Plus inverter also features a WiFi / GPRS monitoring module, a plug-and-play device that allows users to track the status of their PV system remotely via mobile or web, ensuring ease of access from anywhere at any time.

Key Features:

• Output power factor up to 1.0
• 2x peak power capability for high demand loads
• Grid & Generator dual AC inputs with an integrated transfer switch
• Parallel capability: Connect up to 6 units for system expansion
• Plug-and-play quick connection PV terminals
• WiFi & GPRS remote monitoring for easy system management
• Timing charging and output control for optimized energy usage
• Built-in dust-proof kit for durability in harsh environments
• Pure sine wave AC output for high-quality energy supply
• Simultaneous power from solar and utility grid, perfect for hybrid systems
• CAN/RS485 for BMS communication for smart battery management
• WIFI Dongle INCLUDED for seamless integration

Inverter Specifications:

• Battery Voltage: 48VDC
• Battery Type: Compatible with Lithium and Lead-Acid batteries
• Rated Power: 6000VA / 6000W
• Parallel Capability: Yes, up to 6 units for increased capacity
• Surge Power: 12000VA (ideal for startup of high-power devices)
• Waveform: Pure Sine Wave
• Transfer Time: 10ms typical, max 20ms (for smooth power transition)

Solar Charger Specifications:

• Maximum PV Array Power: 8000W
• MPPT Range @ Operating Voltage: 120VDC 450VDC
• Max. Input Current per MPPT Tracker: 16A
• Maximum Solar Charger Current: 100A

AC Charger Specifications:

• Charge Current: 80A
• AC Input Voltage: 230VAC
• Selectable Voltage Range:
  • 170-280VAC (for personal computers)
  • 90-280VAC (for home applications)

Warranty & Installation:

• Warranty: 2 years
• Inverters and batteries must be installed by a qualified electrical wireman or master electrician with valid registration with the Department of Labour. A valid Electrical Certificate of Compliance (COC) must be issued upon installation, and all installations must comply with SANS 10142 standards. Warranty claims without installation photos, a valid COC, and proof of qualified installation will be rejected.
