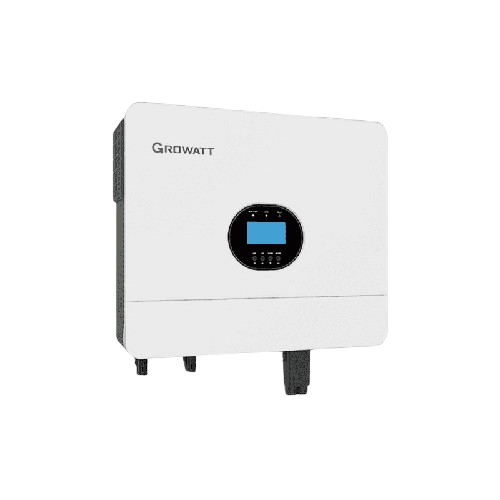

GROWATT 6kW dual MPPT 48V inverter with dedicated generator input and WIFI dongle included

WiFi dongle included- 6kVA / 6kW Pure Sine Wave 48V Inverter / 100A High Voltage MPPT / Parallel

Specifications :

• Model: SPF-6000-ES-PLUS
• Rated Power: 6kVA / 6kW
• System DC Voltage: 48Vdc

IP Rating :

• IP20
• Not recommended for installation location with high humidity
• If the inverter needs to be installed close to the ocean please make use of a dehumidifier

User manual available here

Main Features :

• Rated power at 6kW
• Pure Sine Wave
• 500Voc high PV input voltage
• Max PV. array power 8000W total
• ATS built-in to switch automatically between grid and generator
• Dedicated generator input
• Built-in anti-dust kit for harsh environment
• MC4 PV Input connector
• WiFi / GPRS monitor (optional)
• With the ability to work with or without battery
• RS485/CAN for lithium battery BMS
• Parallel up to 6 units (support 1 phase and 3 phase)

Inverter Output :

• AC Output: 220V-230V-240V AC

• Surge Power: 12000VA
• Peak Conversion Efficiency: 94%
• Transfer Time: 10ms (for personal computers) 20ms (for home appliances)
• Waveform: Pure sine wave
• Self consumption at 0 Load: < 70W

Solar Charger :

• Type of PV Array Input Terminal: MC4
• Max. PV Array Open Circuit Voltage: 500Vdc
• Max. PV Input Current/ Per string: 16A
• Number of PV Array Input: 2 Strings
• Max. PV Array Power: Each string: 4000Watt; Total 8000Watt
• MPPT Working Range: 120-450VDC
• Battery Overcharge Protection: 60VDC
• Max Solar Charge Current: 100A

AC Charger (Grid/Generator) :

• Max. Grid Charge Current: 80A
• Max. (AC+PV) Charge Current: 100A
• Protection: Overload, Short-circuit, Overcurrent, Overvoltage, Undervoltage, Over-Frequency, Under-Frequency, Overheat, Lighting, Surge Power.

Physical :

• Dimension: 460 x 395 x 132mm
• Net Weight: 13.5KG
• Communication interface: CAN/RS485/USB

Environment :

• Humidity: 5% -95% Relative Humidity (non-condensing)
• Altitude: <2000m
• Operating Temperature: 0°C ~55°C
• Storage Temperature: -15°C ~ 60°C
• Noise: <60db
• Certificate: CE

In the box :

• 1 x User Manual
• 1 x Communication Cable
• 1 x Current sharing Cable (SET)
• 1 x Parallel communication Cable
• 4 x MC4 Connectors
• 1 x Inverter
• 1 x battery cable cover
• 4 x mounting bolts
• 1 x Wifi dongle

IMPORTANT : THE CORRECT SETTINGS ON THE INVERTER WILL AID IN ENSURING OPTIMAL BATTERY LIFE. HERE IS A GUIDE ON INVERTER SETTINGS FOR THE LiFePO4 battery. HERE IS A GUIDE ON INVERTER SETTINGS FOR THE AGM / Gel battery.

Warranty :

• Please take note of the full warranty terms and conditions.
• Please take note that the warranty will only be valid for up to 3 inverters connected in parallel. Contact us for approval on warranty for more than 3 inverters connected in parallel.

This checklist can be used to assist with single inverter installation and parallel inverter installation.
