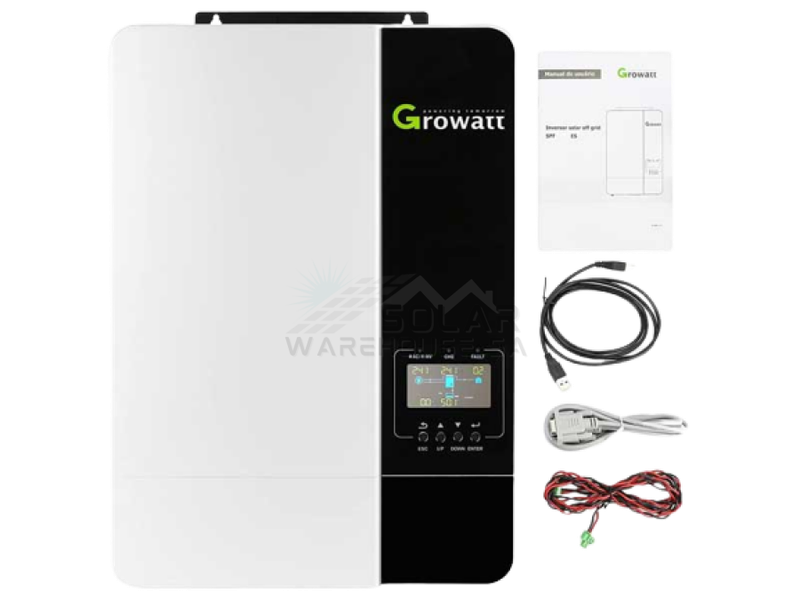

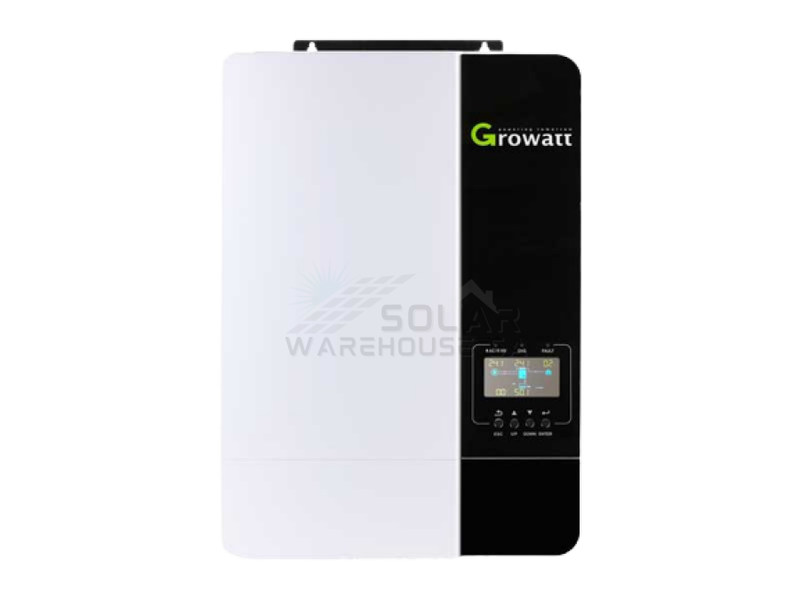

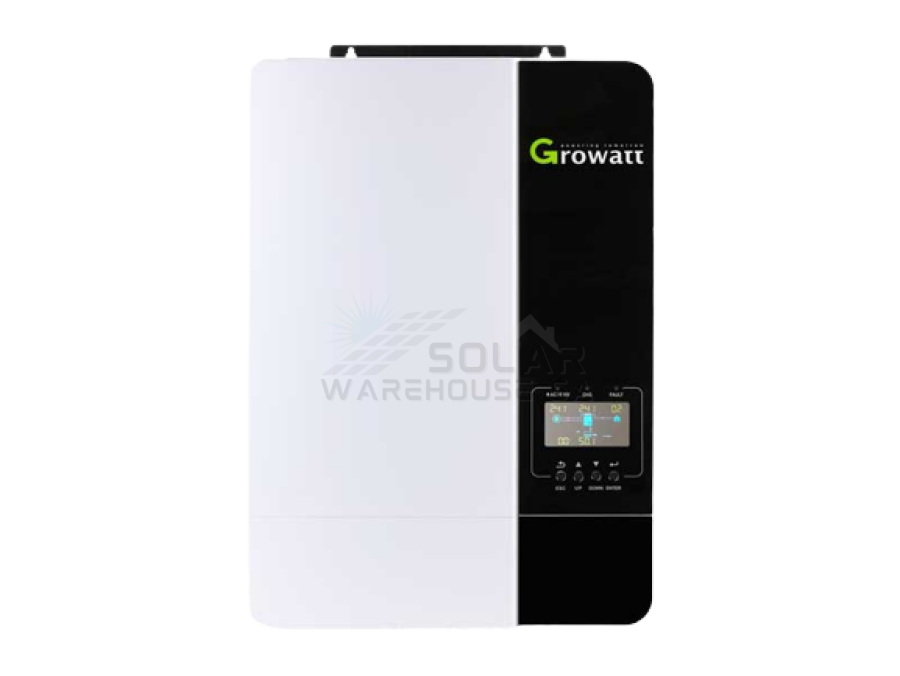

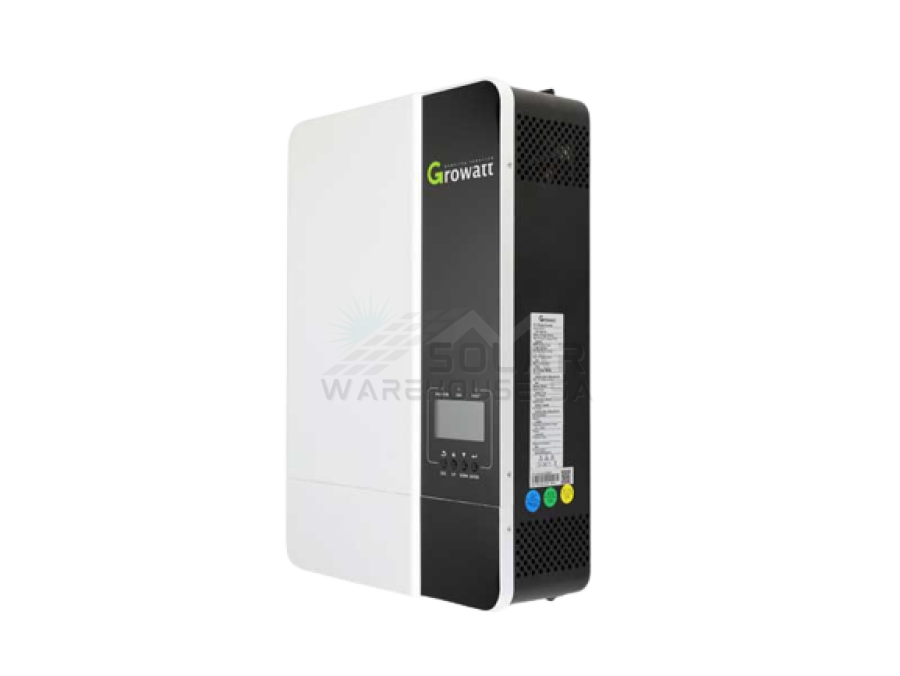

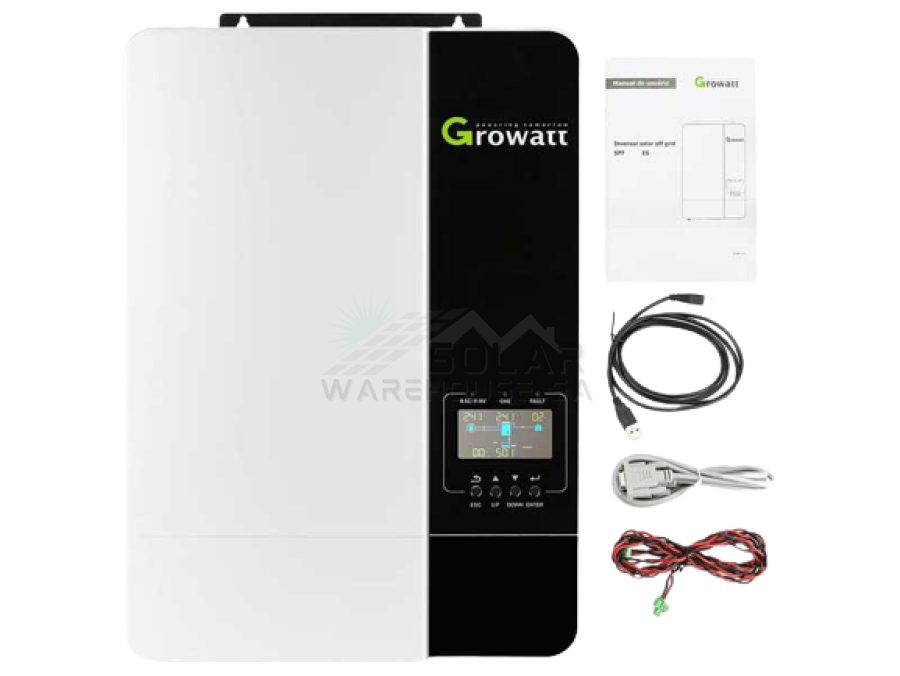

Growatt Hybrid Inverter 48V 5KW Inverter Pure Sine Wave (Including WIFI DONGLE) SPF 5000 ES

GROWATT SPF-5000 ES IS A 230(VAC) OUTPUT VOLTAGE OFF- GRID INVERTER FOR BACKUP POWER AND SELF CONSUMPTION APPLICATION, MAX PV INPUT VOLTAGE UP TO 450(VDC) . IT CAN ALSO WORK WITHOUT A BATTERY TO SAVE SYSTEM INVESTMENT COSTS.

Functions

• Integrated MPPT charger controller.
• Equalization charging function.
• Use with Batteries or without.
• Max PV input up to 450vDC.
• Choose grid or solar input priority.
• WIFI/GPRS remote monitoring.

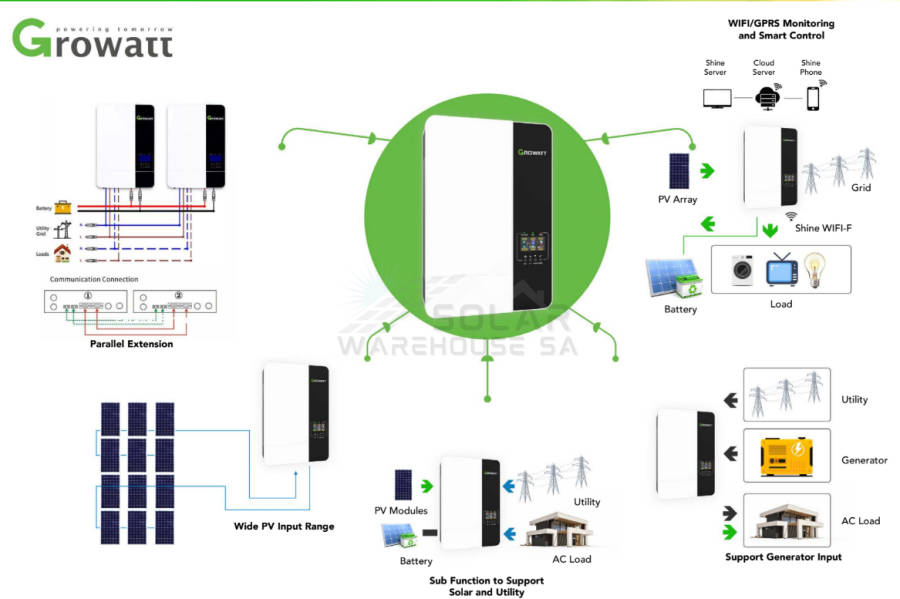

• Parallel up to 6 inverters.

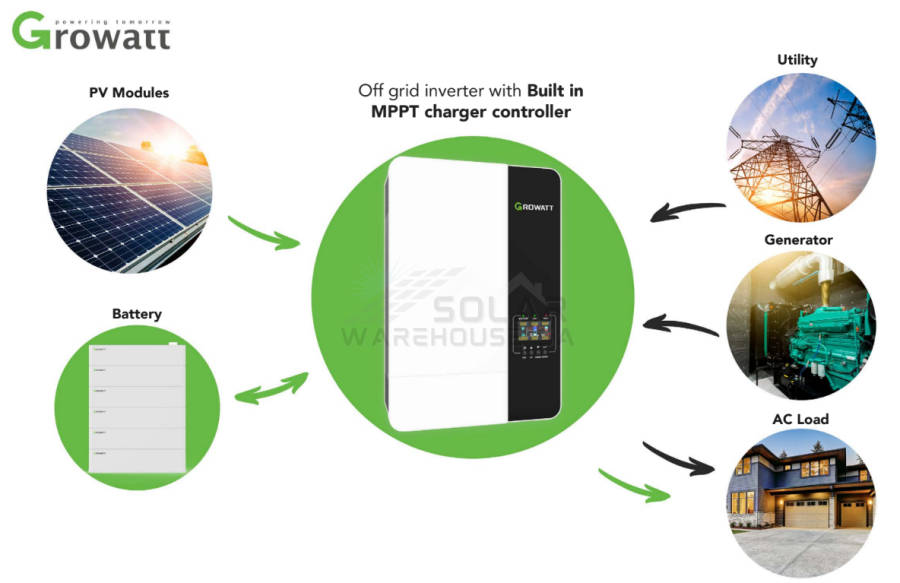

• PV & Grid Power combine if PV energy is insufficient for load.
• Flexible schedule for charging and discharging the batteries.

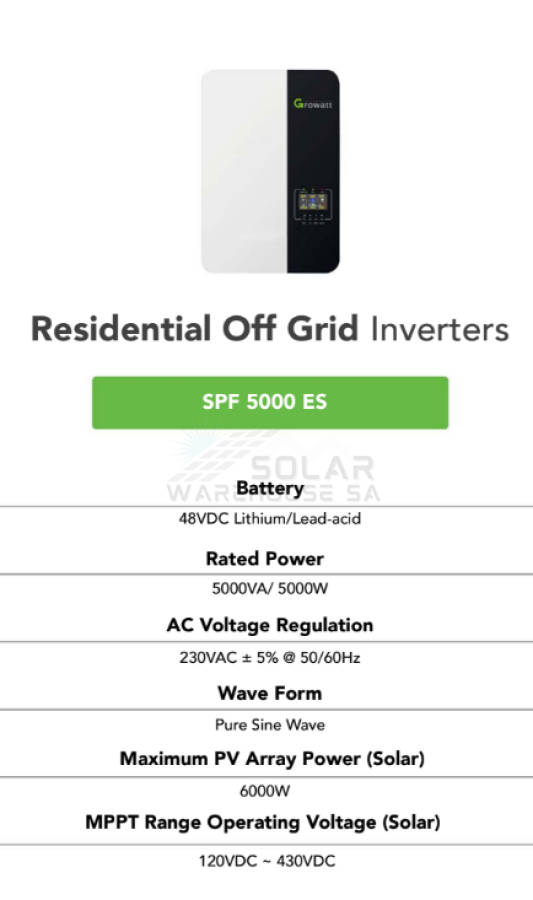

General Specifications

• Module: SPF 5000 ES.
• Battery voltage: 48vDC.
• Battery type: Lithium/Lead-acid.

Inverter Output [AC]

• Rated Power: 5000W.
• AC Voltage Regulation (Battery): 230VAC ± 5%.
• Surge Power: 10000VA for 5 sec.
• Efficiency (Peak): 93%.
• Waveform: Pure sine wave.
• Transfer Time: 10ms 20ms.

Solar Charger

• Maximum PV Array Power: 6000W.
• MPPT Range @ Operating Voltage: 120VDC 430VDC.
• Maximum PV Array Open Circuit Voltage: 450vDC.
• Maximum Solar Charge Current: 100 A.

AC Charger

• AC Charge Current: 80A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 230 VAC.
• Frequency Range : 50 Hz/60 Hz (Auto sensing).

Physical

• Protection degree: IP20.
• Height: 330 x 485 x 135mm.
• Weight: 12 kg
• Warranties: 2 Years
  All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
