Integrated MPPT charger controller.
Equalization charging function.
Max PV input up to 450vDC.
Choose a grid or solar input priority.
WIFI/GPRS remote monitoring.
Parallel up to 6 inverters.
PV & Grid Power combine if PV energy is insufficient for load.
Flexible schedule for charging and discharging the batteries.
Warranty: 2 years
General Specifications

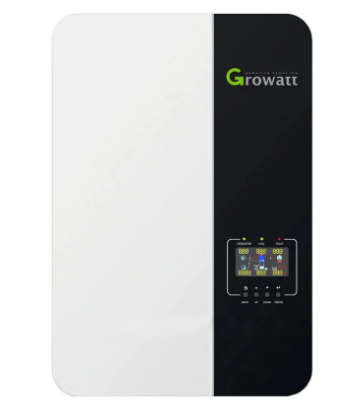

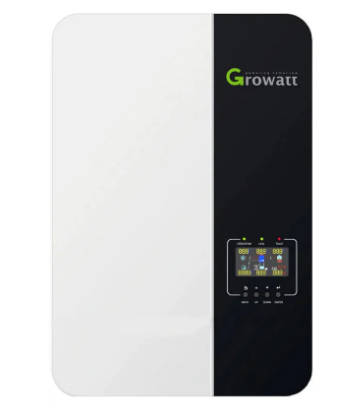

Module: SPF 5000 ES.
Battery voltage: 48vDC.
Battery type: Lithium/Lead-acid.
Inverter Output [AC]
Rated Power: 5000W.
AC Voltage Regulation (Battery): 230VAC 5%.
Surge Power: 10000VA for 5 sec.
Efficiency (Peak): 93%.
Waveform: Pure sine wave.
Transfer Time: 10ms - 20ms.
Solar Charger
Maximum PV Array Power: 6000W.
MPPT Range @ Operating Voltage: 120VDC - 430VDC.
Maximum PV Array Open Circuit Voltage: 450vDC.
Maximum Solar Charge Current: 100 A.
AC Charger
AC Charge Current: 80A.
AC Input Voltage: 230 VAC.
Selectable Voltage Range: 230 VAC.
Frequency Range: 50 Hz/60 Hz (Auto sensing).
Height: 330 x 485 x 135mm.
Weight: 12 kg.
Warranty: 12 Months Repair
Warranty Condition:
A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
