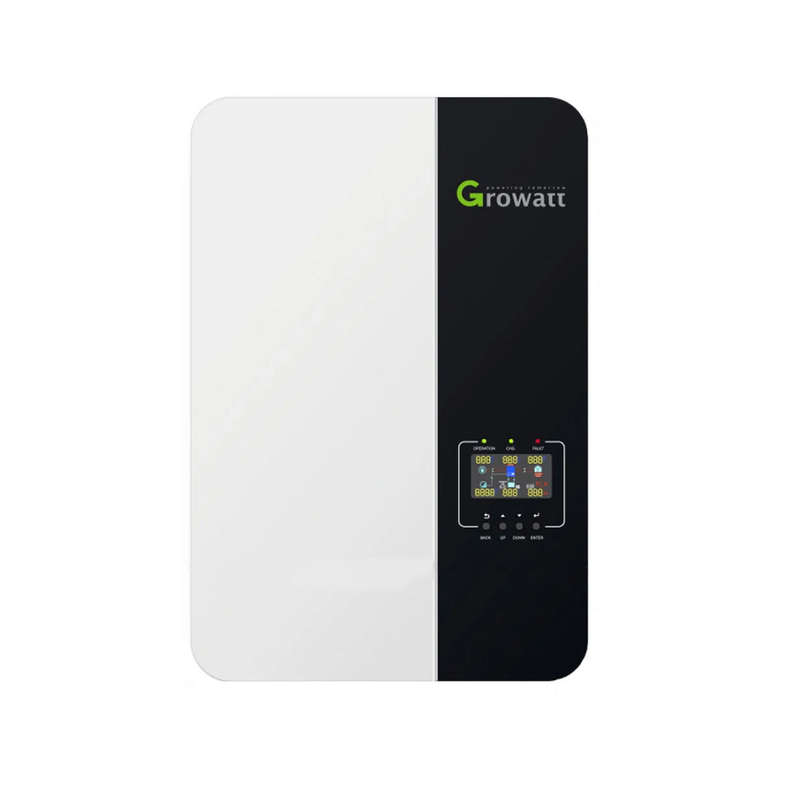

Growatt SPF 5000 ES 5kVA 5kW 48V Hybrid Inverter with WiFi

Functions

Integrated MPPT charger controller.
Equalization charging function.
Max PV input up to 450vDC.
Choose grid or solar input priority.
WIFI/GPRS remote monitoring.
Parallel up to 6 inverters.
PV & Grid Power combine if PV energy is insufficient for load.
Flexible schedule for charging and discharging the batteries.
Warranty: 2 years

General Specifications

Module: SPF 5000 ES.
Battery voltage: 48vDC.
Battery type: Lithium/Lead-acid.

Inverter Output [AC]

Rated Power: 5000W.
AC Voltage Regulation (Battery): 230VAC ± 5%.
Surge Power: 10000VA for 5 sec.
Efficiency (Peak): 93%.
Waveform: Pure sine wave.
Transfer Time: 10ms - 20ms.

Solar Charger

Maximum PV Array Power: 6000W.
MPPT Range Operating Voltage: 120VDC - 430VDC.
Maximum PV Array Open Circuit Voltage: 450vDC.
Maximum Solar Charge Current: 100 A.

AC Charger

AC Charge Current: 80A.
AC Input Voltage: 230 VAC.
Selectable Voltage Range: 230 VAC.
Frequency Range : 50 Hz/60 Hz (Auto sensing).

Physical

Protection degree: IP20.
Height: 330 x 485 x 135mm.
Weight: 12 kg.

Download User Manual
