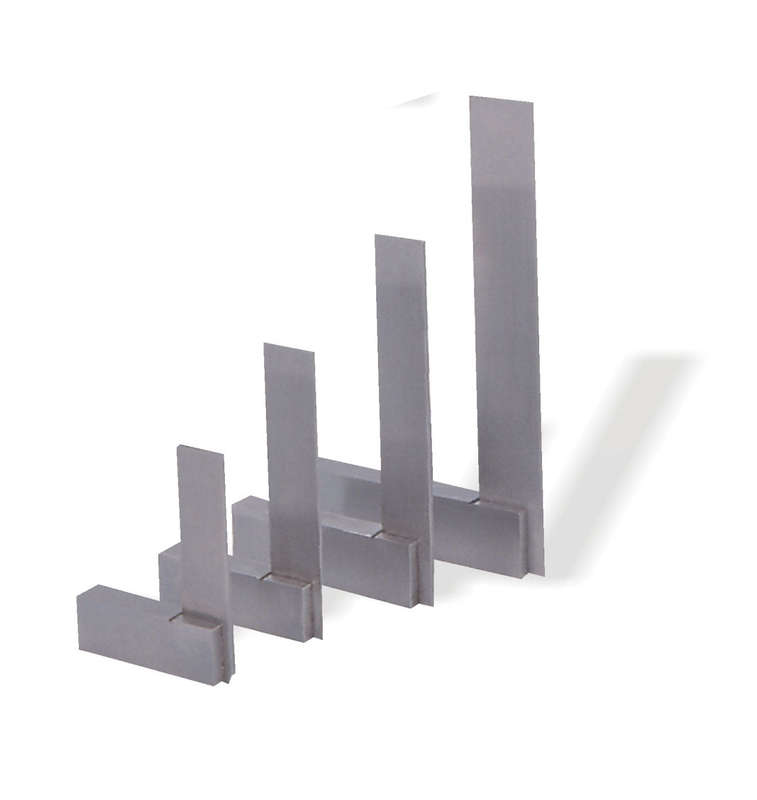

Groz Square Engineer Ssa/4 100 Mm

GROZ SQUARE ENGINEERS SSA/4 100MM

Internal and External Squareness as per

BS 939 Grade B

Useful for setting up and checking jobs where extreme accuracy isrequired,

Hardened spring steel blades permanently fixed to the stock by meansof tapered self-locking rivets which ensure complete rigidity,

Blade and stock are precisely ground to ensure straightness andparallelism,

Working edges of the blades are lapped for enhanced accuracy,

Groove on the inner corner of the stock aids in the clearance of burror dirt

CODE: GRO6505

BARCODE: 8901486010021

HEIGHT: 1.7cm

LENGTH: 13.5cm

WIDTH: 8.7cm

WEIGHT: 0.16kg

OVERALL LENGTH: 100mm

STRAIGHTNESS OF BLADE EDGES: 10 microns

FLATNESS OF WORKING FACES OF STOCK: 10 microns

PARALLELISM OF WORKING FACES OF STOCK: 5 microns

PARALLELISM OF SIDE FACES OF STOCK: 30 microns

SQUARENESS OF BLADE EDGES TO WORKING: 16 microns

FACES OF STOCK

LATERAL SQUARENESS OF BLADE TO BASE: 300 microns

OF STOCK
