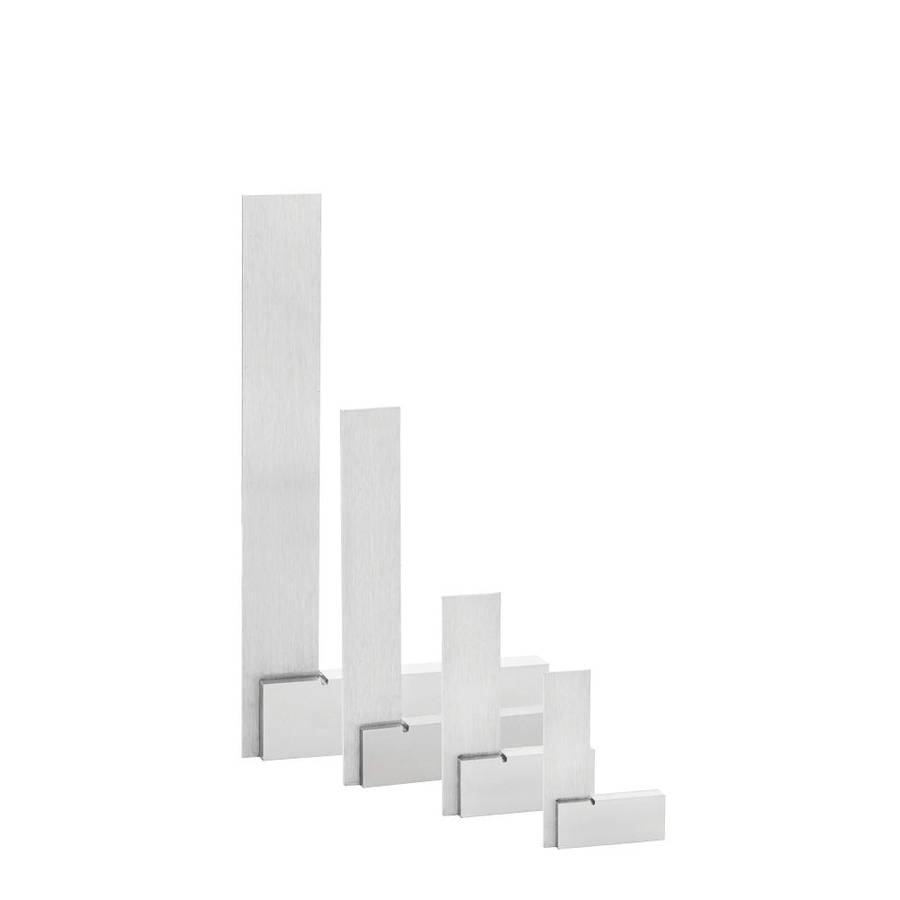

Groz Square Engineer Ssa/6 150 Mm

GROZ SQUARE ENGINEERS SSA/6 150MM

Internal and External Squareness as per

BS 939 Grade B

Useful for setting up and checking jobs where extreme accuracy isrequired,

Hardened spring steel blades permanently fixed to the stock by meansof tapered self-locking rivets which ensure complete rigidity,

Blade and stock are precisely ground to ensure straightness andparallelism,

Working edges of the blades are lapped for enhanced accuracy,

Groove on the inner corner of the stock aids in the clearance of burror dirt

CODE: GRO6515

BARCODE: 8901486010038

HEIGHT: 1.7cm

LENGTH: 19.4cm

WIDTH: 11.4cm

WEIGHT: 0.31kg

OVERALL LENGTH: 150mm

STRAIGHTNESS OF BLADE EDGES: 10 microns

FLATNESS OF WORKING FACES OF STOCK: 10 microns

PARALLELISM OF WORKING FACES OF STOCK: 5 microns

PARALLELISM OF SIDE FACES OF STOCK: 50 microns

SQUARENESS OF BLADE EDGES TO WORKING: 16 microns

FACES OF STOCK

LATERAL SQUARENESS OF BLADE TO BASE: 300 microns

OF STOCK
