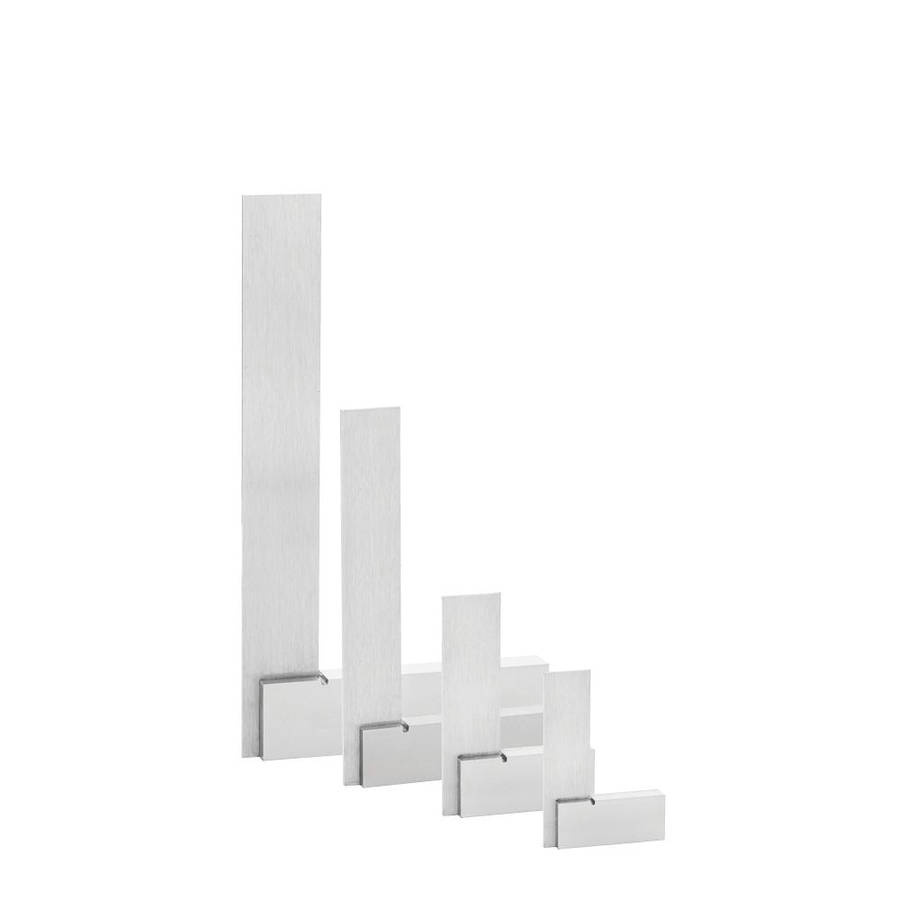

Groz Square Engineer Ssa/9 225 Mm

GROZ SQUARE ENGINEERS SSA/9 225MM

Internal and External Squareness as per

BS 939 Grade B

Useful for setting up and checking jobs where extreme accuracy isrequired,

Hardened spring steel blades permanently fixed to the stock by meansof tapered self-locking rivets which ensure complete rigidity,

Blade and stock are precisely ground to ensure straightness andparallelism,

Working edges of the blades are lapped for enhanced accuracy,

Groove on the inner corner of the stock aids in the clearance of burror dirt

CODE: GRO6520

BARCODE: 8901486010052

HEIGHT: 2.0cm

LENGTH: 28.0cm

WIDTH: 17.3cm

WEIGHT: 0.96kg

OVERALL LENGTH: 225mm

STRAIGHTNESS OF BLADE EDGES: 15 microns

FLATNESS OF WORKING FACES OF STOCK: 15 microns

PARALLELISM OF WORKING FACES OF STOCK: 8 microns

PARALLELISM OF SIDE FACES OF STOCK: 50 microns

SQUARENESS OF BLADE EDGES TO WORKING: 24 microns

FACES OF STOCK

LATERAL SQUARENESS OF BLADE TO BASE: 400 microns

OF STOCK
