GRUNDFOS Water Booster Pump SCALA2 (1X200-240V 50/60HZ)

• SCALA2 is the perfect choice for residential homes, 4 taps @ 2.5 bar pressure
• Boosting from mains: increases the water pressure delivered by city mains
• Boosting from tanks: increases water pressure from roof tanks, break tanks and ground tanks, including rainwater tanks.
• Boosting from wells: pumps water from a depth of 8 meters

Grundfos is a pump manufacturer based in Denmark that produces 16 million pumps/year, the company has been in existence since 1945. SCALA2 features a built-in sensor, which constantly measures the discharge pressure. If the pressure drops below the desired level, SCALA2 boosts its operation immediately to compensate for the loss of pressure. We call it intelligent pump control and the result is perfect water pressure.

SCALA2 is a fully integrated water booster pump providing perfect water pressure in all taps at all times even with multiple taps and showers running at the same time. It packs a pump, motor, tank, sensor, drive and non-return valve into one compact unit. And with its intelligent pump control, SCALA2 automatically adjusts performance to both inlet pressure and water consumption in the home. Thanks to a water-cooled motor, SCALA2 even offers one of the lowest noise levels of any booster on the market.

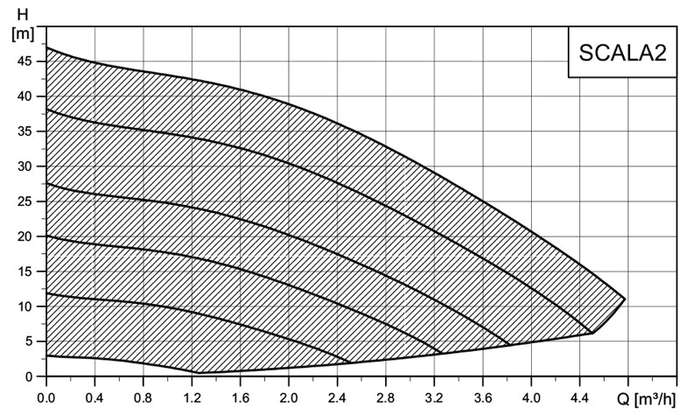

GRUNDFOS SCALA2 performance curve

Technical Specs:

• Max head: 45m
• Max flow: 4.8m3/h
• Max ambient temperature: 45 C - 55 C
• Max liquid temperature: 45 C
• Max system pressure: 10 bar (145 PSI, 1 MPa)
• Max inlet pressure: 6 bar (87 PSI, 0.6 MPa)
• IP rating: X4D (outdoor installation)
• Pumped liquid: Clean, fresh water and
• chlorinated water < 300ppm

Benefits:

• Perfect water pressure: intelligent pump control adjusts operation automatically
• Low noise: as quiet as a modern dishwasher (47 dB(A) in typical use)
• Easy selection: one variant for all domestic boosting needs
• Easy installation: compact, all-in-one solution, plug-and-pump
• Easy to operate: user-friendly control panel
• Reliable operation: dry-running protection, anti-cycling
• Long lifetime: quality-tested to perfection, maintenance-free

Dimensions:

• 403mm Length x 193mm Width x 302mm Height

For technical specifications, please download the product brochure

Scala2 Promotion Video

Source: https://za.grundfos.com/products/find-product/scala2.html
