Keypad/Control Unit :
Brand new and high quality
Completely Wireless (Simply plug in the keypad)
All sensors have a 200 feet range and 400 feet line-of-sight range
Automatically calls for help without a monthly monitoring fee(Required a phone line)
Advanced Sensor Technology
Applies widely to banks, stores, warehouses, offices and home,it has many kinds of protection abilities like anti-theft, anti-robbery, fire prevention, gas leakage protection and most important, emergency calls.
Static current : Is <35mA
Alarm current : Ia <280mA
Wireless received sensitivity: -95dBm@12dB SINAD
Wireless interference Rejection: >40dB(30-1000MHz)
Humidity : ≤ 90 %
Emission distance : 240-500 feet
Receiving frequency: 315MHz
Power Supply : 12V DC (Package included an AC Adapter with Input:100~240V/Output:12V DC)
The system will call you or call 911 automatically, at the same time, its siren will alarm loudly to scare the intruder. And when your neighbors hear the alarm, they might come over to check the situation.
Dual passive infrared detector :
Anti-burnt cover
Auto temperature compensation
LED on/off optional
SMT design, high RFI/EMI Immunity
Alarm delay time optional
Triple pulse optional
Sending a warning singal to host if detect any movement
Technical parameters :
Working power: 9V 6F22 Buttery
Charge power: DC 9V (rechargeable)
Launch distant: 300m (open area)
Detect distance: 12m
Detect range: 110
Size: 107 x 59 x 45mm
Installation heigh: 1.7-2.5m
Remote Control :
It is convenient to control the security system with 4 control buttons.
Transmission Distance : 80m (No Obstacle)
Transmission Time: ¿¿¿1s
Transmission Current : ≤ 15mA
Static Current : = 0
Power : 12V battery
Operational temperature : -10¿¿¿ to 40¿¿¿ (approx 14°F ~104°F)
Humidity: ≤ 90%
Door/Window Sensor :
Transmit distance : approx 100m(no obstacle)
Internal distance : 15mm
Transmission Time : ¿¿¿1s
Static current : 15mAμA
Alarm current : 15mA
Power Supply : 12V battery
Temperature: -10¿¿¿ to 40¿¿¿ (approx 14°F ~ 104°F)
Humidity: less than 90%
Suitable for Door, Window, drawer, cabinet...etc

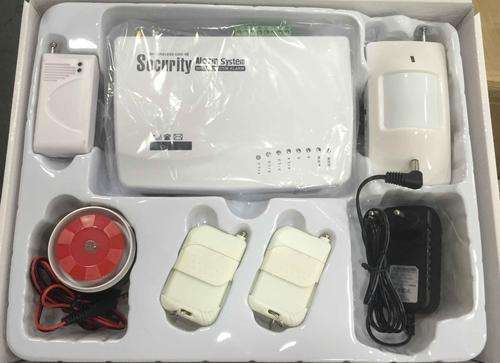

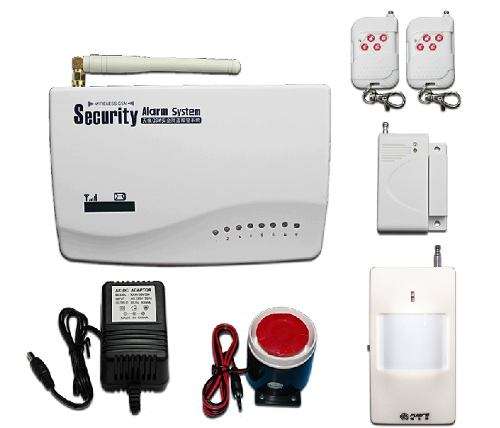

Package included :
1 x Keypad/Control Unit
1 x Door/Window Sensor
1 x Motion Detector
2 x Remote Control
1 x Wired Siren
1 x Telephone Cable
1 x Power Adapter
1 x English Manual
