GSM / CDMA / DCS / PCS / 3G / 4G / Wifi Mobile Phone Signal Breaker / Jammer / Isolator, Coverag...

Specifications:

1) Cover interface standards:

- CDMA/GSM: 850~960MHz

- DCS/PCS:1805~1990MHz

- 3G: 2110~2170MHz

- 4G (LTE): 725-770MHZ or 790-825MHz

- 4G: 2345- 2400MHZ or 2620-2690MHZ

- WIFI: 2400MHZ~2485MHZ

- CDMA/GSM, DCS/PCS, 3G, 4G(LTE), WIFI

2) Total output power: 3W ,Small size design so the temperature is a bit higher

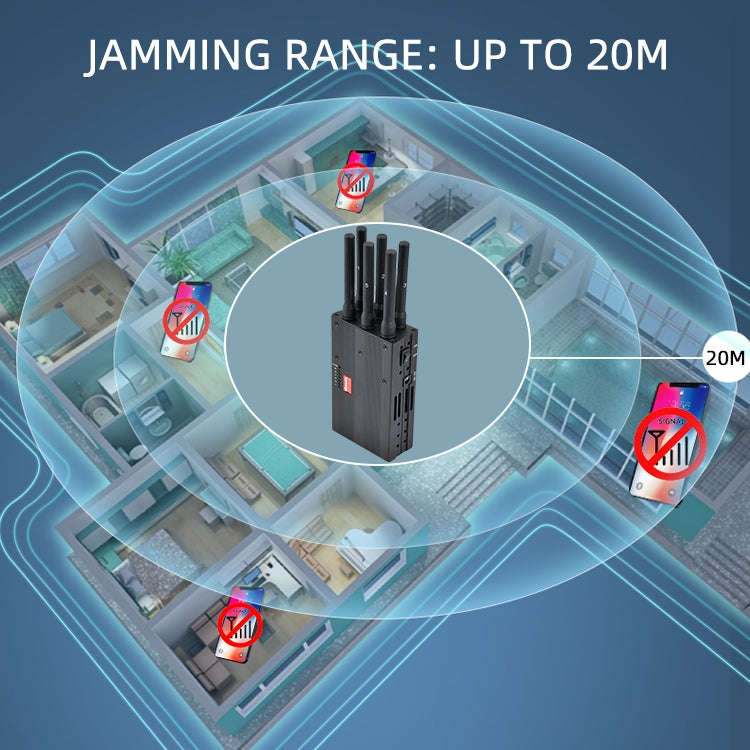

3) Jamming range: up to 20m, the jamming radius still depends on the strength signal in given area

4) External Omni-directional antennas all the TX frequency covered down link only

5) Power supply: 50 to 60Hz, 100 to 240V AC

6) With AC adapter (AC100-240V-DC4.2V),4000mah battery

7) Dimension: 130mm x 75mm x 35mm and not include antennas

8) Inner box dimension: 280mm x 152mm x 80mm

9) Full set weight: 0.8kg

10) Advantages:

- Multiple bands

- High output power

- Cooling fan inside, could be used in car directly, with car charger and AC charger

- With Built-in Battery: 4000mA/h, charge full time about 6 hours,Working time:1-2 hours.

11) Application Area:

- Multiple bands

- High output power

- Cooling fan inside, could be used in car directly, with car charger and AC charger

- With Built-in Battery: 4000mA/h, charge full time about 6 hours,Working time:1-2 hours.

12) Application Area:

- It can be applied at meeting rooms, conference rooms, trains, bus and more

- For some locations of special purpose such as hospitals, gas stations and more, Please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
