GSM Home Alarm System

Protect your property with this home security system that features motion detection, door/window sensors, smoke detector, gas detector and app notification.



Key Features...

• Protect your property and loved ones with this extensive home security system kit
• Supports up to a great array of sensors for all-round home protection and security
• Smartphone app for iOS and Android brining notifications and controls to family members
• Two way communications through built in mic and speaker

Featuring a wide variety of sensors and alarm systems this GSM Home Alarm System keeps a track of whats happening in and around your property at all times.

Extensive Home Security System With App Notifications

Home is a place where you and your family feel safe, secure, and at peace, as here most of our time is spent with people we love and care about. Guaranteeing the safety of our loved ones is the number one priority, however, accidents are never fully preventable. Burglary, fire, and gas leaks are just some unpleasant examples of incidents that could happen to any household. Luckily there are home security kits that feature a wide range of sensors and alarms that significantly increase the safety of your household.

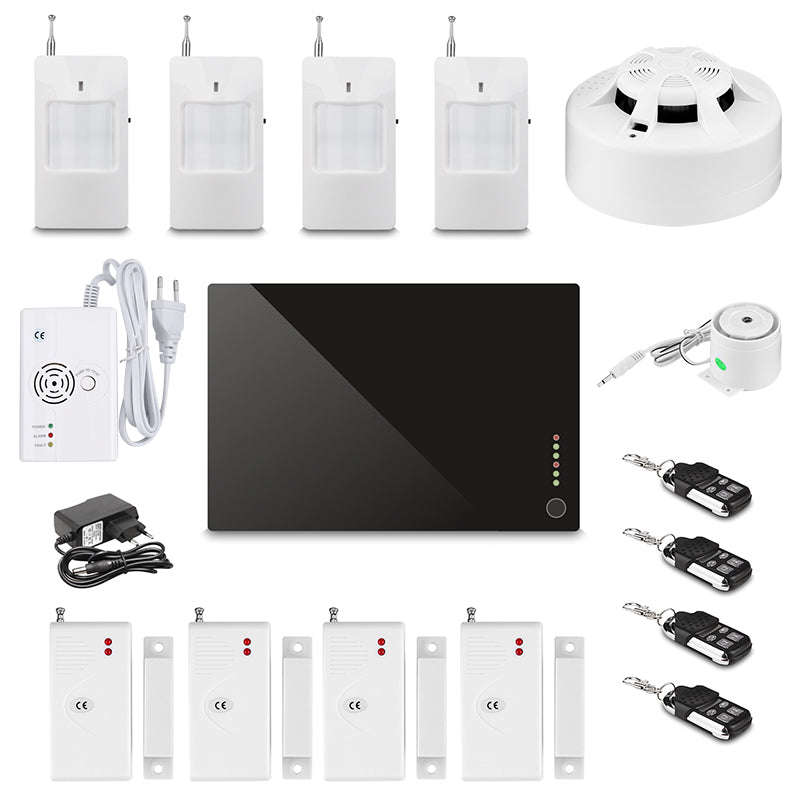

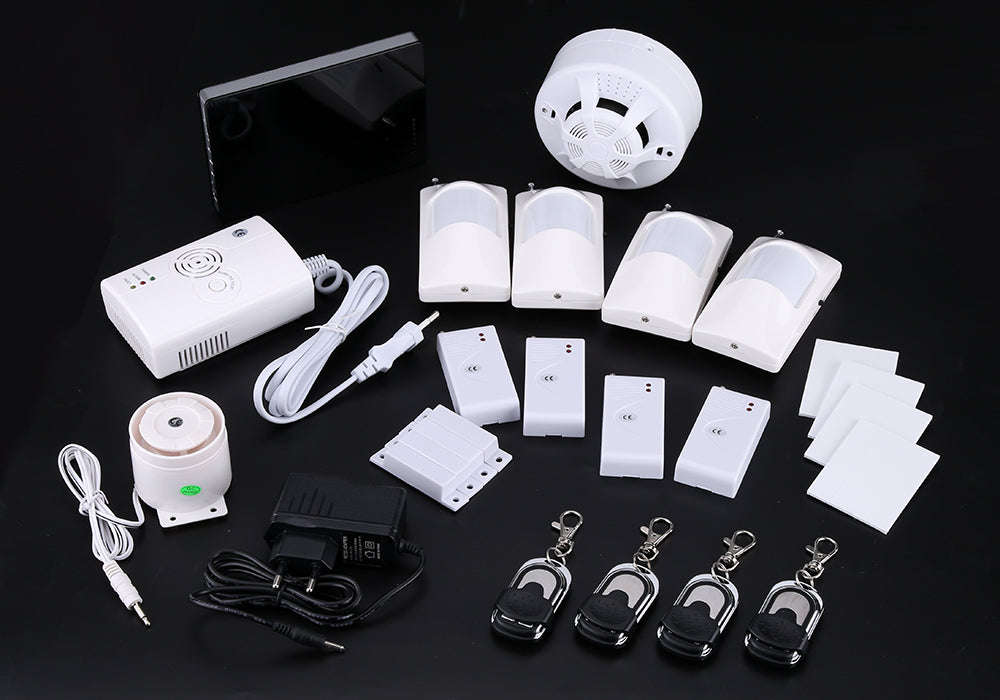

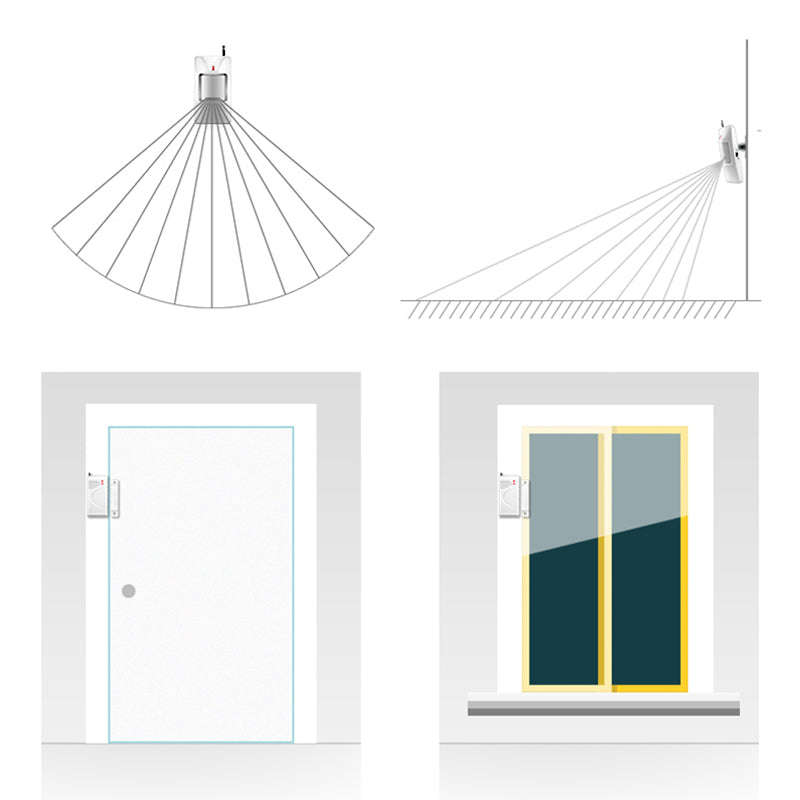

Coming with four IPR motion detection sensors this kit ensures that no unwanted visitors enter your property undetected. With a range up to 12 meters and a 110-degree angle each individual sensor can easily cover a hallway, room, or office space. Four door/window sensors will alert you in case a door or window in your house is being opened. Additionally, these sensors can be used on cupboards that hold valuables or objects you want to keep out of reach for your children. Once a sensor is triggered an alarm will sound and notification will be send to your smartphone, ensuring that you will be constantly up to date about your propertys security status no matter where you are located.

A fire alarm has been included in this home alarm system kit and will sound if smoke is detected. Furthermore, a gas sensor has been included that will be triggered by the detection of coal gasses, natural gas, and petroleum gasses. Simply place the gas detector in the kitchen, boiler room, or any place at home where gas is used and you can be assured that any leakage of the smallest amount of gas will be immediately detected.

When an alarm or sensor has been triggered a notification will be sent to your smartphone automatically through the mobile app or SMS no matter whether you are using iOS or Android. With two-way communication you will be able to listen to what is happening inside your home through your smartphone and the mobile App allows you to enable or disable alarms from a distance. Coming with four remote controllers the sensors and alarms can be easily activated and turned off when you are approaching or leaving your property.

This home security kit comes with a 12 months warranty, brought to you by the leader in electronic devices as well as wholesale electronic gadgets.



Manufacturer Specifications

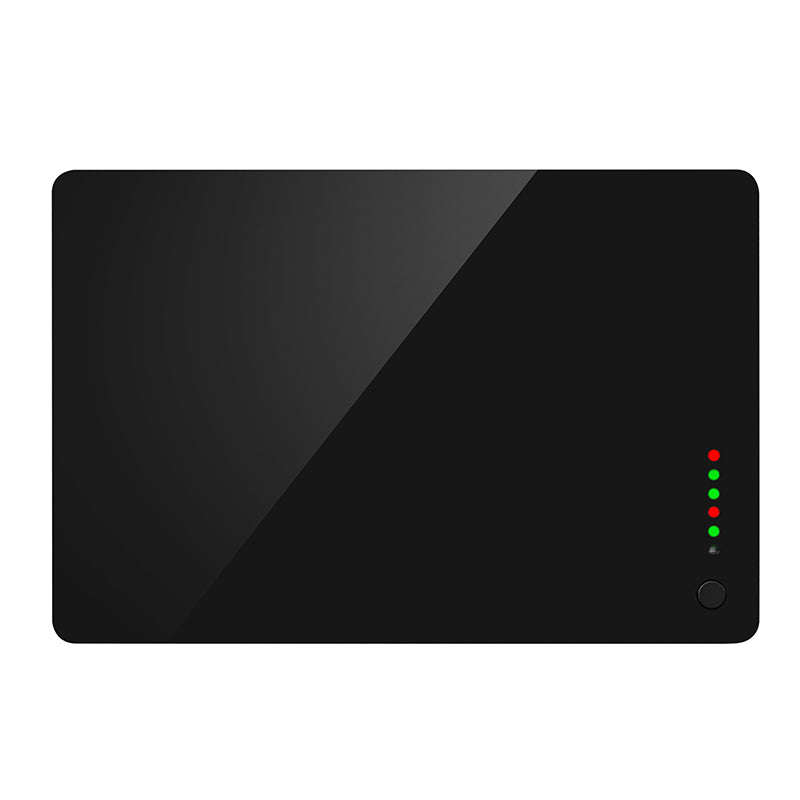

Panel

• Material: ABS
• Power Supply: AC-100-240V 50Hz/60H
• Range Between Control Panel and Sensors:  Up to 30 to 50 meters indoor, 100 meters in the open area
• Working Power Consumption: Less than 1.2W
• GSM Network: 2G: 900/1800/850/1900MHz
• Backup Built-in Battery: DC8.4V
• Use Time: About 15 hours
• Operating Temperature: -20 to 55 Degree Celsius
• Operating Humidity: Up to 95% RH
• Wireless remote controllers: Arm/Disarm/Home/SOS
• Languages: English, Spanish, Russian, Chinese
• SMS alert, report, command
• App name: iph support Android 4.2 and iOS 6.0 or above

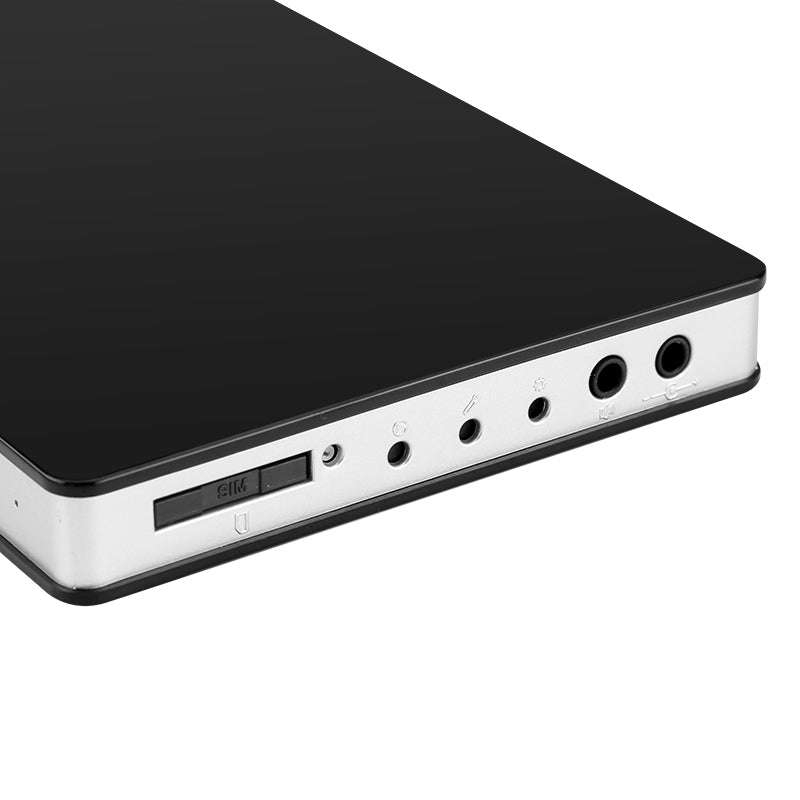

• Ports: GSM SIM Card Slot, DC IN, Siren socket

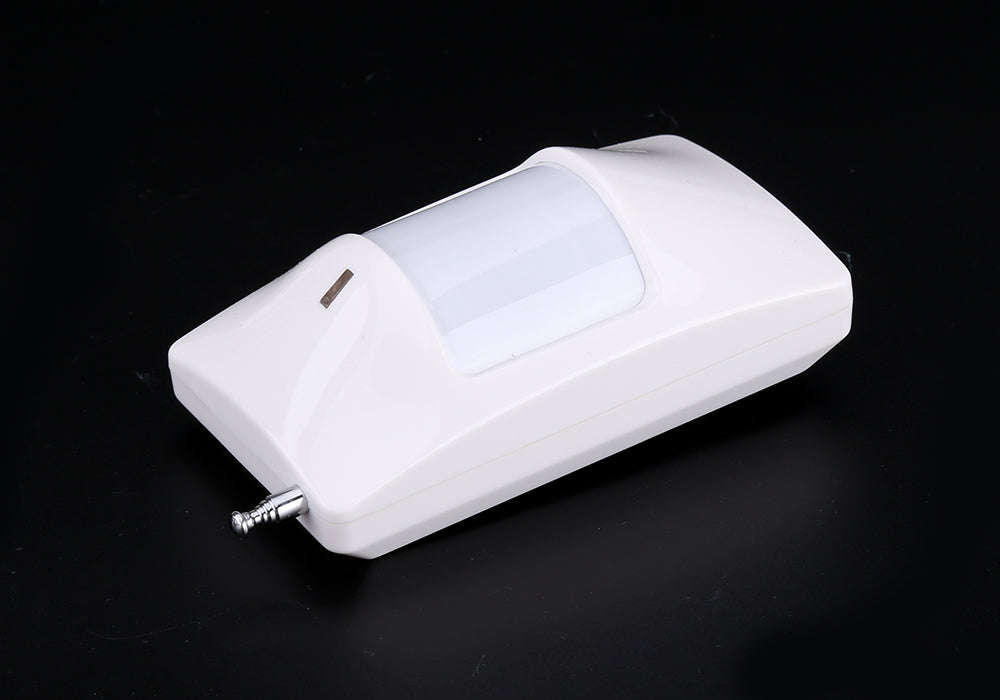

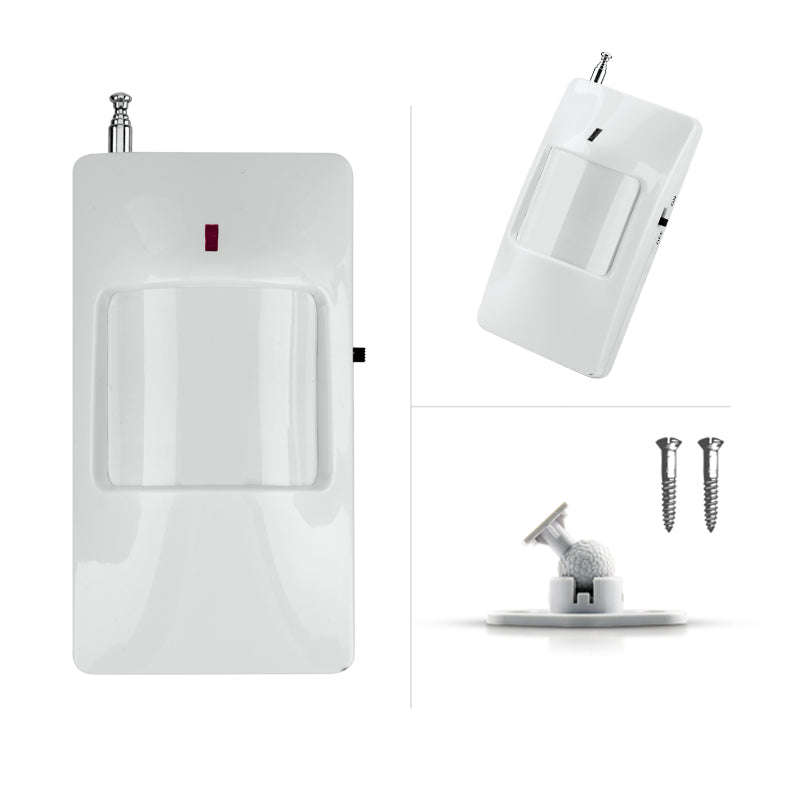

Wireless PIR Motion Sensor

• Power Requirements: DC 9V
• Current Consumption: 7mA to 8mA (While sending)
• Current Consumption: 45uA(While monitor)
• Operating Freqency: 433 +/- 0.2Mhz
• Angle: 110 Degree
• Detection Range: 12 Meters
• Bracket Adjustable Angle: -45 Degree to +45 Degree(Horizontal line)
• Bracket Adjustable Angle: -15 Degree to +45 Degree(Vertical line)
• Response Time: 6sec
• Coding Type: Fixed Code
• Usage Battery Time: It can be used half year if send 20 times everyday
• Operating Temperature: -10 to 50 Degree Celsius

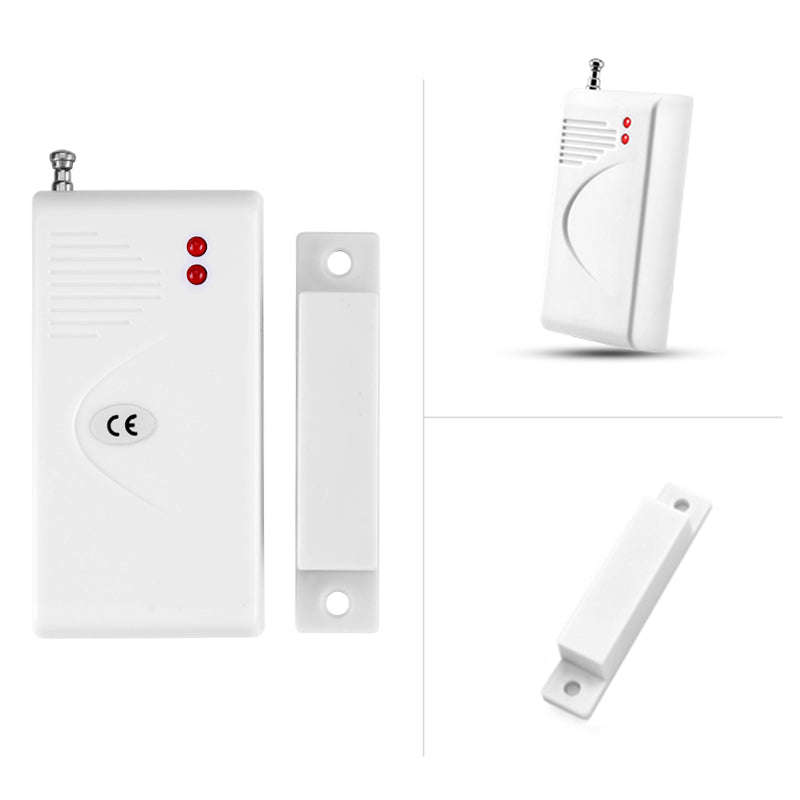

Wireless Door + Window Sensor

• Power Requirements: DC 12V (23A DC 12V battery inside)
• Current Consumption: less than 20uA, less than 15mA while transmitting
• Transmit  Freqency: 433 +/- 0.2Mhz
• Transmit Duration: less than 1sec
• Transmit Distance from host: more than 80m(no obstacle)
• Installation: less than 15mm between part A and part BCoding Type: Fixed Code
• Usage Time Battery: Up To 1 year

• Operating Temperature: -10 to 40 Degree Celsius
• Operating Humidity: Up to 90% RH

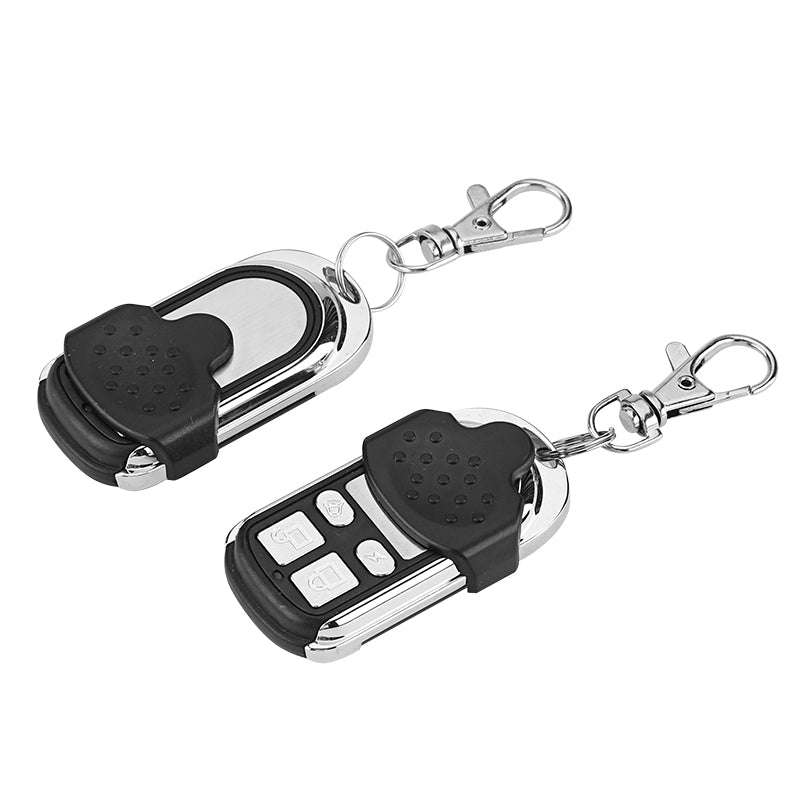

Wireless Remote Controllers

• Power supply: DC 12V
• Bulit-in 27A DC 12V battery
• Transmitting current: less than 15mA
• Transmitting frequency: 433MHz
• Transmitting time: less than 1sec
• Transmitting distance: barrier free distance more than 80m
• Operating Temperature: -10 to 40 Degree Celsius
• Operating Humidity: Up to 90% RH
• Function: Arm/disarm/reserve/SOS

Smoke Detector

• Power Requirements 9V DC
• Current Consumption: less than 10uA in idle mode; 10 to 30mA while alarm
• Transmit  Freqency: 433 +/- 0.2Mhz
• Sensitivity of Smoke: accord with UL NO.217 standard
• Coding Type: Fixed Code
• Intensity of buzzer'volume: 85 decibel 10 foots
• Operating Humidity: Up to 90% RH
• Usage Time Battery: Up To 1 Year

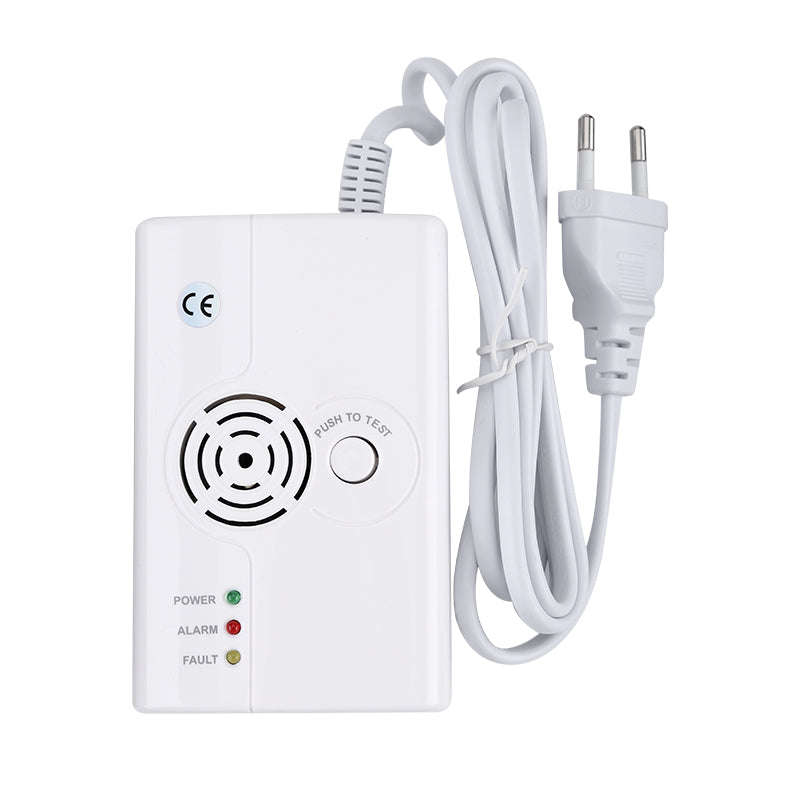

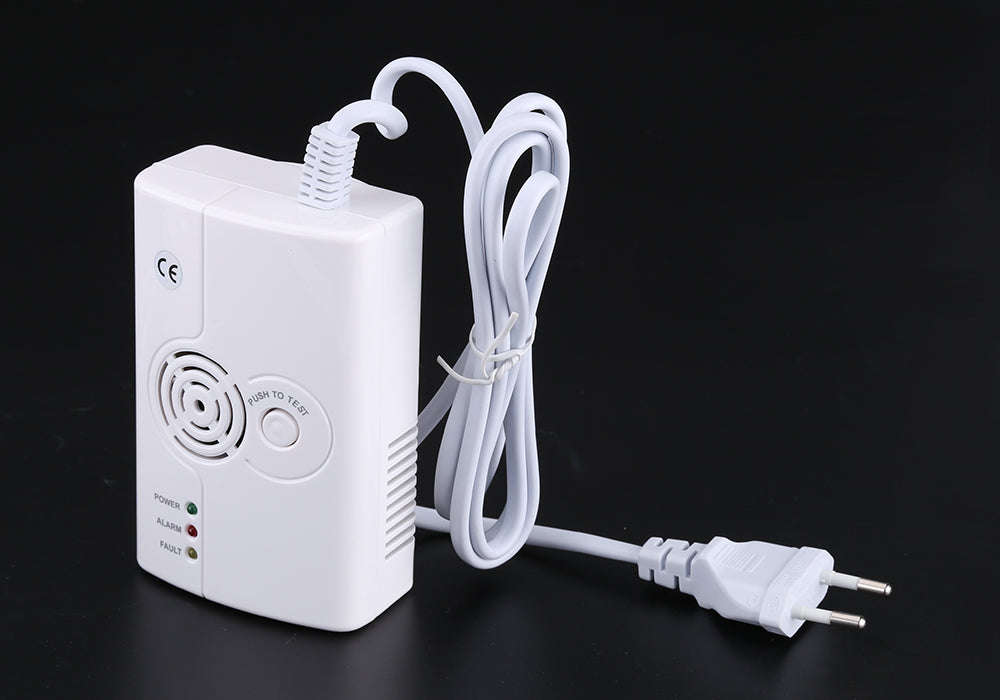

Gas Detector

• Power Requirements: 220V AC
• Current Consumption: 10 to 20mA
• Operating Freqency:433 +/- 0.2Mhz
• Kind of gas: coal gas,natural gas and pettroleum gas
• Alarm density: 0.1% to 0.5%(coal gas ,petroleum gas), 0.1% to 0.3%(natural gas), 0.1% to 0.5%(liquefied petroleum gas)
• Coding Type:Fixed Code
• Operating Temperature: -10 to 50 Degree Celsius
• Operating Humidity: Up to 97% RH

Alarm

• Power Requirements: 12V DC
• Current Consumption: 20mA (High-low sound)
• Transmit Way: Through line
• Operating Humidity: Up to 90% RH
• Operating Temperature: -10 to 40 Degree Celsius
• Intensity of buzzer volume: 110 decibel at 12V DC

Dimensions

• Main Product Dimensions: 150x 100x 15mm (L x
