Package weight: 1.64 kgFeatures:
1.Applicable to family, office space, hotels, large buildings bottom and other indoor places.
2.Can effectively expand the coverage area, without the interference of base station.
3.Effectively reduce mobile phone radiation on the human body.
4.Extend mobile phone battery time and life.
5.Convenient intallation, mail order and according to the specific applications of flexible configuration.
6.Casting integration, fully enclosed shell, beautiful and durable.
7.Using advanced digital filter, high and chip, stable and effcient.
8.Product environment protection, small volume, low cost.
9.Full duplex, up/down a high degree of isolation.
Specifications:
1.Power Supply: AC 110-240V
2.Output Power: ≤27±3dbm
3.Stray Radiation: ≤ -36dbm
4.Band(db): ≤3db
5.Time Delay: ≤5μsec

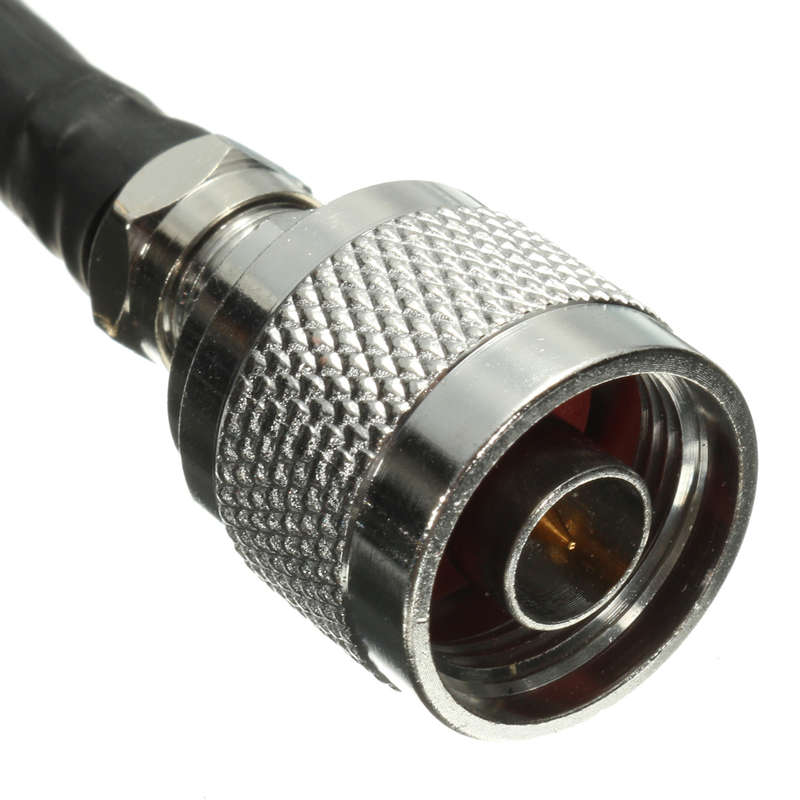

6.Type of Joint: N-K
7.Noise: ≤3dbm
8.Environment Conditions: -10ºC--+60ºC
9.ROHS: IEC 62321(ED.1)-2008-12-11
10.Coverage area (M): 100~1000 square meters
11.I/O impedence (Ω): 50 Ω
12.Frequency range (Mhz): TX:890-915 RX:935-960
13.Gain(dB): Up link≥55; Down link≥65
14.Function: a)Power indicator(LED) b)Output power indicator(LED)

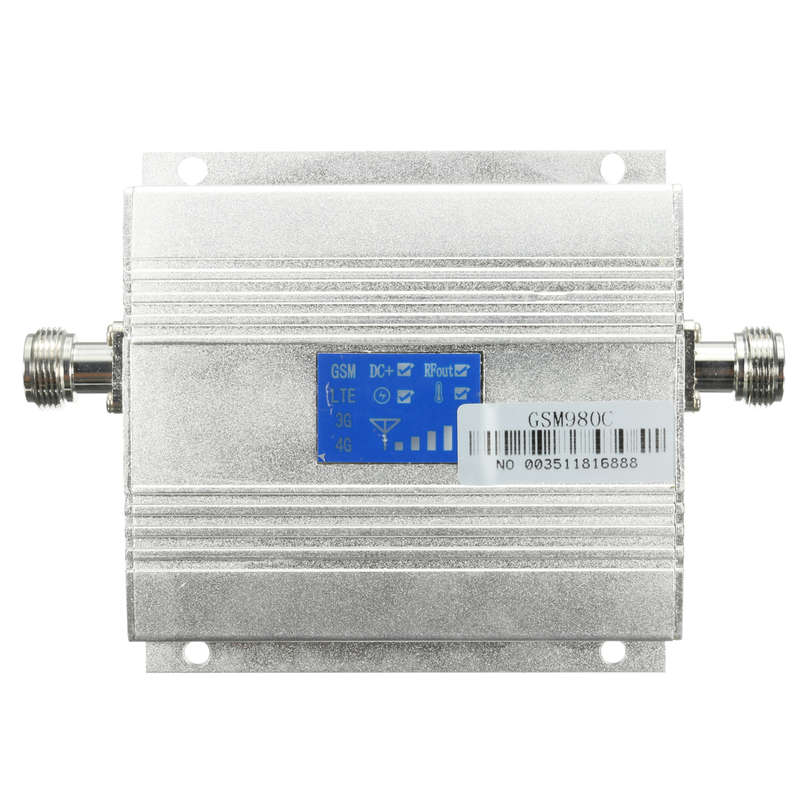

15.Model: GSM980C
16.Plug Type: US Standard
Usage:
1.Use the mobile phone in outdoor antenna location finding the strongest signal, pay attention to lightning protection of outdoor antenna.
2.Select the appropriate location of outdoor antenna, outdoor antenna fixed on the wall or the bracket.
3.Select the approprite location of indoor antenna(The equipment is installed in the power socket.lightning protection,waterproof,placed in a wall ventilated place.)Install a host device, fixed in the wall or the bracket.
4.Outdoor antenna connected to a host of outdoor(BST) interface, tighten the joint.
5.Determine the indoor antenna inatalation location,indoor antenna away from the window(balcony) 4 metrs above, in order to prevent circulatory diaorder, equipment is not running.
6.Indoor antenna connected to a host of indoor(Mobile) interface, tighten the joint, turn on the power.

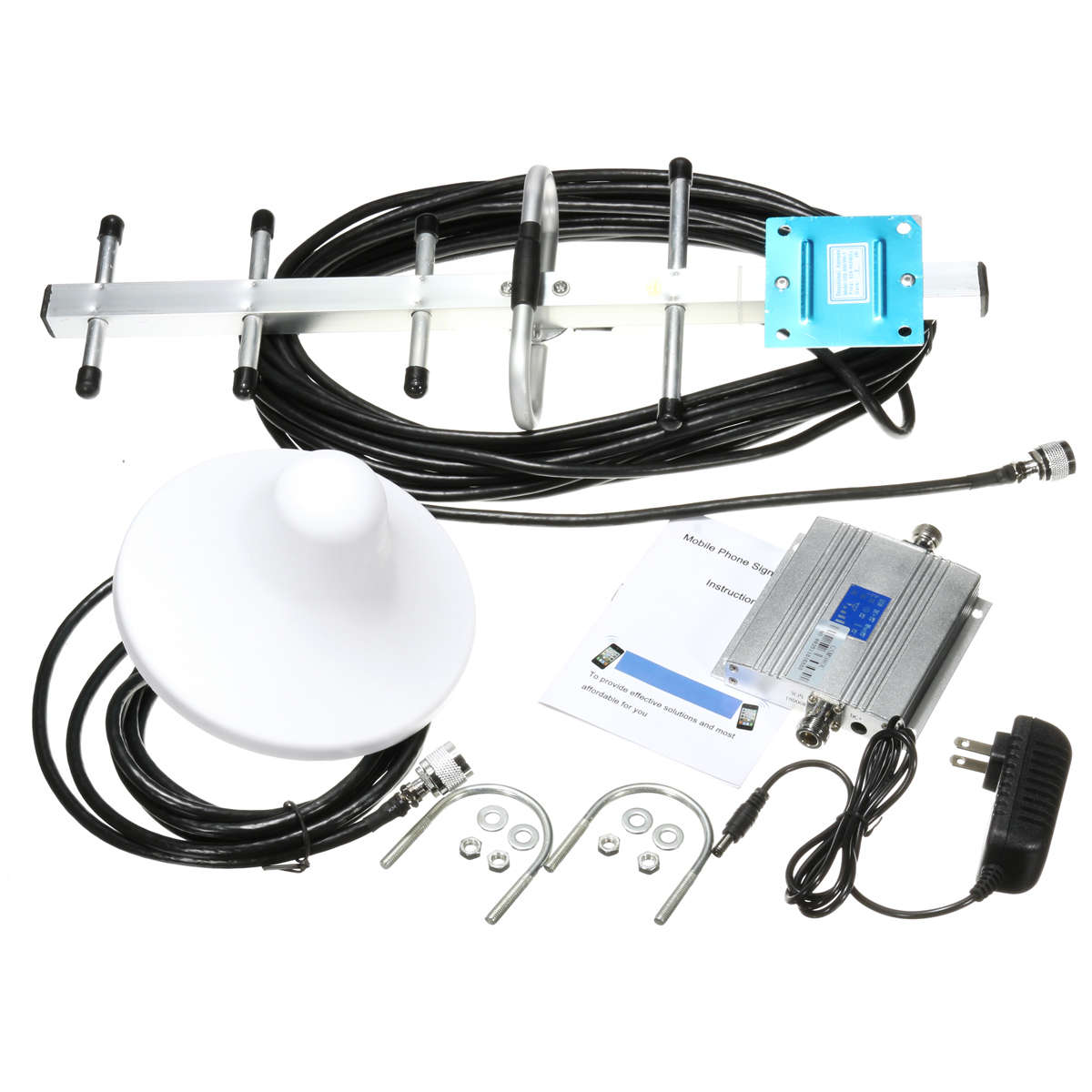

Package Included:

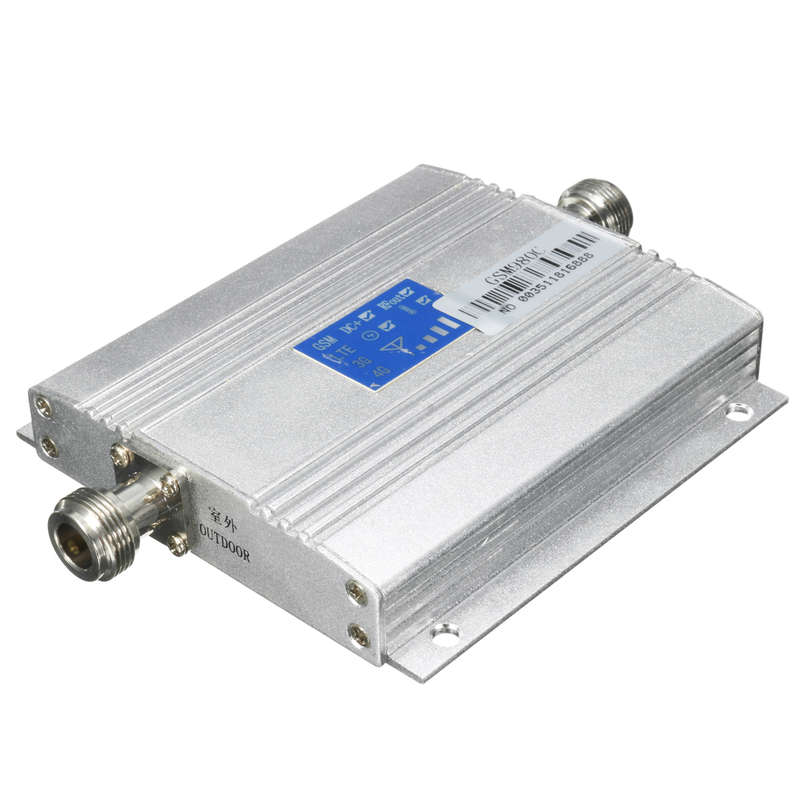

1 x Repeater

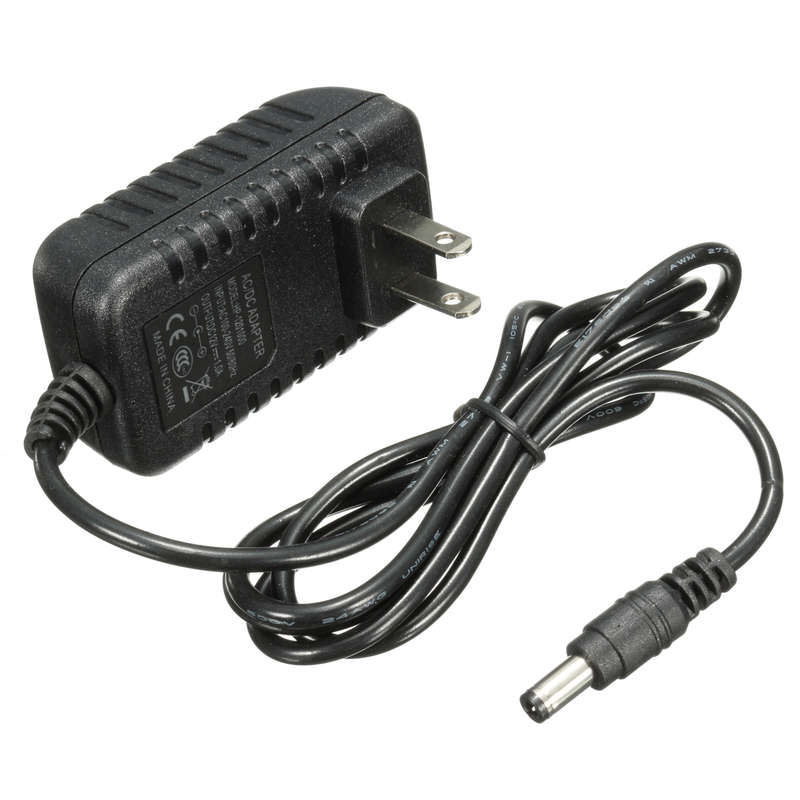

1 x Power Supply
1 x User Manual

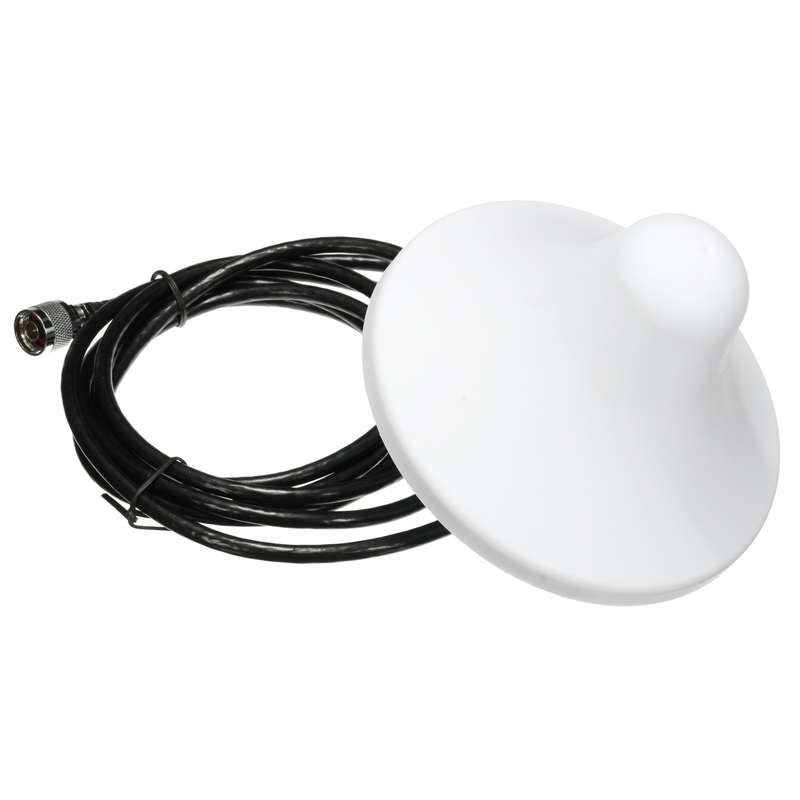

1 x Omni-directional Ceiling Antenna(Come with 3 meters cable)

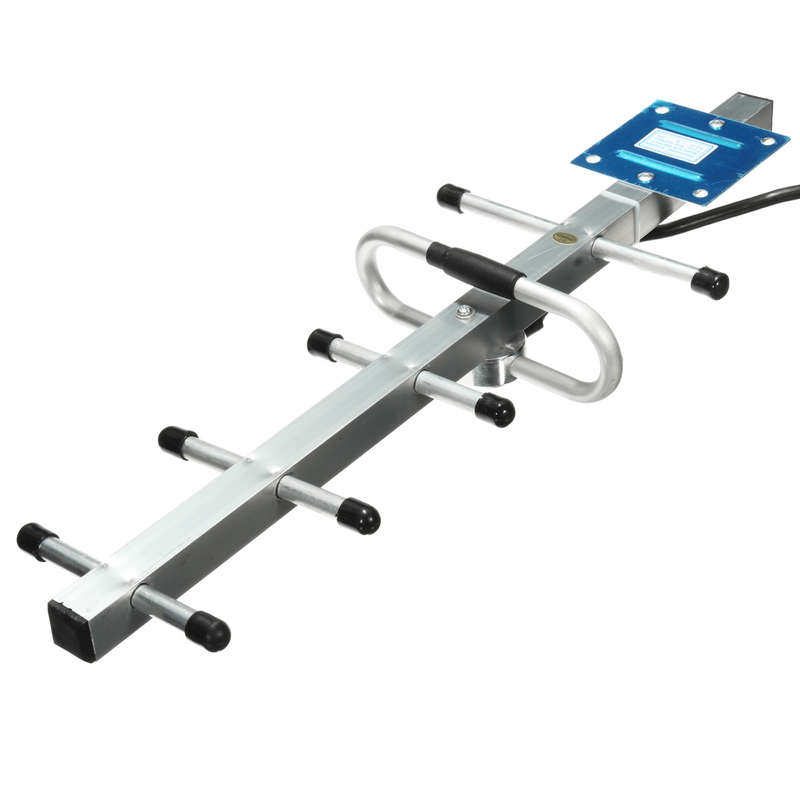

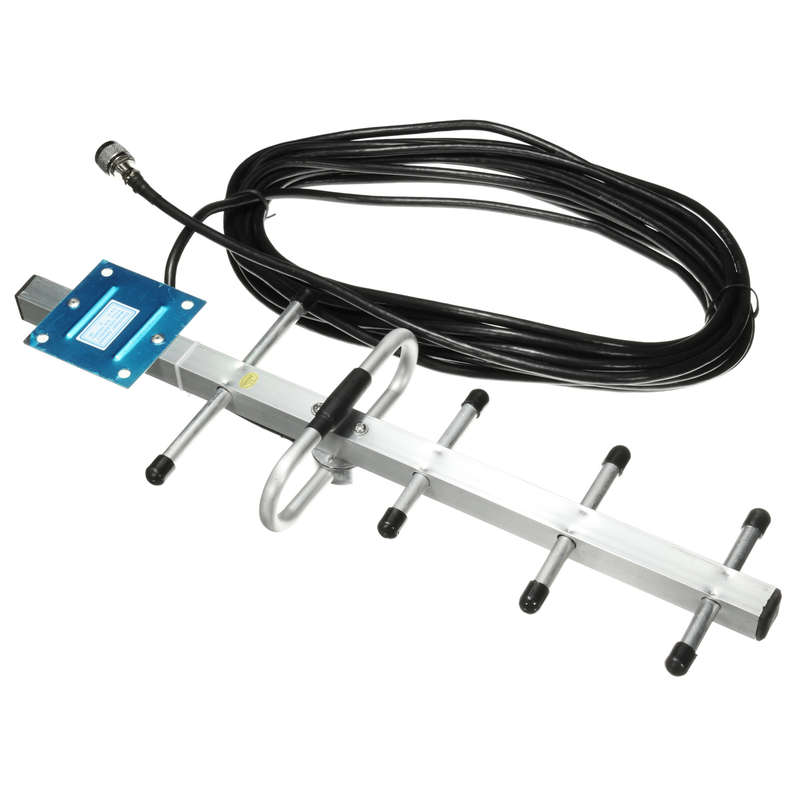

1 x Directional Antenna(Come with 10 meters cable)

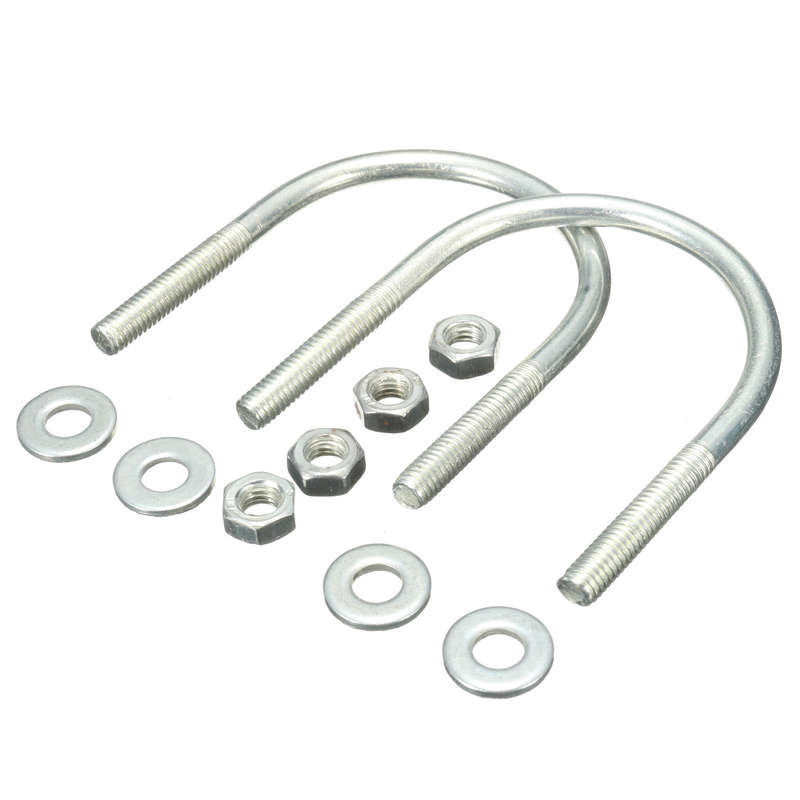

1 x Set of Tools

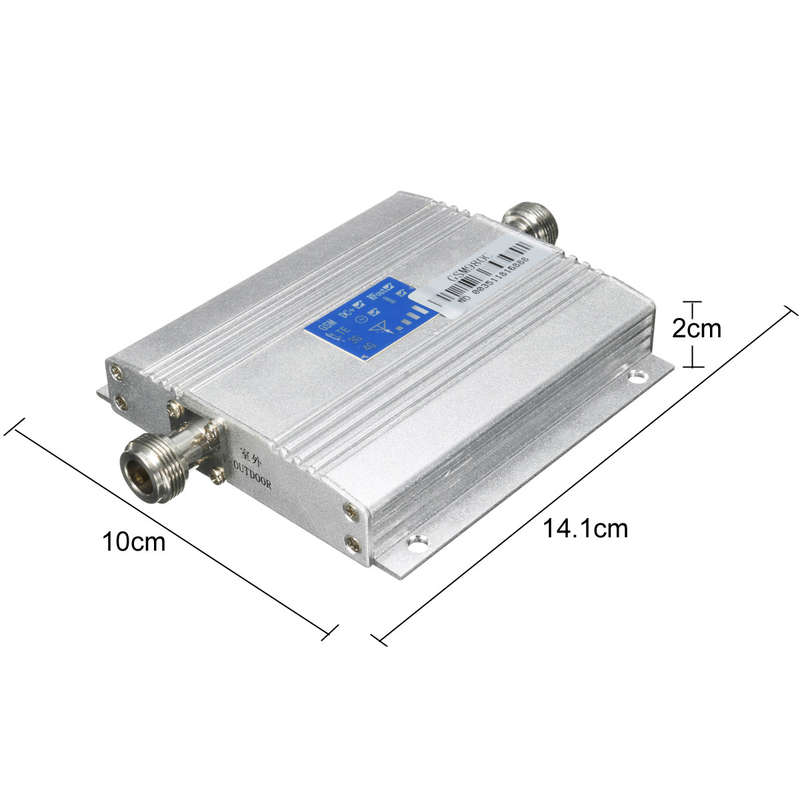

Details pictures:
