Overview:

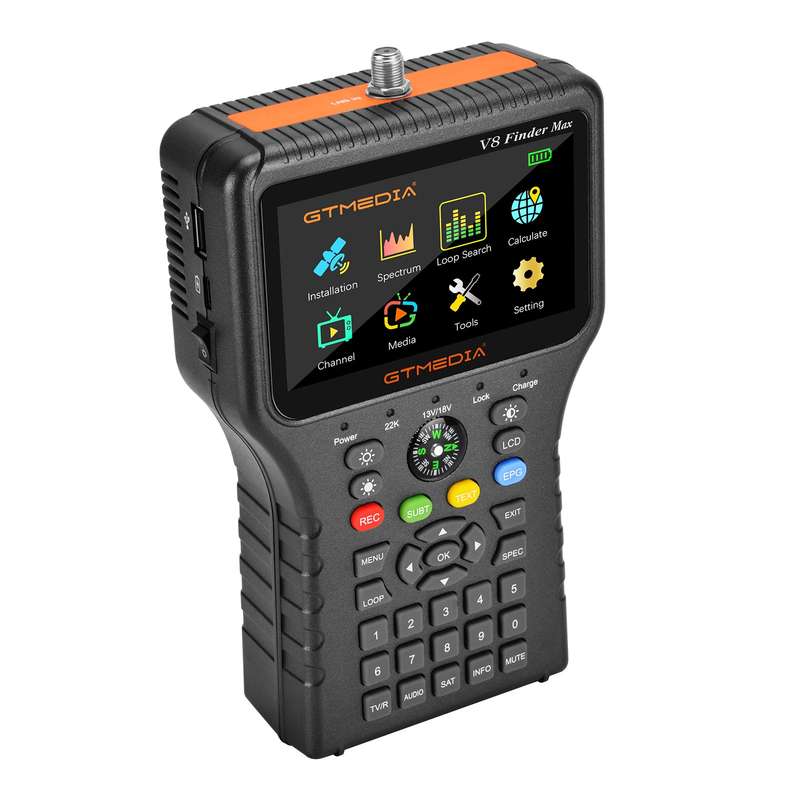

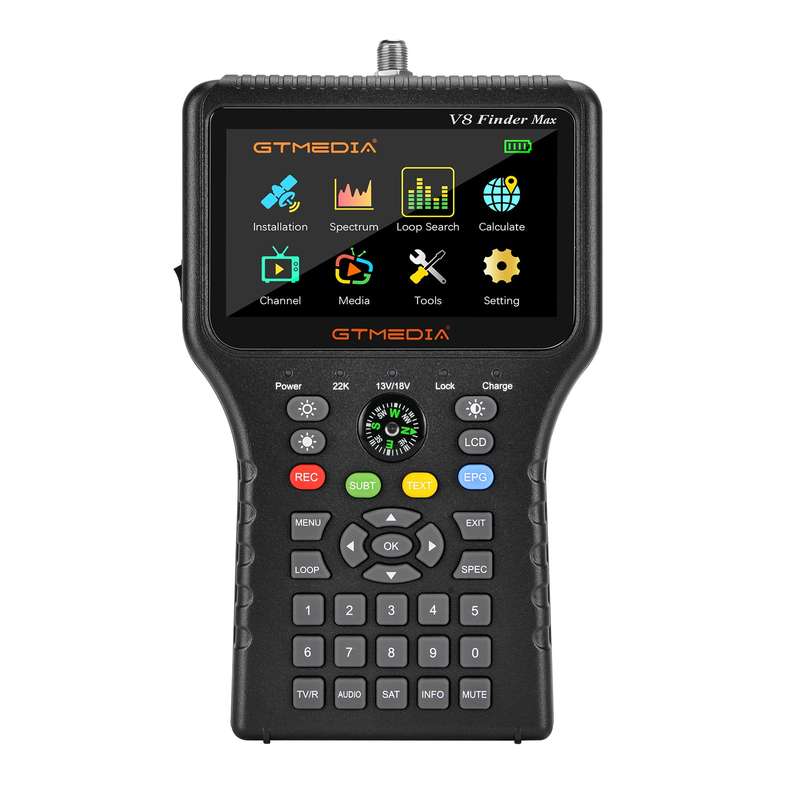

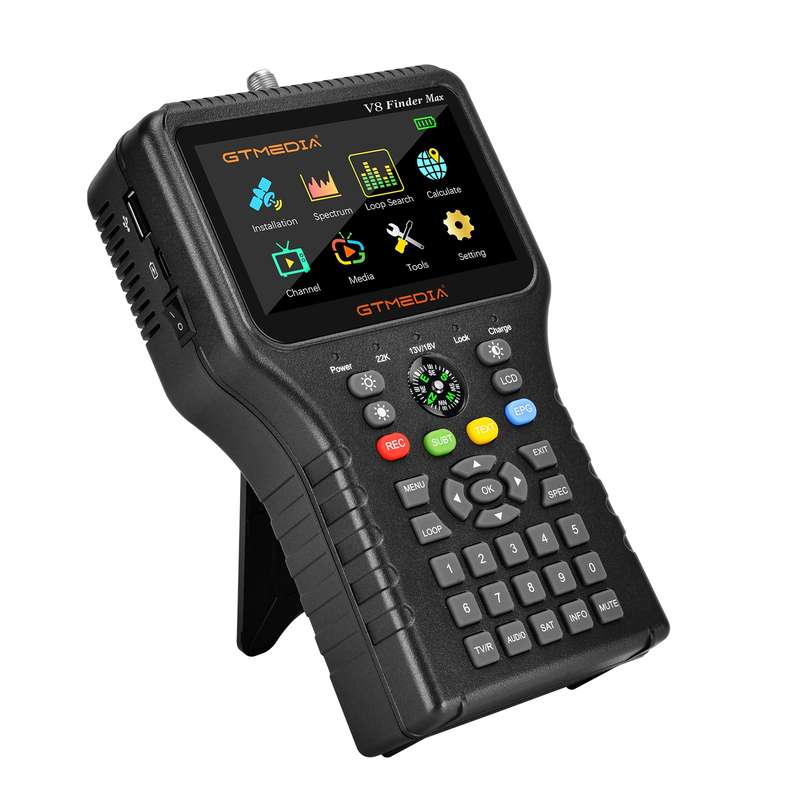

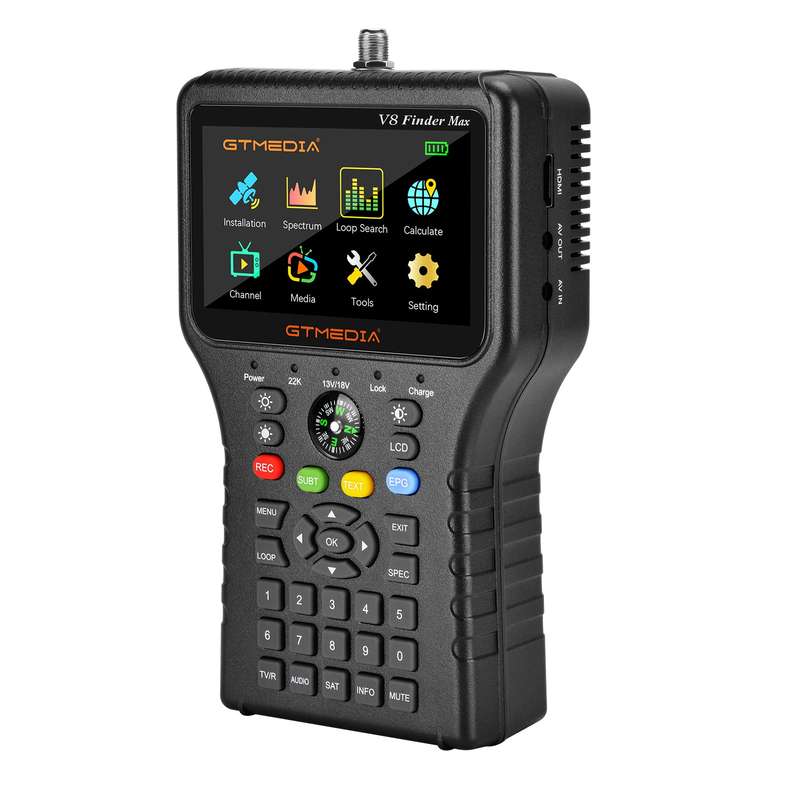

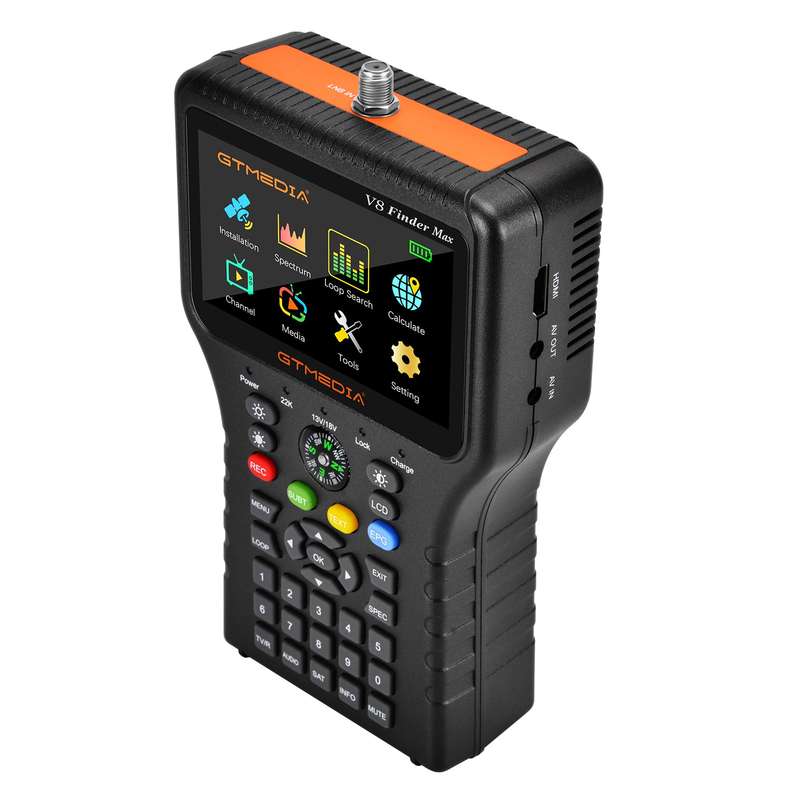

GTMEDIA V8 Finder Max is a DVB-S2X/S2/S and MPEG-2/4 H.264/H.265 (8 bit) compliant handheld combo meter. With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital TV service, antenna signal and cable signal to residential homes or multi-dwelling units.
Features:
*4.3 Inch High Definition LCD Screen
*Fully DVB-S2X/S2/S, MPEG-2/MPEG-4 compliant
*Support H.264/H.265(8 Bit) Hardware decoding
*Digital measuring device for signal strength and quality
*Support Loop Search
*Spectrum analyzer
*Supports scan of Auto, Blind, Manual
*Sound for Locking Signal
*Auto Calculate Angle of AZ,EL
*Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
*Speaker Integrated
*Support both AV out and AV in
*Support both HD out
*Support compass function
*Support real-time power display, with low power reminder
*Supports Youtube for USB wifi 2.4G
*LNB short protect
*7.4V/4000mAh Li-ion Battery Included
*Software upgrade via USB port
*Easy to carry
Specifications:
Connector Type: F Type
Input Frequency: 950 to 2150 MHz
Signal Input Level: ￢ﾀﾐ65 to ￢ﾀﾐ25 dBm
Band Switch Control: 22KHz
LNBￂﾠ Supply: 13V/18V, Max 350mA
Demodulation Type: DVB-S2 QPSK, DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Symbol Rate: 2LCD Type: 4.3 high-resolution digital display LCD
Number of Dots: 480 RGB*272
Active area (W*H): 95.04*53.86mm
Connector Type: 3.5 mm jack
Video Output: CVBS
Audio Output: Stereo Audio L/R output
HD Output Connecter: HD 1.3a
AV Input Interface: 3.5 mm jack
Video Input: CVBS
Audio Input: Stereo Audio L/R input
Video Decompression: MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264 MP&HP@L4, HW JPEG decoder
Resolving Rate: PAL-25 frame@720*576, NTSC -30 frame@720*480
Singnal Compatibility: Support conversion for different video formats
Video Format: 4:3, 16:9, By Pan & Scan and Letter Box conversion
Audio Decompression: MPEG-1 Layer I/II, MPEG-2 Layer I/II
Audio Output Mode: Stereo, Mono, R/L
DATA SERVICE PORT Conector: USB
Data Protocol: USB 2.0 interface
File Management System: NTFS, FAT32, FAT16
File Format: Media: TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
Audio: wma, mp3
Photo: jpg, jpeg, bmp, img
PVR Option: Support recording TS files
WiFi Option: Support networking via USB WiFi
Li-Lon Battery Capacity: 7.4V/4000mAh
Working Time: about 4 hours (find signal); about 6 hours (AV input)
Power Consumption: Max. 10W
Temperature: Operation 0ﾽﾞ+45￢ﾄﾃ; Storage -10~+60￢ﾄﾃ
Humidity: 20~90%, non-condensed
Item Size: 19.2*12.2*4.7cm/7.56*4.80*1.85in
Item Weight: 492g/17.35oz
Package Size: 27.2*20.2*5.9cm/10.70*7.95*2.32in
Package Weight: 793g/27.97oz
Package List:
1 * V8 Finder Max
1 * USB Cable
1 * Storage Bag
1 * Car Charger
1 * User Manual (EN/DE/FR/ES/IT/PO)
