LCD Screen Features1. View Area: 5.8 inch
2. Brightness: 580cd/square meters <+-30cd/square meters>
3. Contrast: 1,000,000:1
4. Polarizer: full view
5. Front Glass: 9H Front Glass, Anti-dust and fingerprint oi
6. Touch sensitivity: 1:1, original experience in 44 Channels
7. Color Temperature: 7300K
8. Display Resolution: 2436 x 1125 - 458ppi
9. Work Temperature: -25-65 degrees Celsius
10. Assembly Thickness: 1:1, same as original
11. True Tone: Yes
12. Sunlight Readability: Yes
13. Low power consumption: Yes
14. 3D touch(Force touch): Yes
15. Brightness auto adjustment: Yes
16. IC: COG

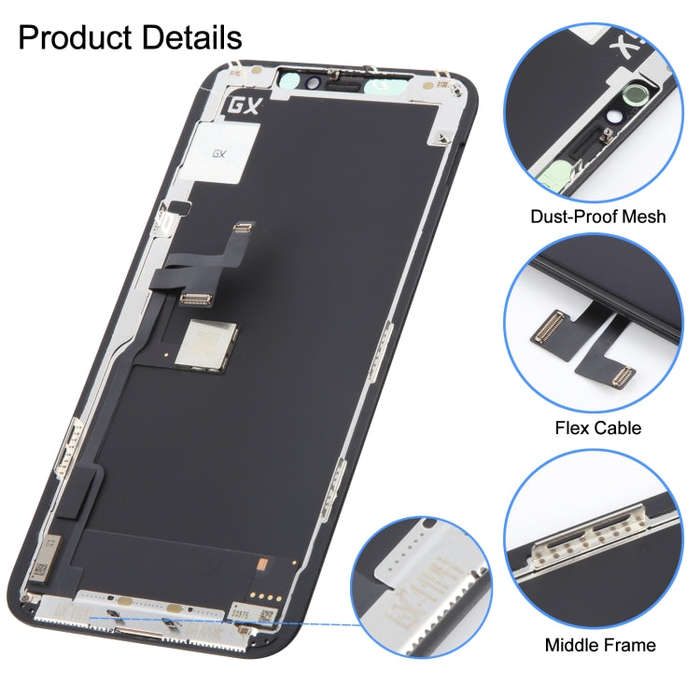

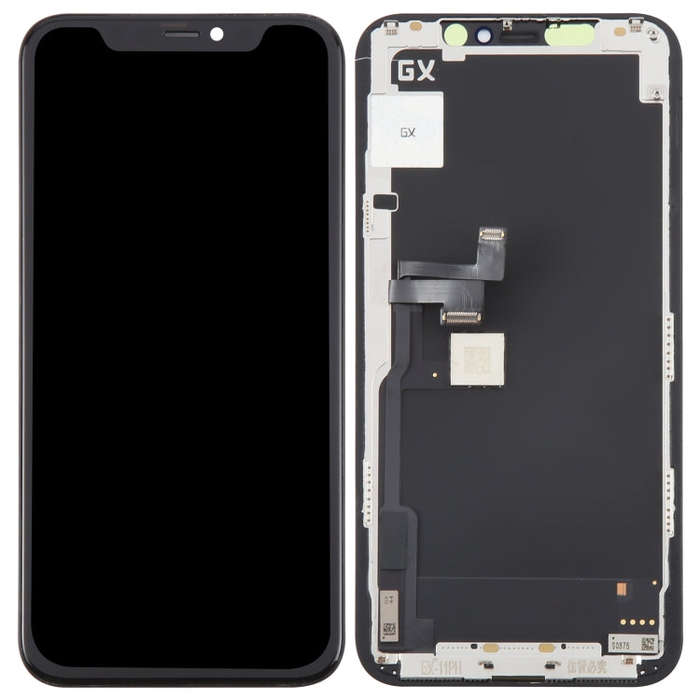

About the product1. Replacement LCD Screen + Touch Screen Digitizer Assembly with frame for iPhone 11 Pro
2. Replace your broken or unusable item with a new one
3. Make your device look more refreshing than ever
4. Completely fit and work
5. Each item has been checked and in good condition before shipping
6. Professional installation is highly recommended. We will not be responsible once the screen is installed
Before Installation NotesTips 1: Test before installation
When testing, do not remove any protective film or tags. Please pay attention to the problem of static electricity.
Before attempting any repair, be sure to ground yourself is an ESD (electro static discharge) strap. This will prevent static electricity from damaging the electronic components within the phone.
Ensure you wear eye protection and use caution not to cut your finger with the glass splinters.
Tips 2: Simulates testing
Screen replacement is very fragile product. We strongly suggest test before installation. Please simulates testing, which means mobile phone apart, (motherboard + LCD or screen) connected audio cable and new replacement, power on, test finished. If test OK, please install it. If it can not show, please contact us at the very first time. And please do not force it to be installed in mobile phone. We will not be responsible once the screen is installed.
Tips 3: Do not over-bend cable
Please make sure LCD cable Do not over-bend. Over 90 degrees bent will cause black display.
Specification:
| General | | Compatible with | Apple: iPhone 11 Pro |
|
| Package Weight | | One Package Weight | 0.13kgs / 0.29lb |
| One Package Size | 25cm * 13cm * 5cm / 9.84inch * 5.12inch * 1.97inch |
| Carton Weight | 7.30kgs / 16.09lb |
| Carton Size | 37cm * 32cm * 22cm / 14.57inch * 12.6inch * 8.66inch |
| Loading Container | 20GP: 1023 cartons * 60 pcs = 61380 pcs
40HQ: 2376 cartons * 60 pcs = 142560 pcs
|
|
