Specifications:
Control system: PWM control system
Working angle: 90 '+_ 5 "
Temperature range: -20 degrees Celsius to + 60 degrees Celsius
Direction: counterclockwise pulse 1500 To 2500 USEC
Voltage range: 6.0V ~ 7.4V
Driving method: Field effect quality tube driving
Test voltage: AT 6.0V / AT 7.4V
Motor type: Iron core strong magnetic carbon brush motor 1723
Torque: 15KG.CM/20KG.CM
Potentiometer: Indirect transmission
Speed: 0.18S / 60 degrees , 0.16S / 60 degrees
Amplifier Type: Digital
No-load current: 300MA / 450MA
Size: 40 * 20 * 39MM
Load current: 2300MA / 2900MA
Weight: 60G (without accessories)
Dead band width: 2 microseconds
Ball bearings: double ball bearings
Cycle: >15,000 times

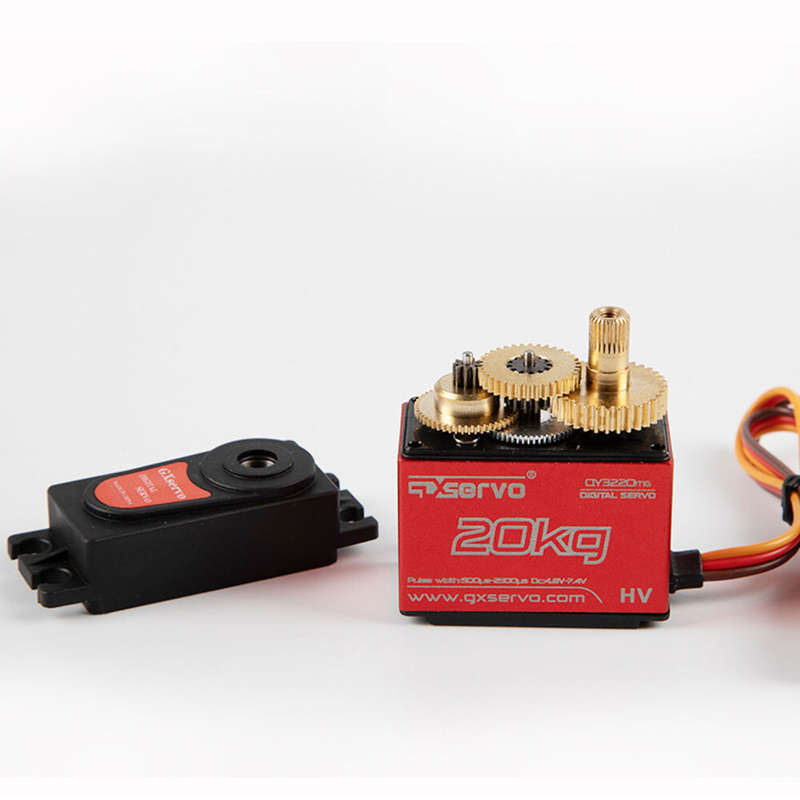

Gear material: imported copper steel material
Functional Application:
Switching device
Robot joint
Steering mechanism
automated i
