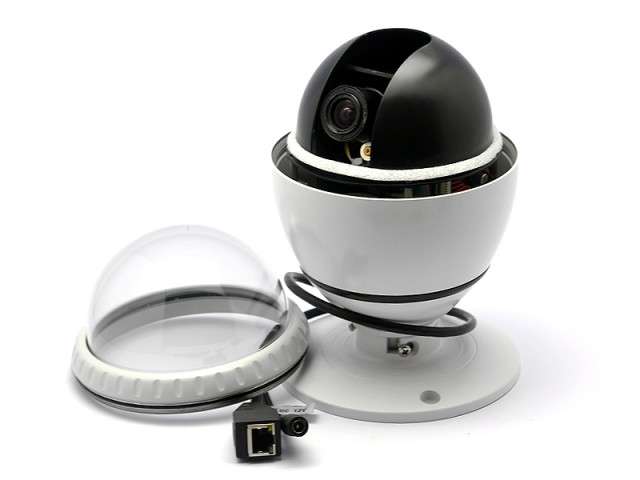

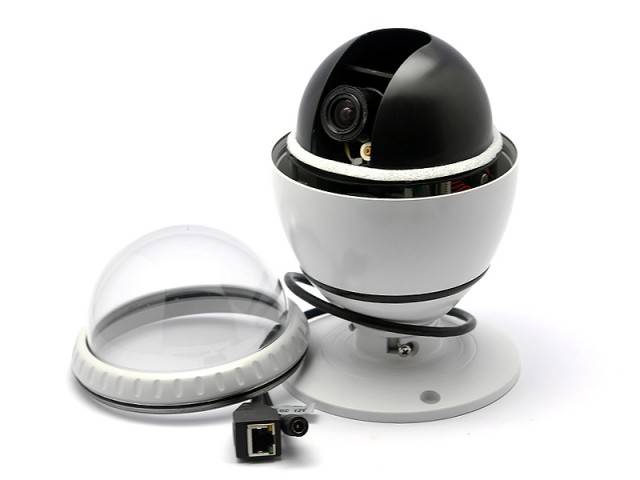

H.264 Speed Dome IP Camera "Watch Guard" - PTZ, 4X Optical Zoom, Motion Detection, 1600x1200 + 1280x720 -ELMN -I310
H.264 2.0 Megapixel Speed Dome IP Camera features PTZ, 4X Optical Zoom, Motion Detection and a choice of 1600x1200 and 1280x720 resolution, making this a solid working surveillance camera.
Perfect for keeping an eye on your property, this IP camera known as the “Watch Guard” has 1/4 inch CMOS that captures and records in H.264 format. With H.264 video compression, the video records at a lower bit rate but with higher quality, which just means better video and less storage required. H.264 is a standard for video compression, and is currently one of the most frequently used formats for the recording, compression, and distribution of high definition video. The resolution of this camera can be chosen from 720p and UXGA, which is an abbreviation for Ultra Extended Graphics Array. UXGA is a display specification that is capable of displaying 1600 x 1200 resolution, or approximately 1.9 million pixels, which is exactly four times the default resolution of SVGA (800×600) (totaling 480,000 pixels).
As the “Watch Guard” is a pan–tilt–zoom camera (PTZ camera), this means it is a camera that is capable of remote directional and zoom control. With up to 4 times optical zoom, this IP camera can get a closer look of any activity that is happening and with 360 degrees Pan and 80 degrees tilt, you'll always be able to keep your property in view. This 2.0 megapixel camera supports a vast range of protocols such as HTTP, FTP and DDNS, also the “Watch Guard” is compatible with popular mobile operating systems, Android and iOS.
At a Glance…
Speed Dome IP Camera
PTZ with Horizontal 360 Degrees Pan, Vertical 80 Degrees Tilt, 4x Optical Zoom
1/4 Inch 2.0 MP Progressive Scan CMOS Sensor
Motion Detection
Manufacturer Specifications
General
Resolution: 1600x1200 (UXGA), 1280x720(720p)
FPS: 15 FPS (UXGA), 25 FPS (720p), 25 FPS (640x360), 25 FPS (160x112)
Image Compression: H.264 (Main Profile), MJPEG/JPEG (Baseline)
Image Orientation: Image Flip and Mirror
Shutter: Rolling Shutter
S/N Ratio: 39dB
OSD: Adjustable, Channel Name, Date, Video Stream Information Overlay
Auto Image Control Functions: Auto Exposure Control (AEC), Auto White Balance (AWB), Auto Band Filter (ABF), Auto Black Level Calibration (ABLC)
Interfaces: Board Mount M12.5 (Interchangeable Lens)
Privacy Mask: 4 Configurable Regions
Image Controls: Saturation, Hue, Gamma, Sharpness (Edge Enhancement)
Data Storage: Video and Image
Recording: Motion Detection, Alarm Trigger, Manual, Schedule
Material: Metal Casing
Defective Pixel Canceling
Noise Canceling
Operation Temperature: -20 to 50 Degree Celcius
Operation Humidity: 20% to 85%
Power Source: Power Adpater
Power Consumption: 9W (Max)
Lens
Image Sensor: 1/4 Inch Progressive Scan CMOS OV2643 2.0 Megapixel

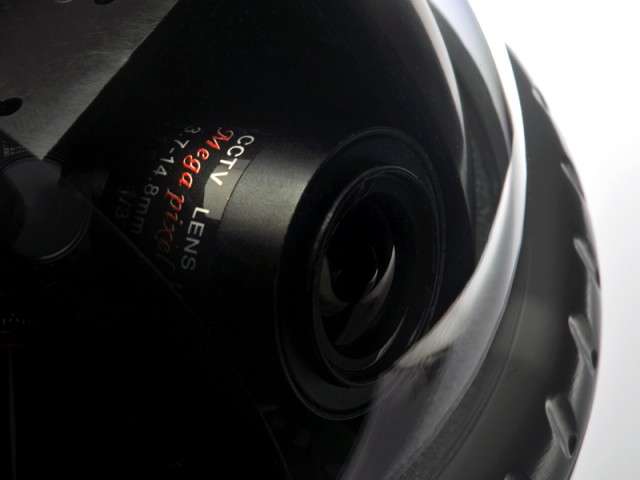

Lens: f: 3.7-14.8mm
Viewing Angle: 15.4 to 62 Degrees
Optical Zoom: 4x
Fixed Iris / Manual Focus
Pan/Tilt Angle: Horizontal-360 Degrees; Vertical-80 Degrees
Night Vision
F = 1.6
Min LUX: 0.3
Min. Illumination: 1250mv/lux-sec
Connectivity
Ethernet: RJ-45 Interface 10/100Mbps BASE-TX
Supported Protocol: TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
Code Rate: 32Kbps to 4Mbps (Supports CBR/VBR)
ONVIF: 2.0 Version
Mobile Phone Browser: Android and iOS
Internet Browser: IE 6.0 to 8.0, Firefox (Max 10 Users)
Alarm Output: E-mail, Explorer, Software
Minimum System Requirements
Supported OS: Windows XP/Vista/Windows7
Dimensions
Main product dimensions: 216x132mm (L x D)
Main product weight: 988g
Package Contents
IP Camera
Screws (Product Specific)
Power Adapter (Product Specific)
CD-ROM with User Manual and Drivers (Product Specific)
User Manual (Product Specific)
