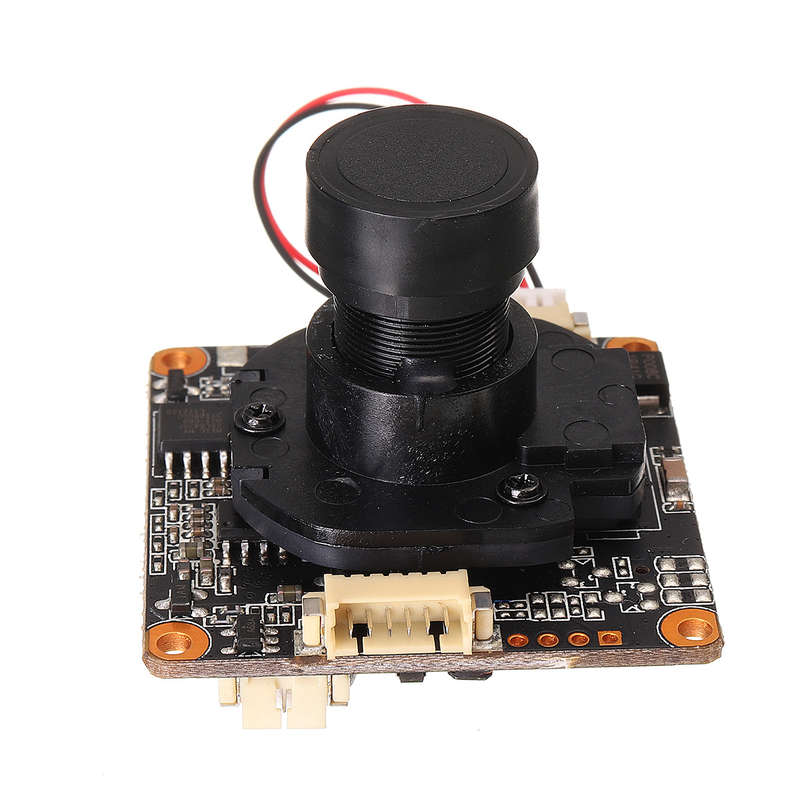

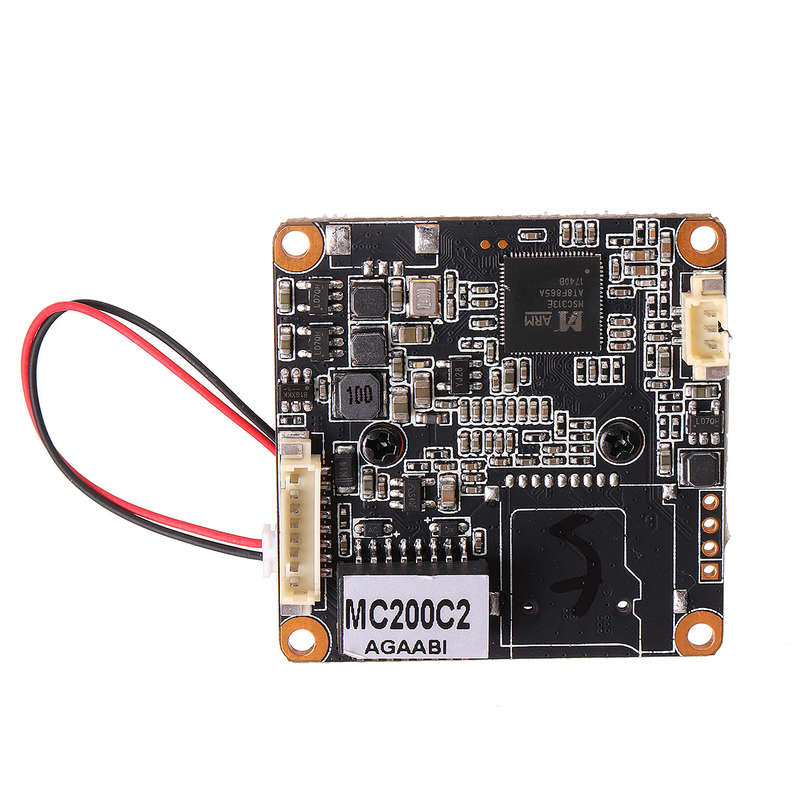

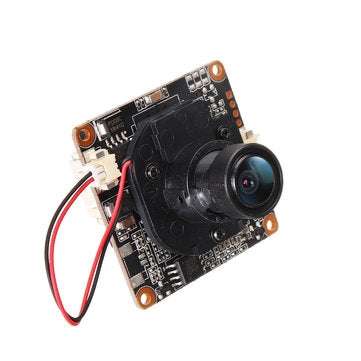

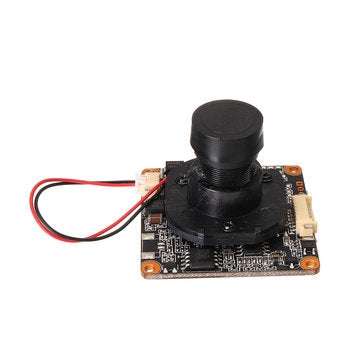

Hardware Structure | MSTAR MSC313E + 200-megapixel 1/2.9 Low-light CMOS S0NY Exmor IMX323 |
Minimum Illumination | Color 0.01 Lux@F1.2, black and white 0.005 Lux@F1.2 |
Wide Dynamic Range | Digital Wide Dynamic |
Signal to Noise Ratio | a50dB |
Image Quality | Saturation setting, contrast setting, sharpness setting, brightness setting, auto white balance, manual white balance setting, backlight compensation setting, strong light suppression setting, auto exposure, 2D/3D noise reduction intensity setting, fog setting , WDR mode strength settings |
Video Features | Masking, OSD Character Overlay, Motion Detect |
Interface | Audio linear input and output. 4x AF zoom lens. |
Coding Format | H.264 Main Profile/High Profile |
H.265/HEVC Main Profile/High Profile |
Image Resolution | 2 million main stream: 1920*1080, 1-20 frames/second |
1.0 million main stream: 1280*720, 1-30 frames/sec |
Substream: 640*480, 640*360, 1-30 frames/sec |
Image Mode | Horizontal flip and vertical flip |
Video Compression Rate | 32Kbps-3.5Mbps continuously adjustable, support CBR / VBR |
Audio Code | G.711A/U audio codec standard, support two-way voice intercom function, support audio and video synchronization |
Network Interface | 10/100M adaptive Ethernet interface, light protection design, Differential mode> 2000V, Common mode> 6000V level |
Protocol Support | Supports HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P network protocols and supports Haikang`s proprietary protocol |
Digital Storage | This feature is not supported at this time. |
Mobile Client | Support Windows Mobile, I0S, Android platform |
