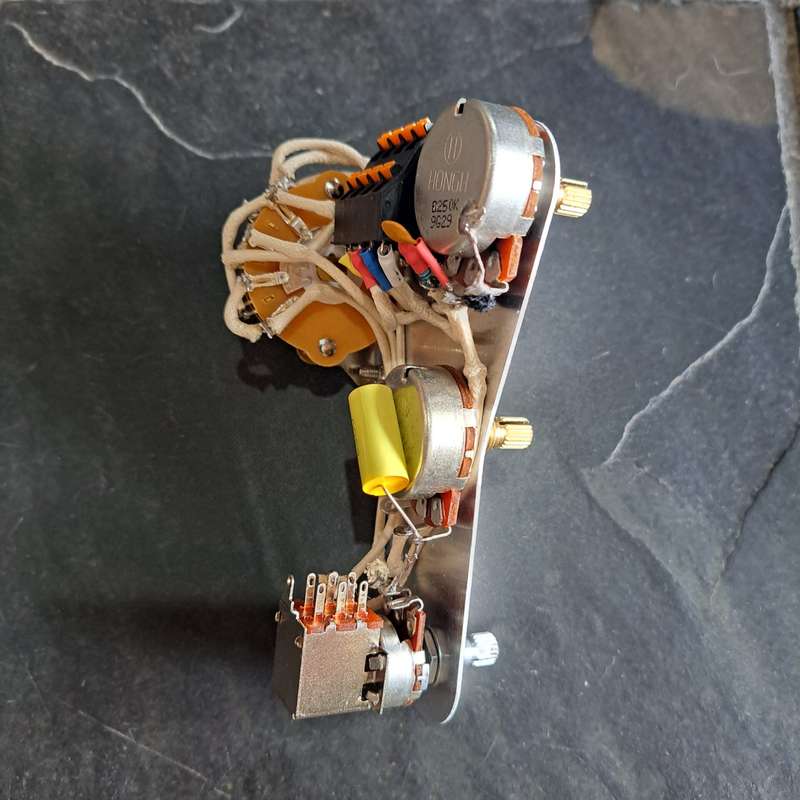

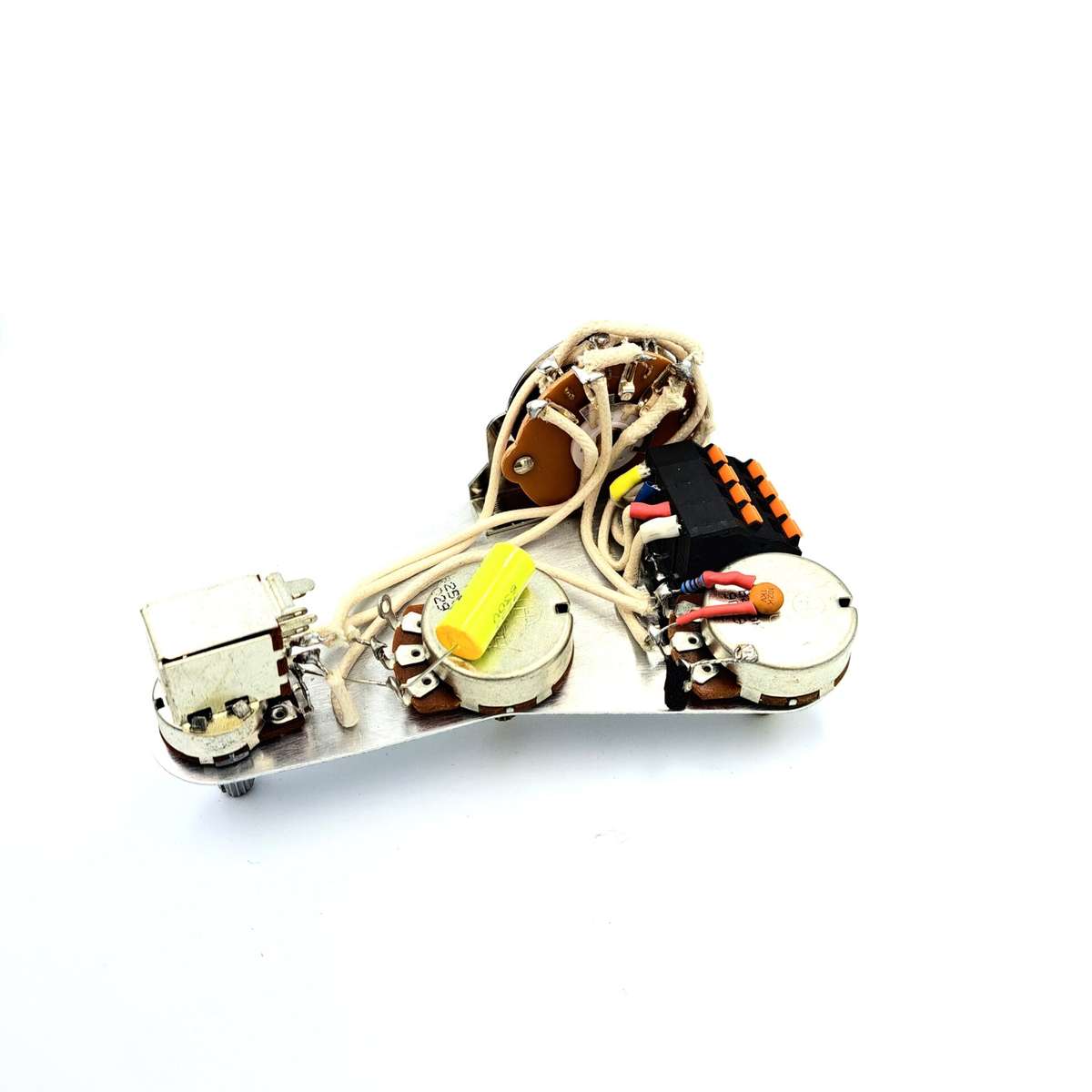

A high quality electronic replacement / upgrade for Stratocaster style guitars with 1 humbucker and 2 single coil pickups.
The coil split mod is used if you have a humbucker pickup and want to split the coil (please make sure you have 4 wires coming from your humbucker and not 2) this can also work with a HSH set up but both humbuckers will be coil split at the same time via the Push Pull pot. There will be a solderless connector for the coil split wires, pickup wires and your output jack next to the switch.
Required body cavity depth for push/pull pot: At least 30mm

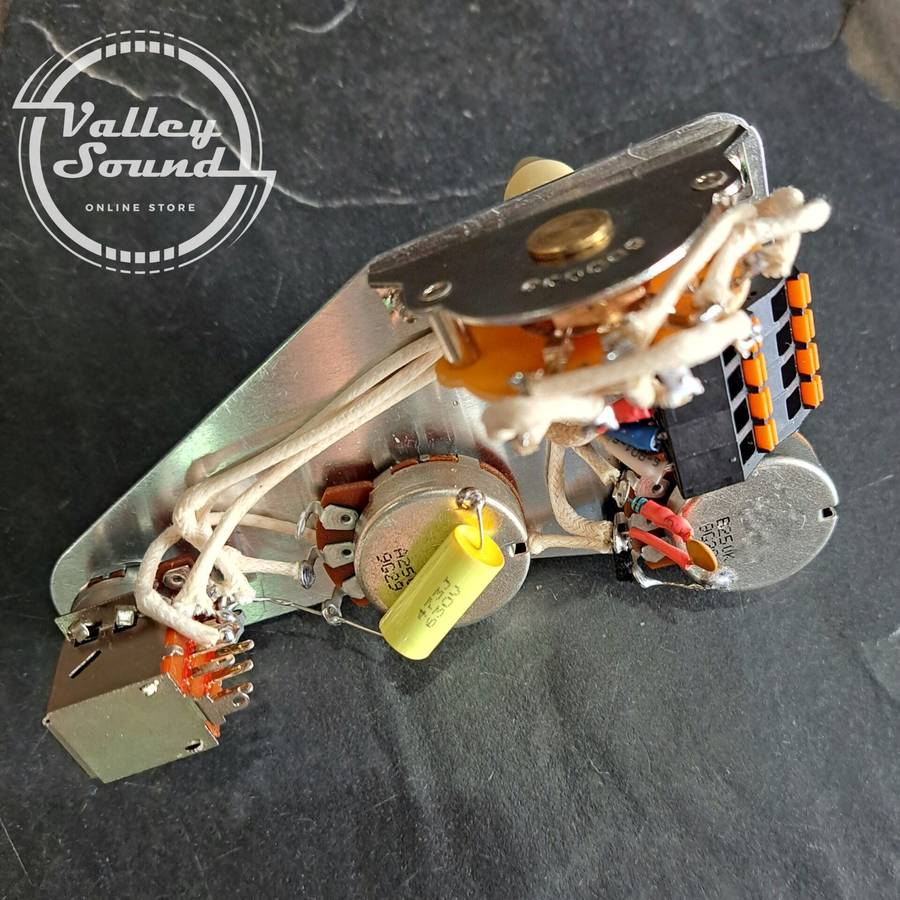

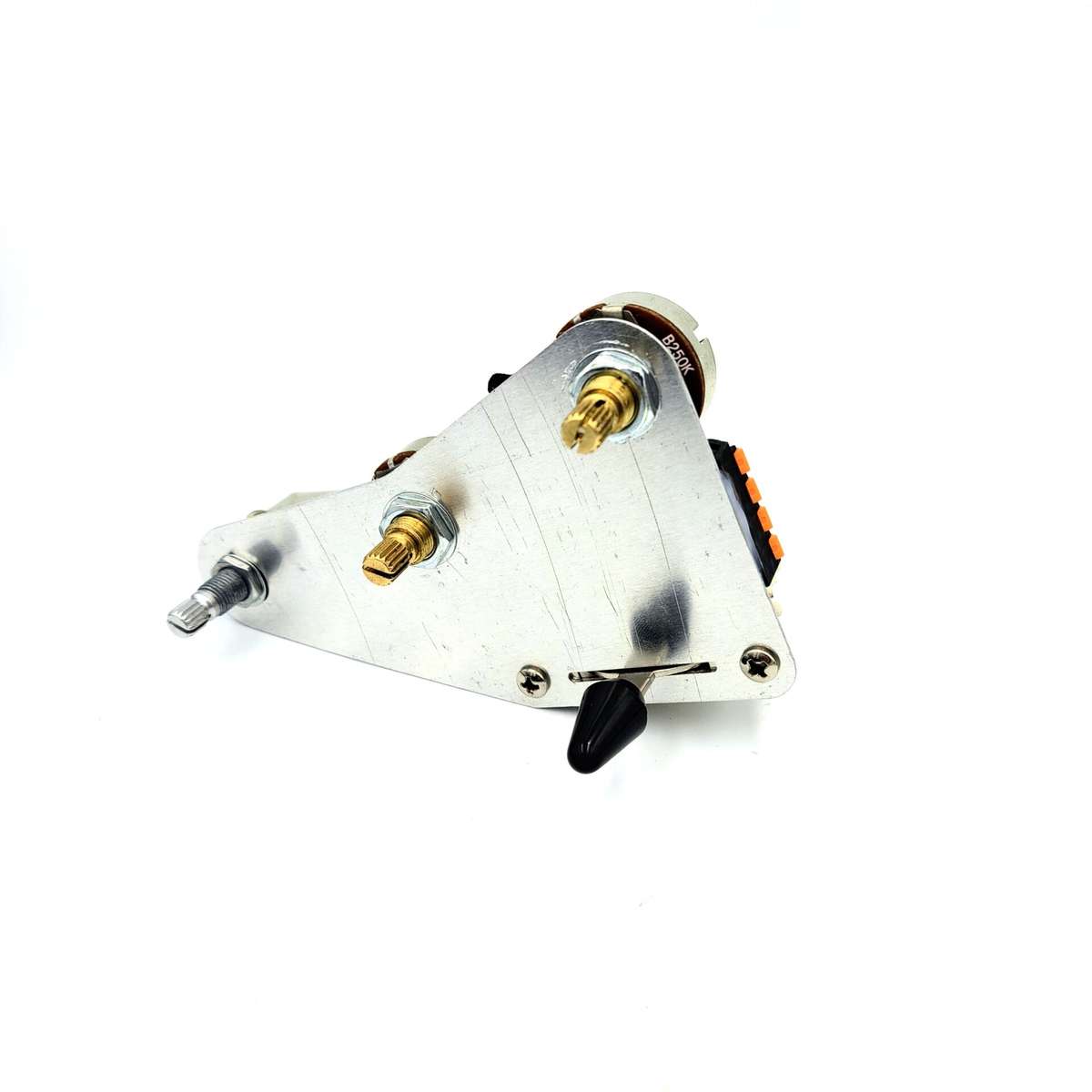

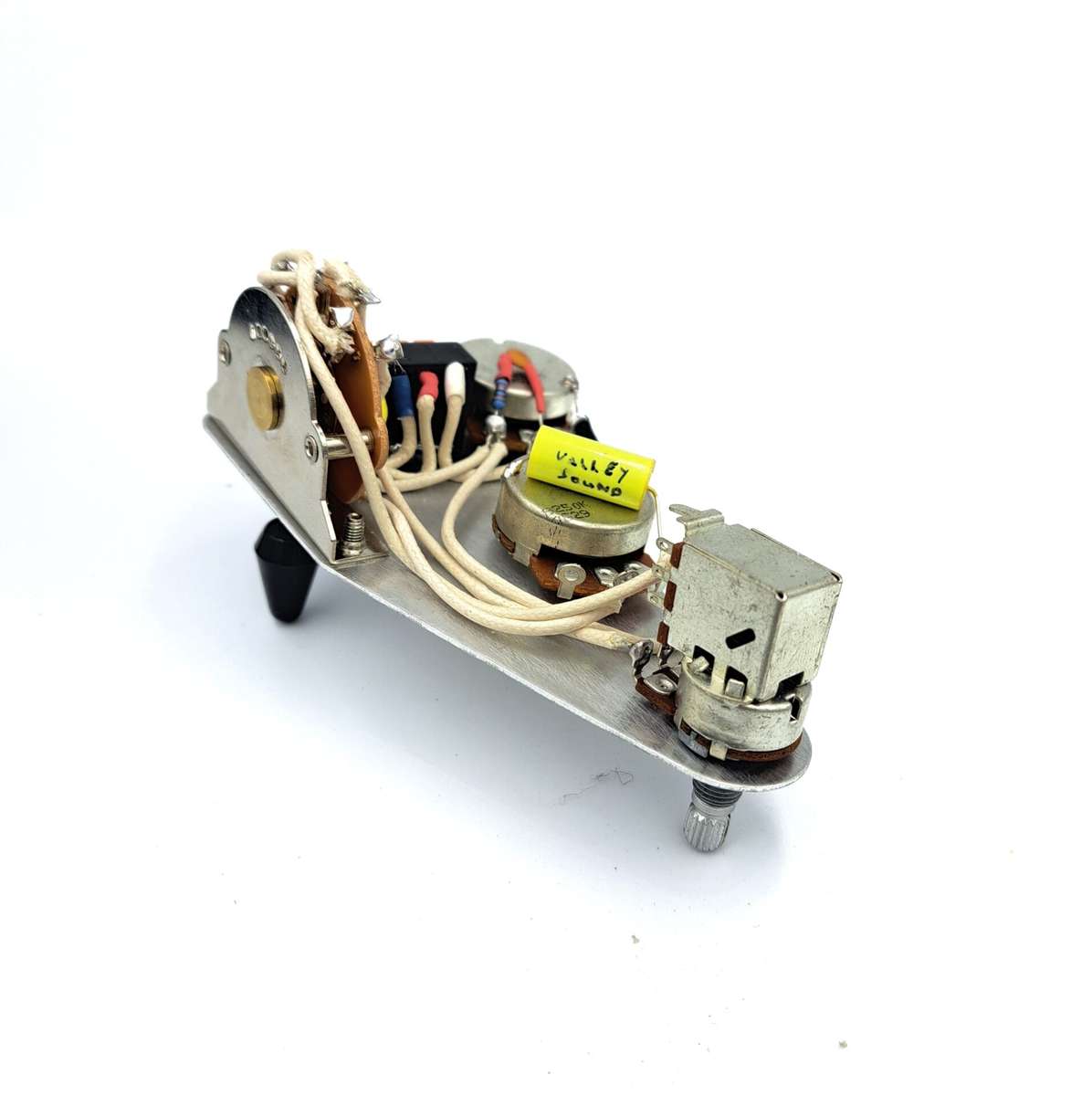

Comes standard with a Karman Vintage Style 5 way switch, Full Sized Brass Shaft Potentiometers. Complete with all electronics soldered with vintage spec cloth wire, neatly wired up and installed on a rigid aluminum grounding plate (helps eliminate electrical noise at the same time) all you need to do is disconnect your pickups and output jack from your old electronic assembly and fit this electronic assembly to your pickguard and reconnect the output jack and pickups to our solderless connector. It is easy to do, the connector is spring activated so you just press on the orange part with a screwdriver, insert the wire and release. All the ground wires go to the bottom terminals (except the bottom under the bridge pickup hot - this is for coil split) and each hot goes to top terminals. They will be colour coded so you know where to put the hot of each component:

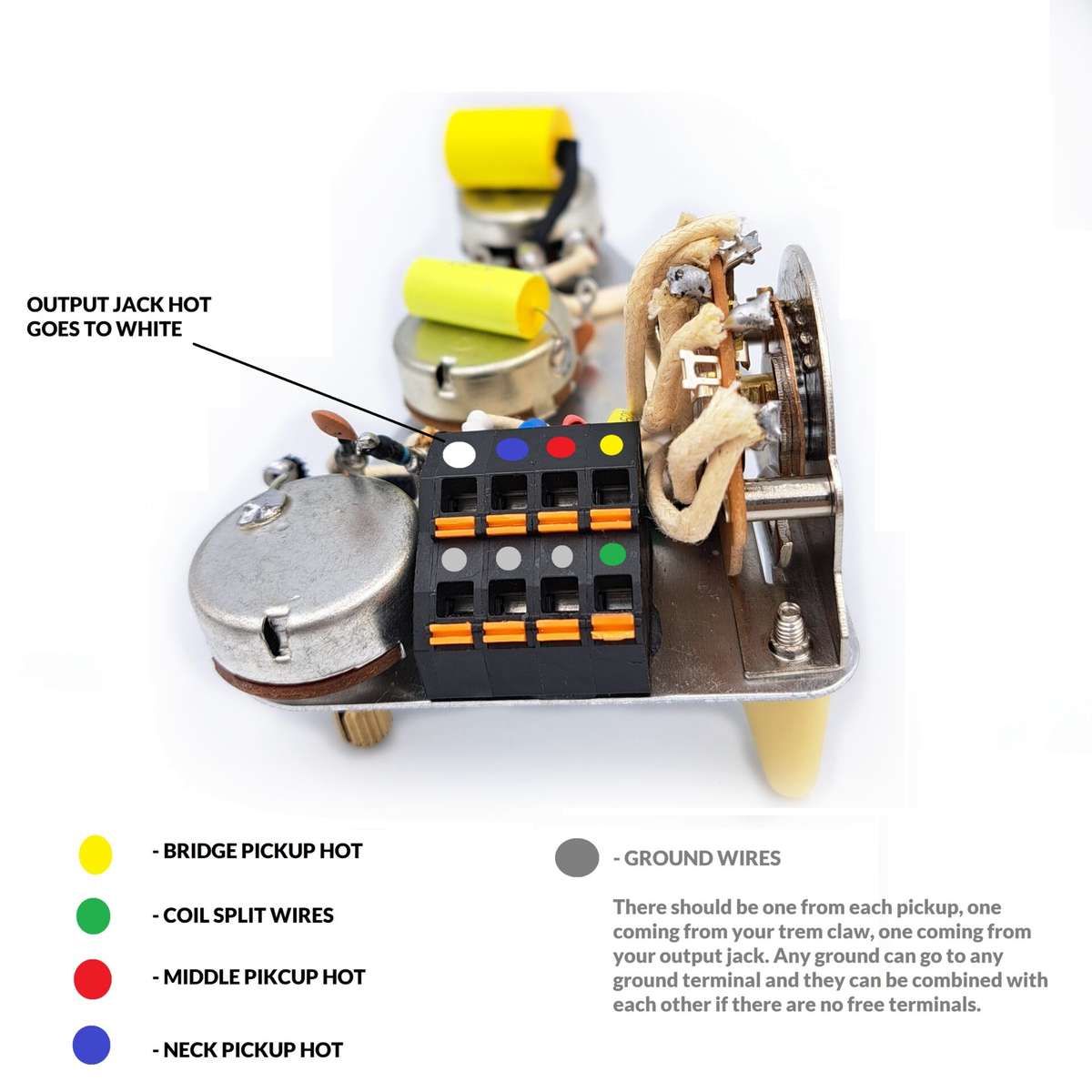

Output jack hot gets connected to the white terminal
Neck pickup to the blue terminal
Middle pickup to the red terminal
Bridge pickup to the yellow terminal
Coil split wires to the terminal bellow yellow
Grounds are the other 3 bottom terminals, if you need to twist grounds together to share a terminal that is fine, it doesnt matter which ground goes to which bottom terminal, they are all connected together.
Please note - You would need to add an extra 24 - 48 hours to the lead time when ordering our prewired pickguards or electronic assemblies as we make them specially for each order. Please order via our Valley Sound website in order to select from these customisable options (alternatively make your purchase then email us your options):
Switch tip colour options:
- Cream
- Black
- White
Potentiometer knobs are not included, please purchase them separately should you require.
Guitars with Humbuckers usually come standard with 500k pots and 0.022uf Capacitor. Single coils usually come standard with 250k Pots and 0.047uf Capacitor. You can select the desired values and tone controll layout from the dropdown list or email us your requirements when ordering from the Valley Sound Website
