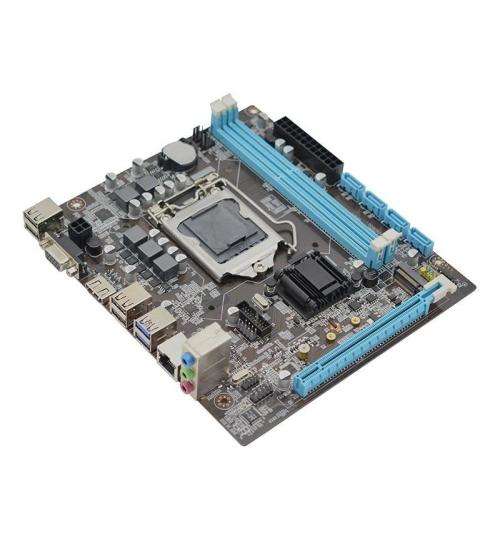

H110 1151 D4 MOTHERBOARD

AFROX H110 1151 D4 MOTHERBOARD - IH110D4-MA2

Supports: Intel 6th, 7th, 8th and 9th Generation (CPU Up to 95 Watts)

Processor: Intel Core  i7/Core i5/Core  i3/Pentium /Celeron Processors

Platform: Intel Socket 1151

FSB: 2133MHz

Chipset: Intel H110 Chipset

Memory Support: Dual Channel DDR4 2133MHz (can use 2400 or 2666, but it will display abnormal)

2 x Memory Slots (Max. Capacity of System Memory 64GB)

Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics Support

LAN: Realtek RTL8105/8106 10/100Mbps Ethernet On Board

Audio: Realtek 662 On Board, Supports 6-channel Audio-Out

IDE: N/A

SATA: 4 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 )

Back Panel I/O Ports:

1 x HDMI Port

1 x D-Sub (VGA) Port

2 x USB 3.0 Ports

4 x USB 2.0 Ports

1 x RJ-45 LAN Port with LED

3 x HD Audio Jack (Line in / Front Speaker / Microphone)

ON-Board Pinheaders / Connectors: 1 x USB 2.0 Pinheader Supports additional 2 x USB 2.0 Ports

1 x USB 3.0 Pinheader Supports additional 2 x USB 3.0 Ports

1 x Front Panel Audio Pinheader

1 x LPC DEBUG

Slots: 1 x PCI Express x16 3.0 Slot

BIOS: UEFI BIOS Form Factor Micro-ATX (17 x 19cm)

Mounting: 4 mounting holes

Accessories:

1 x SATA Cable

1 x I/O Backboard

1 x User Manual

1 x Driver CD
