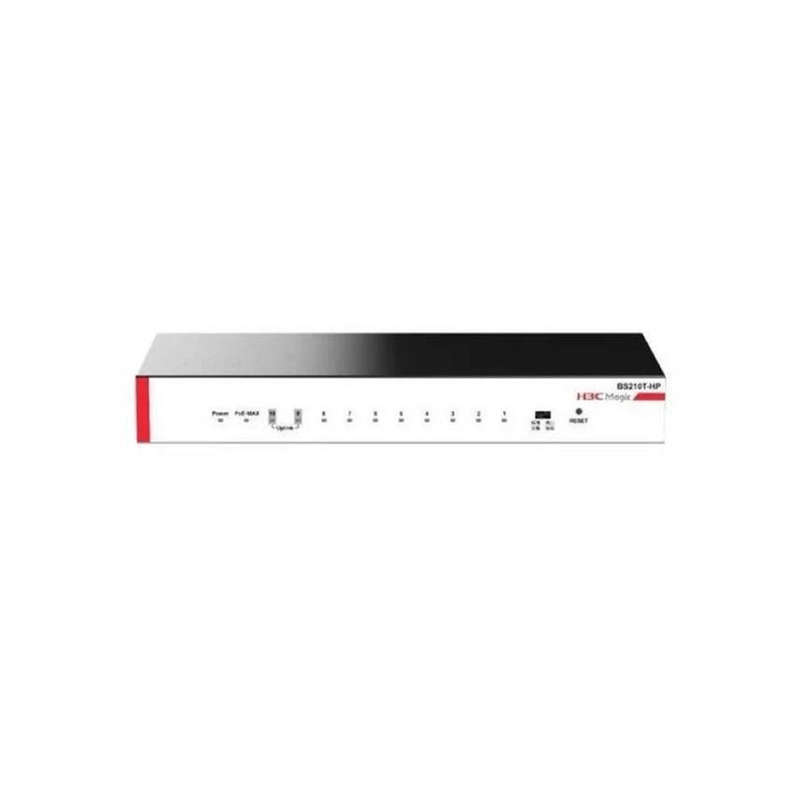

H3C Magic BS210T-HP 10-port Advanced Gigabit POE Ethernet Switch
H3C Magic BS210T-HP is a new generation of Gigabit unmanaged green PoE switch launched by H3C. It is easy to install, provides a rich set of features, and is widely used in small and medium-sized enterprises, commercial chains, hotels, campuses, and other scenarios.
Stable PoE output
The switch supports PoE+ and can provide 110 W PoE output in total, with up to 30 W PoE output per port. With an advanced PoE chip, the switch can provide highly reliable and compatible PoE service.
Multiple working modes
The switch can operate in standard and isolation working modes and supports one-key switching of the working mode.
High performance
With a buffer sharing architecture, the switch multiplies the available buffering space for each port, greatly enhancing the forwarding performance in the event of unexpected and sudden traffic bursts.
High reliability
Integrating enterprise-level lightning protection circuit into the switch protects the switch from lightning strikes and ensures reliable operation of the switch.
Features:
- Operating mode
- Standard
- Isolation
Specifications:
- Dimensions (H W D): 27 205 85 mm (1.06 8.07 3.35 in)
- Ports: 10 10/100/1000BASE-T copper ports
- H3C Magic BS210T-HP
- 10 Ports Gigabit Ethernet
- PoE Switch
- MAC address entries: 4K
- Switching capacity: 20 Gbps
- Forwarding capacity: 14.9 Mpps
- Packet buffering: 2 Mbit
- Switching mode: Store-and-forward switching
- PoE+
- PoE+ supported
- Supports PoE Power up to 110 W for all PoE ports (8 PoE ports)
- Supports PoE Power up to 30 W for each PoE port
- Power: 54 V DC, 2.2 A
- Auto-MDI/MDIX: Yes
- Cooling method: Natural cooling
- Operating temperature/storage temperature
- 0 C to 40 C (32 F to 104 F)/-40 C to +70 C (-40 F to +158 F)
- Operating humidity/storage humidity 5% to 95% RH, noncondensing
- Certifications: CE, RoHS
- MTBF: > 50000 H
- Installation method: Desktop-mount and wall-mount
In the Box:
- 1 x H3C Magic BS210T-HP Ethernet Switch (10GE+PoE, DC)
