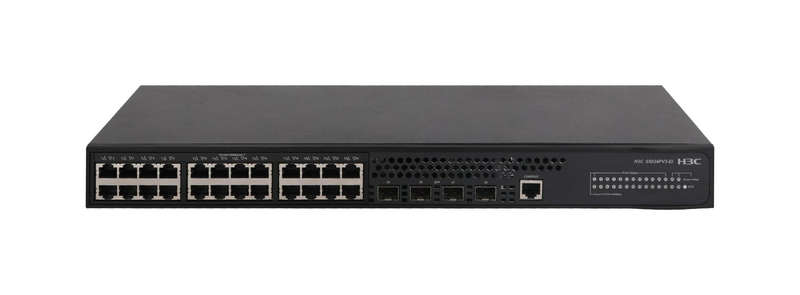

The H3C S5024PV3-EI-HPWR is a high-performance, fully managed Layer 2+ Gigabit switch built for SMB and enterprise access networks. Featuring 24 PoE+ RJ45 ports and 4 Gigabit SFP uplinks, it delivers intelligent traffic control, robust security features, and IPv6 readiness in a compact, rackmount form. With 56 Gbps switching capacity, advanced VLAN support, ACLs, and dual-stack IP routing, it offers a powerful backbone for converged network applications like IP surveillance, VoIP, and wireless APs.
Refurbished and tested for reliability, this switch is an excellent choice for organizations expanding their network with enterprise-grade functionality and PoE+ efficiency.
Key Features & Benefits
24 × Gigabit PoE+ ports for powering IP phones, cameras, and wireless access points
4 × SFP uplinks for high-speed fiber backbone connectivity
Switching capacity of 56 Gbps and full Layer 2/3 feature support
Supports 802.1Q VLANs (up to 4,096), ACLs on IPv4/IPv6, and full QoS control
PoE+ support across all 24 RJ45 ports for simplified deployment
Advanced security with ARP protection, DHCP Snooping, SAVI, and CPU attack prevention
IPv6-ready with dual-stack support, IPv6 ACL, and IPv6 static routing
In-service patch upgrades, port mirroring, and link aggregation for reliability and flexibility
Ideal Uses
Enterprise or SMB access layer with PoE devices like VoIP phones and cameras
Campus deployments requiring VLAN segmentation and fiber uplinks
Secure network environments demanding fine-grained ACL and authentication
Unified networks combining data, voice, and surveillance over a single switch
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: H3C
Model: S5024PV3-EI-HPWR
Product Line: S5000V3-EI Series
Form Factor: Rackmount / Desktop
Ports:
24 × Gigabit Ethernet RJ45 (PoE+)
4 × Gigabit SFP uplink ports
1 × Console port
Switching Capacity: 56 Gbps
MAC Address Table: 8,000 entries
PoE Support: IEEE 802.3af/at All 24 RJ45 ports support PoE+
Management:
CLI via console, Telnet, SSHv2
SNMP v1/v2c/v3, HTTPS, Web GUI
FTP/TFTP/SFTP upgrade, NTP, cluster management
VLAN Support:
802.1Q VLANs (up to 4096)
Protocol, MAC, IP subnet, Guest VLANs
Security Features:
DHCP Snooping
ARP attack protection
802.1x, Radius, HWTACACS
SAVI, DoS prevention, broadcast suppression
SSL, SSHv2, IPv6 authentication
IPv6 Features:
Dual-stack support
IPv6 routing, DHCPv6, ND, PMTU
IPv6 Ping, Telnet, SSH, DNS
QoS:
WRR / HQ-WRR
802.1p / DSCP mapping
Port rate limiting
Aggregation & Redundancy:
Link aggregation (up to 8 ports/group)
Static & dynamic LAG (802.3ad)
STP / RSTP / MSTP
Dimensions (W × D × H): 440 × 260 × 44 mm
Weight: 6 kg
Power Supply: AC 100240V, 50/60Hz
Warranty: 3 Month Carry-in Warranty
What's in the Box:
H3C S5024PV3-EI-HPWR Gigabit PoE+ Managed Switch
