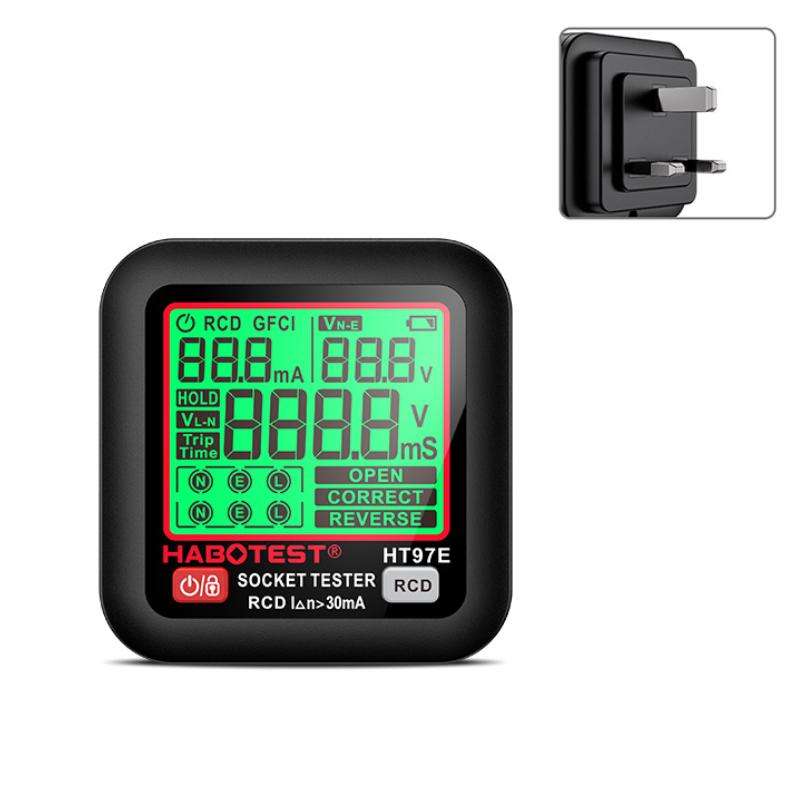

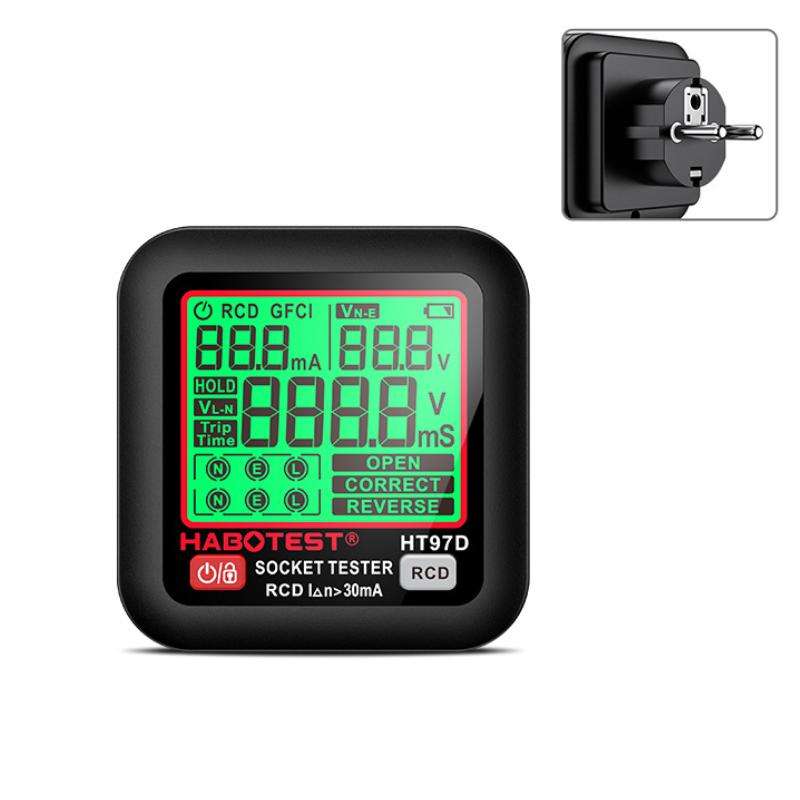

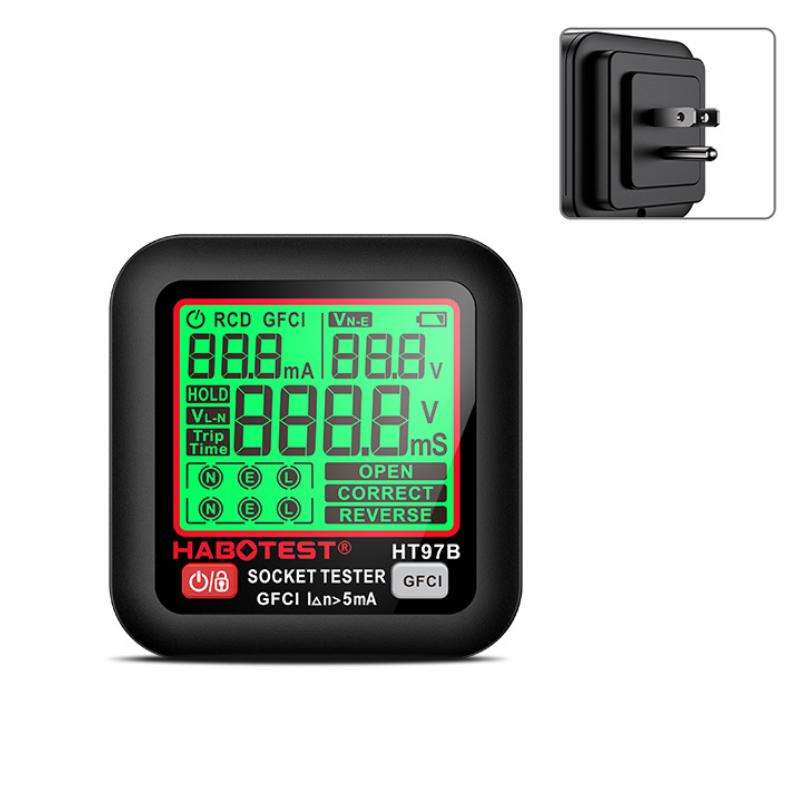

HABOTEST Digital Display Intelligent Electrical Test Socket(HT97B US Plug)

1. Voltage range: AC 30-260V/45-65Hz
2. Leakage voltage range: 0-99V/45-65Hz
3. Test stroke time: 10-1000mS
4. GFCI test: 5mA (HT97B)
5. RCD test: 30mA (HT97D/HT97E)
6. Voltage measurement: 48V-250V/45-65Hz
7. Power supply: two 1.5V AAA Batteries (Batteries not included)
8. Simply plug the tester into a powered three-pin outlet. The on-screen display allows you to easily determine the outlets wiring condition and AC voltage. If a wiring error is detected, the orange backlight will illuminate to indicate the wiring error.
9. After plugging the tester into the outlet, the data will automatically lock after three seconds. Once locked, press the unlock button.
10. Press and hold the RCD button for more than 2 seconds. A properly functioning residual current circuit breaker (RCD) should trip and display the trip time. The button indicator will flash, indicating the tripping process is complete. If it does not trip, the residual current circuit breaker is faulty.
11. The instrument automatically shuts down if no operation is performed within 5 minutes of powering on.
12. Compact and portable, it is easy to operate.
13. The high-definition backlit display ensures clear visibility even in dimly lit environments, making the test results clear and easy to understand.
14. Widely applicable, it can be used to check the safety of outlet wiring in homes, offices, shopping malls, and other locations.
15. Dimensions: HT97B 67x65x63mm; HT97D 67x65x75mm; HT97E 67x65x63mm
16. Weight: HT97B 92g; HT97D 103g; HT97E 103g
